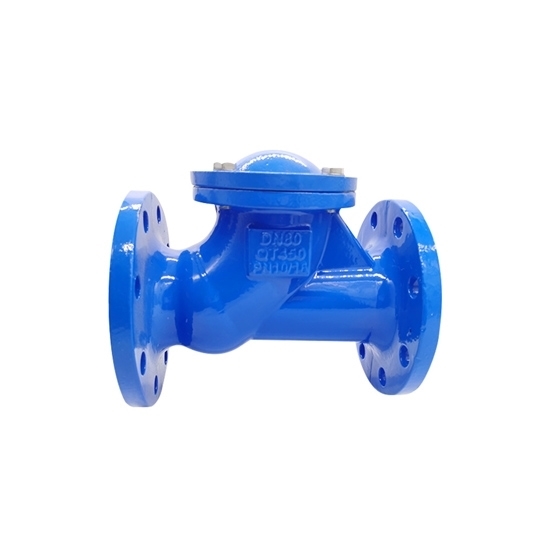

2" Flanged Ball Check Valve

Low price 2"(DN50) flanged ball check valve in ductile iron is designed for high flow rates and low pressure drop, medium temperature 0~80℃, ideal for applications requiring a tight seal and low flow resistance.

Specifications

• Model: ATO-S-HQ41X
• Nominal Diameter: 2 inch/50mm
• Nominal Pressure: 1.0~1.6 Mpa
• Structure Length: 197mm
• Body Material: Ductile Iron
• Connection Form: Flange
• Flange Standard: GB/T 17241.6, GB/T 9113
• Weight: 4.5kg
• Temperature: 0~80℃
• Applicable Medium: Water and Weakly Corrosive Fluids

Installation Diagram

Applications

Ball check valves are commonly used in applications where low flow resistance and reliable backflow prevention are necessary, such as in water treatment plants, pumping systems, and process piping systems. They are often used in situations where the fluid needs to flow in only one direction, such as in fuel lines, chemical processing systems, and air compressors.

Tips: What is a ball check valve?

A ball check valve, also called a ball non-return valve, uses a ball that sits in the flow path. When the flow is in the correct direction, the ball is pushed out of the way and fluid or gas can flow through the valve. When flow is reversed, the ball is forced against its seat and the valve closes. Ball check valves are commonly found in small pipe sizes and low-pressure systems. They are relatively inexpensive and easy to maintain, and they are often used in applications where a low flow rate is sufficient and where space is limited.
