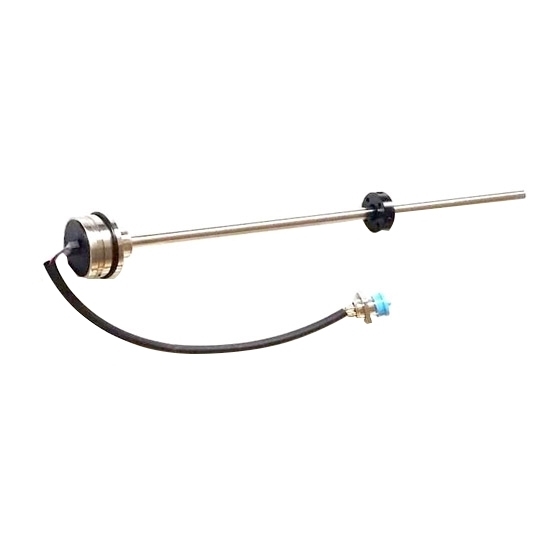

2000mm Magnetostrictive Linear Displacement Sensor for excavator

$1,316.15

Magnetostrictive linear displacement transducer with closed design, suitable for hydraulic cylinder with U-shaped earrings, high precision, non-contact, anti-interference ability, anti-fouling, oil-proof, waterproof, corrosion resistance.

SKU: ATO-MSD-WB2000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Magnetostrictive displacement sensors have effective travel 50mm-2500mm. The length of the buffer area both ends can be defined by the customer. Magnetostrictive displacement sensors can be widely used in mobile machinery, power machinery, construction machinery, etc.

Specification:

Basics	Model	ATO-MSD-WB2000
	Measuring range	0~2000 mm
	Shipping weight	10.5 kg
	Length	2124.3 mm
	Width	48 mm
Technical parameters	Linearity	≤0.03%FS (minimum±50μm)
	Repeatability	≤0. 001%FS
	Working Voltage	24VDC±10%
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0-5V / 0-10v / 4-20mA
	Temperature	- 40℃～+85℃
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
	Electronic bin material	304 or 316L stainless steel (special custom-made)
	Type of lead wire	PG7 connection (waterproof joint); Aviation plug
	Protection Class	IP68 (waterproof joint), IP67 (aviation plug)
	Installation method	Six M6X16
	effective travel in this series (customizable)	50-2500mm

Dimension diagram (unit: mm):

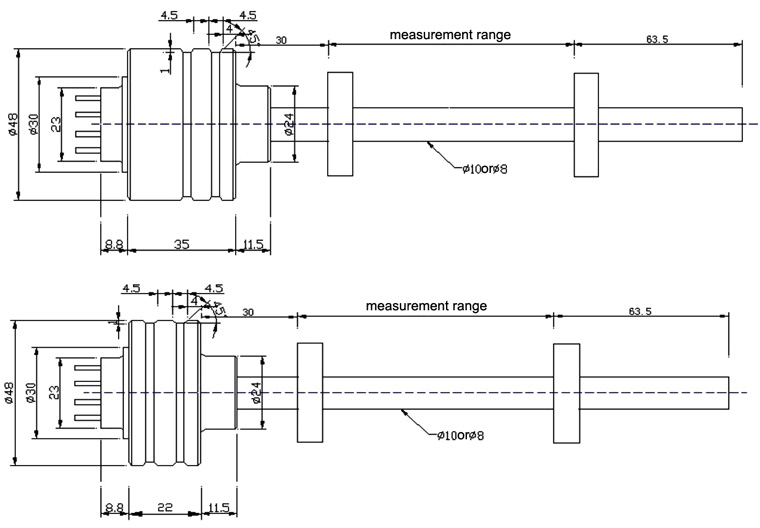

magnetostrictive sensor WB series dimension diagram
Tips: Magnetostrictive sensors for hot rolling line
For metallurgy industry, it's perfect that accurate monitoring of oil cylinder stroke adopts magnetostrictive linear displacement sensor. Built-in linear displacement sensor is assembled inside oil cylinder, also need to assemble magnet ring and magnetic isolating pad on the piston of oil cylinder. Linear displacement sensor could judge the oil cylinder piston position through judging the position of magnet ring on the piston. Give feedback to PLC for the actual operation stroke, constitute a servo hydraulic system, resolution can be up to 0.025mm，then achieve accurate control.
