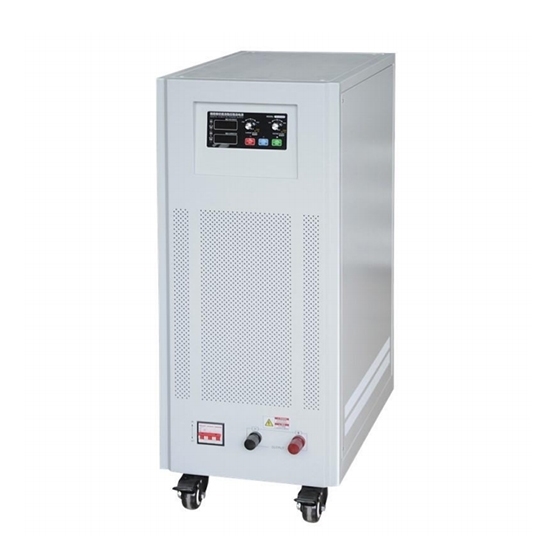

200A 30V 6000W Variable Linear DC Power Supply

$6,021.49

High efficiency 0 to 30 amp, 0 to 200 volt variable linear DC power supply is switching mode with 6000W DC output. Output voltage and current are continuously adjustable at nominal value, with constant voltage (CV) / constant current (CC) output precision. This adjustable and regulated linear DC power provides a stable power source for diverse applications.

Input Voltage *

SKU: ATO-DCPS30200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

30 volt 200 amp variable linear DC power supply caters to a diverse array of applications in electronics, prototyping, and testing. Its linear configuration plays a pivotal role in minimizing output noise, thereby augmenting the stability of interconnected circuits. This adjustable linear DC power supply offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.

Specification

Model	ATO-JK30200S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-200A
Output Power	6000W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.4%＋3d
Voltage Display Resolution	10mV
Current Display Resolution	10mA
Efficiency	>60%
Voltage Regulation
Load Regulation (CV)	1×10^-4+8mV
Line Regulation (CV)	1×10^-4+3mV
Ripple & Noise (P-P)	0.8mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-4+3mV
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Certification	CE, RoSH
Warranty	12 Months
Size	530 (W) x 430 (H) x 200 (D) mm
Weight	170kg
Package List	1 x DC Power Supply Host, 1 x User Manual

Tips: Can I use a variable linear DC power supply for charging batteries?

Yes, you can use a variable linear DC power supply for charging batteries, but it requires careful consideration. Ensure that the power supply voltage matches the battery's charging specifications, and the current output is within the battery's recommended charging current. Linear power supplies are known for stability but may generate more heat during prolonged use. Monitoring the charging process is crucial to prevent overcharging, which can damage the battery. Additionally, some advanced batteries, like lithium-ion batteries, may require specific charging algorithms not provided by basic linear power supplies. In such cases, a dedicated battery charger with the appropriate charging profile is recommended to ensure safe and efficient charging. Always refer to the battery manufacturer's guidelines for proper charging procedures.
