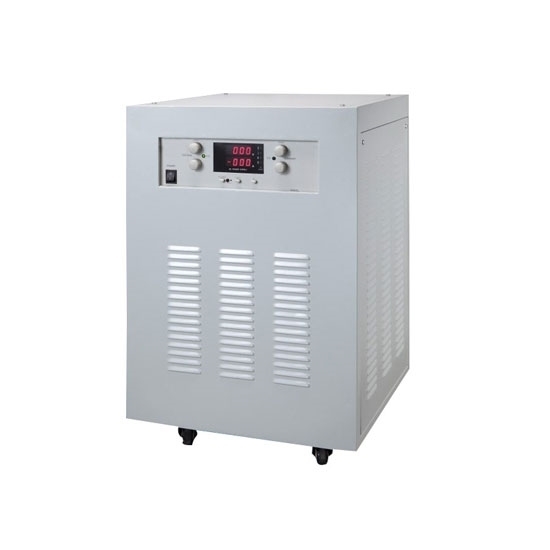

    150A 30V 4500W Variable Linear DC Power Supply

    $5,811.49
    Variable linear DC power supply is switching mode with 4500W DC output, providing adjustable output voltage 0 to 30V and current 0 to 150A, with 110V/220V±10% AC input, constant voltage (CV) / constant current (CC) output precision and high efficiency. The inclusion of digital control enhances accuracy and ease of operation, enabling users to set desired parameters with precision.
    *
    SKU: ATO-DCPS30150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    30 volt 150 amp adjustable and regulated variable linear DC power supply is a crucial unit for electronics enthusiasts and professionals alike. This power source provides precise control over voltage and current, offering flexibility for various electronic applications.

    Specification

    Model ATO-JK30150S
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-30V
    Output Current Range 0-150A
    Output Power 4500W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.1%+2d
    Voltage Display Resolution 100mV
    Current Display Resolution 100mA
    Efficiency >60%
    Voltage Regulation
    Load Regulation (CV) 1×10-3+8mV
    Line Regulation (CV) 1×10-3+3mV
    Ripple & Noise (P-P) 0.5mV
    Temperature Coefficient 300PPm/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-3+3mV
    Temperature Coefficient 500PPm/℃
    Others
    Protection Over Load and Over Voltage Protection
    Recovery Time ≤100µs
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Warranty 12 Months
    Size 480 (W) x 520 (H) x 700 (D) mm
    Weight 130kg
    Package List 1 x DC Power Supply Host, 1 x User Manual

    Tips: Are there any limitations to using a variable linear DC power supply?

    Variable linear DC power supplies have certain limitations. They are typically larger, heavier, and less energy-efficient than their switching counterparts. Linear power supplies dissipate excess voltage as heat, leading to lower efficiency, especially when providing high output voltage or current. Additionally, they may have limited maximum output power. The output voltage regulation may not be as precise, and there can be a risk of voltage fluctuations under varying loads. Linear power supplies might also be more expensive due to the larger transformers and heat sinks required. In comparison to switch-mode power supplies, they may have slower response times and may not be as suitable for certain applications requiring rapid changes in voltage or current.
