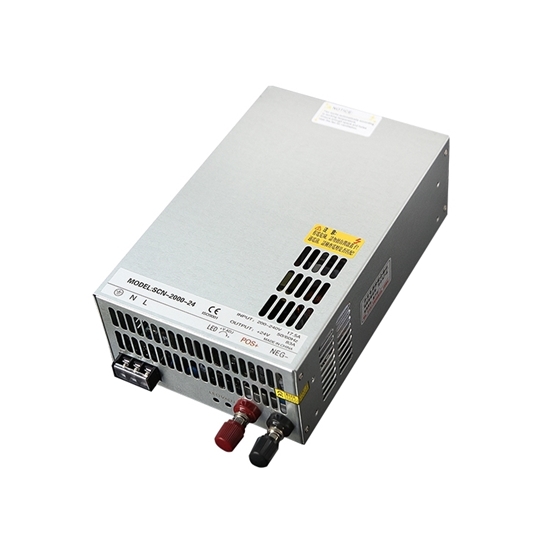

    24V DC 2000W Switching Power Supply

    $350.15
    Best price 2000W 24V DC switching power supply for electronic equipment, LED lighting, industrial control equipment, digital products and instruments and other fields. Wide input voltage range, steady and precise output voltage. With shortage protection, overload protection, over-voltage protection.
    SKU: ATO-SMPS-2000-24
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • 2000W switching power supply has high working efficiency, stable output
    • Exquisite appearance, small size, stable performance
    • Excellent magnetic core enameled wire, high temperature resistance
    • Iron-silicon aluminum magnetic ring, lower working temperature
    • Highly efficient heat dissipation, low fan noise
    • High voltage resistance, low loss, high capacity

    Specification

    Model ATO-MS-2000-24
    Output
    DC Voltage 24V
    Rated Current 83A
    Rated Power 2000W
    Ripple & Noise 150mVp-p
    Voltage Accuracy ±1%
    Voltage Adjustment Range ±10%
    Load Adjustment Rate <±0.5%
    Line Adjustment Rate <±0.5%
    Input Voltage Range 176~264VAC; 254~370VDC
    Frequency Range 47~63Hz
    Efficiency (Typ.) 85.5%
    AC Current 220VAC, 8A
    Inrush Current 60A 230VAC
    Setup, Rise, Holdup Time 200ms, 50ms, 20ms: 230V AC
    Protection Overload 105~135% rated output power
    Protection type: Constant current limiting, recovers automatically after fault condition is removed.
    Over temperature RTH3: Fan is always running, ≥90°C output shut down.
    Environment Working Temperature -10 ~ +50℃
    Working Humidity 20~90% RH
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH
    Safety & EMC Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
    Leakage Current I/P-O/P, <6mA at 1.5kVAC; <1.5mA at 220VAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
    Others Dimension 260*160*88mm (L*W*H)
    Weight 3.0kg

    SMPS Power Supply Application

    • Power Tools
      Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
    • Offices Devices
      Computer, Printer, LCD Monitor, Scanning Machine, etc.
    • Electrics & Household Appliance
      TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
    • Industrial Equipemnt
      Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

    Tips: How to choose a switching power supply

    Types of switching power supplies: Understand your needs and confirm the type of input and output terminals, whether you need AC to DC, DC to DC, or DC to AC.

    Select the switching power supply with appropriate power: In order to improve the reliability of the system, it is recommended that the switching power supply actually work at 50%-80% load, that is, the switching power supply with about 30% more output power is selected. For example, if the power is 20W, a switching power supply with an output power of 25W-40W should be selected. If the load is a motor or capacitive load, these loads will have a certain impact on the power supply when the load is turned on. In this case, the power should be larger or a specific switching power supply with an inductive load should be selected.
