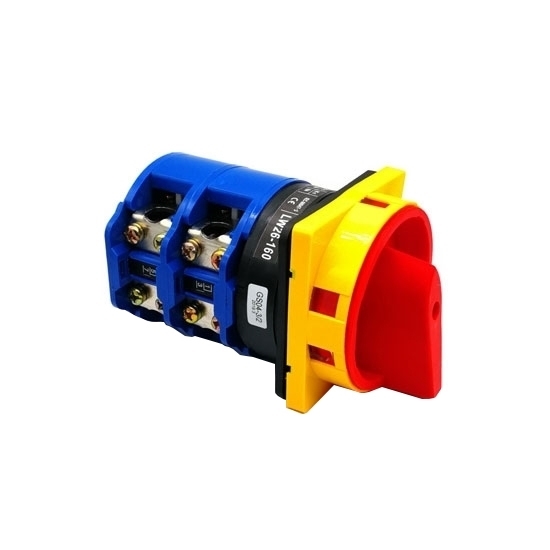

2 Position 25A Rotary Switch, 4 Pole

5 out of 5 based on 1 reviews | Write a review

$61.53

Buy cheap price rotary cam switch, 2 position, 4 pole, 25 Amp rated current, rotary switch is mainly used for the conversion of various control lines, voltmeter, ammeter commutation measurement control, distribution device line conversion and remote control.

SKU: ATO-LW26GS25

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

2 position 4 pole Rotary switches rated voltage 440V, it can be used to directly control the start, speed and commutation of small capacity motors, manufacturer direct sales.

Specification:

Model		ATO-LW26GS25
Rated Voltage		440V
Rated Thermal Current		25A
Rated Working Current	AC-21	25A
	AC-22	25A
	AC-23	22A
Pole		4 Pole
Position		2 Position
Rated Power		11 kW
Escutcheon Plate		M2
Dimension	A	64
	C	45.2
	L	51
	H	42
	E	48
	F	48
	D1	φ10
	D2	φ4.5
Ambient Temperature		-25℃-40℃
Altitude		≤2000m
Humidity		≤50%

Dimensions (Unit=mm)
25A 4 Pole M2 Panel

Tips: Rotary switch maintenance

1. When the rotary switch is powered off, it will stop the auxiliary isolation first, then stop the main isolation.
2. Check the gas concentration before opening the cover. After opening the cover, check whether the cable of the wiring chamber is tight and whether there is any debris in the switch cavity; handle the explosion-proof surface of the switch.
3. The upper cover: restore the shift, switch power supply.
4. Perform a protection test on the rotary switch. Use appropriate tools and proper methods of operation during the inspection.

Existing reviews of 2 Position 25A Rotary Switch, 4 Pole

Fit perfectly

Excellent product! Worked well as a replacement for a broken 22 MM switch in a lathe. It works as intended. Easy to install and very well made. I'm happy with my purchase, the plastic housing feels very protective and resistant. Exactly what I expected.

From: wje | Date: 21/04/2022

Was this review helpful? Yes No (0/0)
