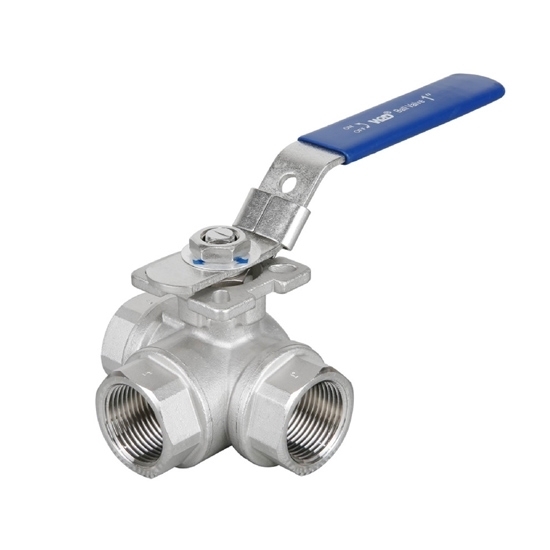

3/4 inch Stainless Steel 3 Way Ball Valve, T Port/L Port

The provided 3/4 inch (DN20) ball valve is a stainless steel 3 way ball valve, with an optional L port and T port, BSP, BSPT and NPT thread standard and SS 304/316 material. Low maintenance three way ball valve can provide an efficient way to control fluid flow in chemical and industrial applications.

Specifications

• Model: ATO-Q14/15F-63/1000WOG(C/P/R)
• Size: 3/4 inch (20mm)
• Connection Method: Thread
• Threaded Ends: BSP, BSPT, NPT
• Port: T Port/L Port
• Mounting Pad: ISO5211
• Working Pressure: 6.3MPa, 1000PSI
• Temperature Range: -20℃～180℃
• Weight: About 0.74kg (T), 0.79kg (L)
• Material: 304/316 Stainless Steel

Dimension (Unit: mm)

Main Part Materials

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: Why choose a stainless steel ball valve?

• Corrosion resistance: Stainless steel is highly resistant to corrosion, making it ideal for use in environments where the valve may be exposed to corrosive materials or liquids.
• Durability: Stainless steel is a strong and durable material that can withstand high temperatures, pressure, and wear and tear, making it suitable for use in harsh industrial environments.
• Easy to clean: Stainless steel surfaces are easy to clean and maintain, making them ideal for applications in the food and beverage industry where cleanliness is important.
• Chemical resistance: Stainless steel is highly resistant to chemicals, acids, and solvents, making it ideal for use in chemical processing applications.
• Hygienic: Stainless steel is non-porous and does not harbor bacteria, making it ideal for use in applications where cleanliness and hygiene are critical, such as in the pharmaceutical industry.
• Aesthetics: Stainless steel has an attractive, modern look that can enhance the appearance of a valve and add to the overall design of the system.
