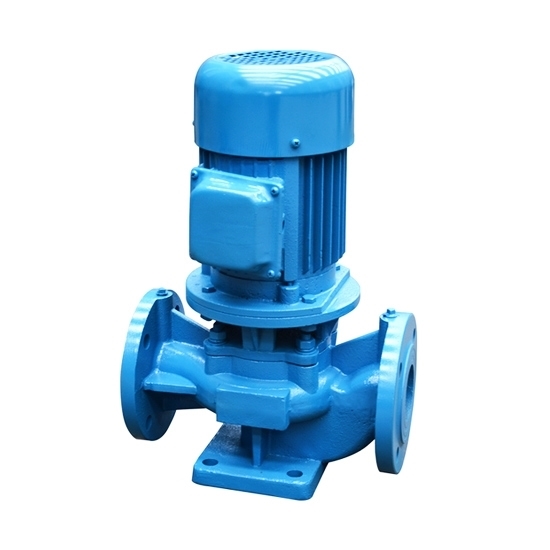

    3 hp Vertical Centrifugal Pump, Single Stage

    High-quality 3 hp vertical centrifugal pump can be used for pipeline pressurization of the production lines, cooling tower water supply, the pressurization water supply of high-rise buildings, fire water and air conditioning system. The low-cost 3-phase centrifugal pump has optional input voltage AC 220V~480V at input frequency 50Hz/60Hz, maximum flow of 8.3m3/h, 33m (108ft) maximum lift and the same diameter of inlet and outlet of 40mm.
    SKU: ATO-VCP-2200W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a 3 hp vertical centrifugal pump online. It features 8.3m3/h maximum flow, 33m maximum head and 40mm diameter of inlet and outlet, which can be used for pipeline pressurization of the production lines, cooling tower water supply, fire water and air conditioning system.


    • The centrifugal pump has a vertical structure, and its inlet and outlet have the same diameter. The inlet and outlet are on the same centerline so that they can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
    • Easy to install and maintain. There is no need to dismantle the piping system, just remove the connecting flat nut of the vertical pump. All rotor parts can then be removed.
    • The vertical pump can be installed vertically or horizontally according to the requirements of the piping system.
    • Vertical centrifugal pumps can be run in series or in parallel according to the requirements of flow and head.


    • Model: ATO-VCP-40-160
    • Power: 3 hp (2.2kW)
    • Number of stages: Single stage
    • Input voltage: AC 220V~480V
    • Input frequency: 50Hz/60Hz
    • Inlet diameter: 40mm (1-1/2 inch)
    • Outlet diameter: 40mm (1-1/2 inch)
    • Flow (min. flow to max. flow): 4.4m3/h (19.4 gpm), 6.3m3/h (27.7 gpm), 8.3m3/h (36.5 gpm)
    • Head (max. head to min. head): 33m (108ft), 32m (105ft), 30m (98ft)
    • Efficiency: 35%, 40%, 40%
    • Installation mode: Vertical type or horizontal type
    • Nominal diameter of impeller: 160mm
    • Size: 320*270*490mm
    • Weight: 75kg

    Vertical centrifugal pump dimension (unit: mm):

    Vertical centrifugal pump dimensional drawing

    Boundary dimension L B H C1*B1
    320 270 490 100*150
    Installation dimension A C2*B2 4-Φd1
    90 60*100 4-Φ14
    Flange dimension D D1 n-φd
    φ115 φ110 4-φ18

    Tips: Analysis of the low operating efficiency of the centrifugal pump

    The loss of liquid flowing through the impeller includes mechanical losses, flow losses, and leakage losses, and the corresponding efficiency of the centrifugal pump is divided into mechanical efficiency, hydraulic efficiency, and volumetric efficiency. The mechanical loss includes wheel dropping losses consumed because of the friction between the impeller wheel cap, outer side and the liquid, the friction losses between the bearing and stuffing box and the leakage losses. The leakage losses include the leakage losses at the impeller sealing ring site and interstage and axial force balance mechanism.

    Most of its losses are converted into heat, which shall be absorbed by the fluid afterward.

    Low pipeline efficiency: When the conveyed liquid has changes in flow rate or head, the most common treatment means is to regulate the valve. Although this method is convenient, it still has many disadvantages because it will bring great losses to the pipeline resistance, thus enabling the centrifugal pump to operate under the low-efficiency status.

    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months
