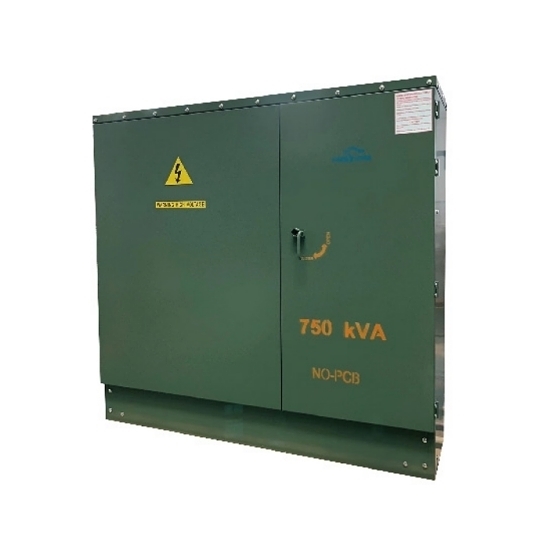

3 Phase Pad Mounted Distribution Transformer

Note: Capacity, primary voltage, secondary voltage, and certification requirements are customizable. Please contact us for more details.

Built for flexible distribution systems, this pad mounted distribution transformer supports both loop-feed and radial-feed configurations. Featuring high-voltage fault protection and low-voltage overload protection, it improves operational safety in various applications. Specifications can be tailored to different project needs. Customize your distribution transformer for efficient and dependable power distribution.

Specification

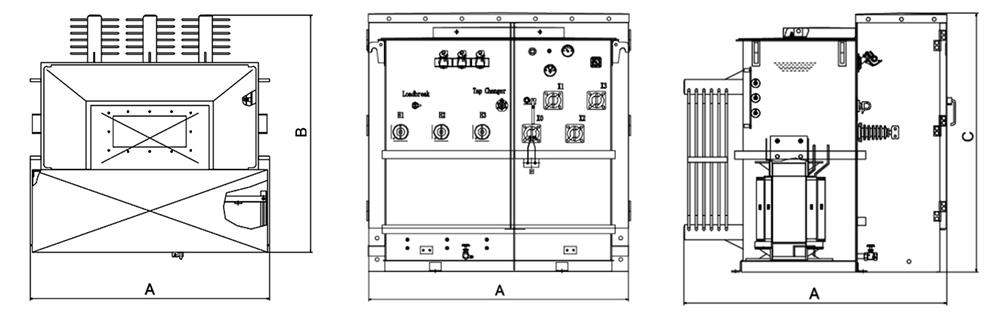

Dimension (unit: mm)

Typical Dimensions and Weights (C.R.G.O Core)

Note: The above date is only subject to our standard design, special reqirement can be customized.

Features

1. Flexible High-Voltage Connection: Designed with insert bushings and bushing wells on the high-voltage side, the transformer allows safe and convenient cable connection and maintenance. Both loop-feed and radial-feed configurations are available to accommodate different power distribution requirements.
2. Comprehensive Protection System: The high-voltage side is equipped with a bay-o-net fuse combined with a sensing fuse or isolation link to provide effective fault protection. On the low-voltage side, a secondary circuit breaker offers reliable overload protection, helping safeguard both the distribution transformer and connected equipment.
3. Energy-Efficient Performance: Utilizing a high-quality core construction, the 3 phase distribution transformer delivers low operating noise and reduced energy losses, contributing to improved efficiency.
4. Compact Design: this pad mounted distribution transformer features a compact structure and small footprint for easy transportation and installation. Its hermetically sealed construction ensures safe operation, and enhances overall reliability.
5. Complete Accessory Configuration: The transformer can be equipped with a variety of practical accessories, including a pressure relief valve, oil level indicator, oil filling valve, tap changer, and load switch, providing convenient operation, monitoring, and maintenance throughout its service life.

Application

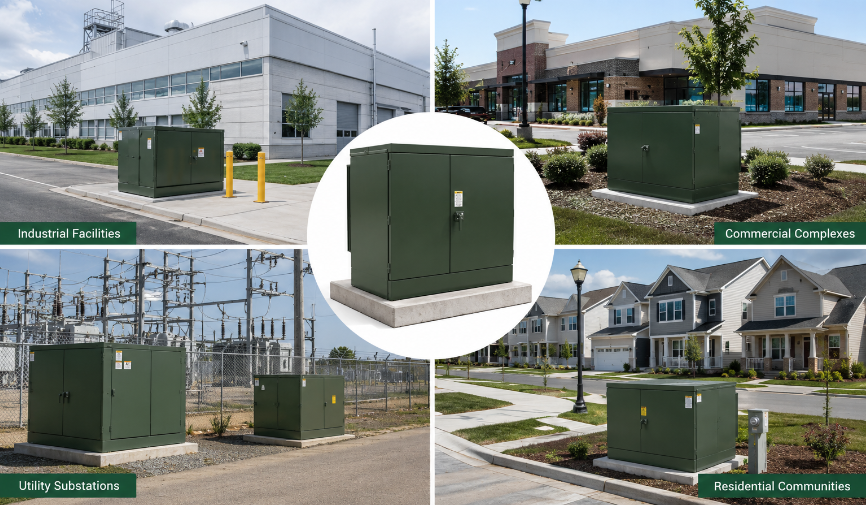

The 3 phase pad mounted distribution transformer is widely used in industrial facilities, commercial complexes, utility distribution networks, and residential communities. Its compact, weather-resistant design provides safe and reliable power distribution for a variety of outdoor applications.

Tips: What is the difference between pole mounted and pad mounted distribution transformers?

Pad mounted distribution transformers are installed at ground level in a locked, tamper-resistant enclosure and are typically used in underground power distribution systems. They offer enhanced safety, better protection against environmental exposure, and easier maintenance access in urban, residential, and commercial areas. In contrast, pole mounted distribution transformers are installed on utility poles and are mainly used in overhead distribution networks, especially in rural or less densely populated areas where ground space is limited.
