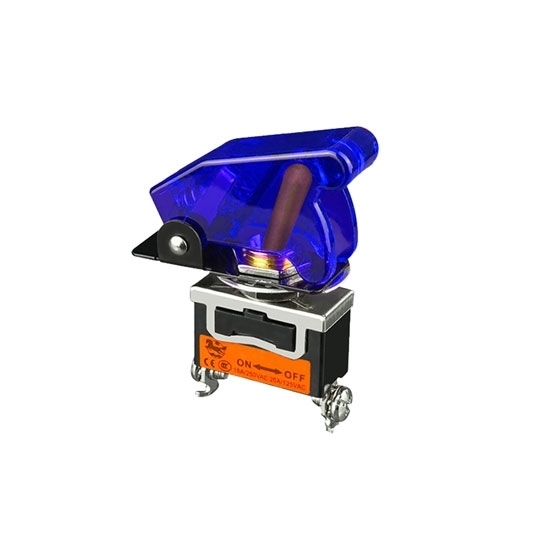

    3 Pin Covered Toggle Switch

    5 out of 5 based on 1 reviews | Write a review
    Single pole on off toggle switch, blue safety cover prevents accidental start, 12mm panel mounting hole size, 3 pin, easy to install, good waterproof effect, strong and durable, widely used in cars, RVs, ships and off-road vehicles.
    SKU: ATO-TS-HKS1202
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Sell 3 pin toggle switch with blue safety cover, single pole 2 position, hole diameter 12mm, on/off switch, waterproof and corrosion resistant, suitable for auto parts.


    Model ATO-TS-HKS1202
    Withstand Voltage AC 1500V/min
    Pin 3 pin
    Type Single pole 2 position
    Operating Force 2-10N
    Use lifetime >10000 cycles
    Cover Stainless steel
    Contact Angle Brass
    Operating Temperature -25℃~85℃
    Contact Resistance ≤0.02
    Insulation Resistance ≥1000
    Socket Brass
    Warranty 12 Months
    Weight 36g

    3 Pin Toggle Switch Dimension (unit: mm)

    Toggle switch dimension Covered toggle switch dimension

    Tips: Toggle switch working principle

    In manual operation, the switch action can be divided into two stages. The first stage is to pull the trigger to the middle by hand until the trigger is in the vertical position. At this time, the pointed top of the single-pole slider gradually moves closer to the middle, and further compresses the compression spring. After the trigger passes the vertical position, the single-pole slider moves quickly in the other direction under the pressure of the compression spring, and drives the trigger to turn quickly. The contact pin is quickly connected, this is the second stage. At this time, the separation speed of the contact is related to factors such as the pressure of the compression spring and the friction between the moving parts, and the speed is very high. According to the test, the time from the disconnection of the contact to the reconnection is only about milliseconds, and the average speed is up to milliseconds. This speed is many times faster than manual pull speed or motor test pull speed.
