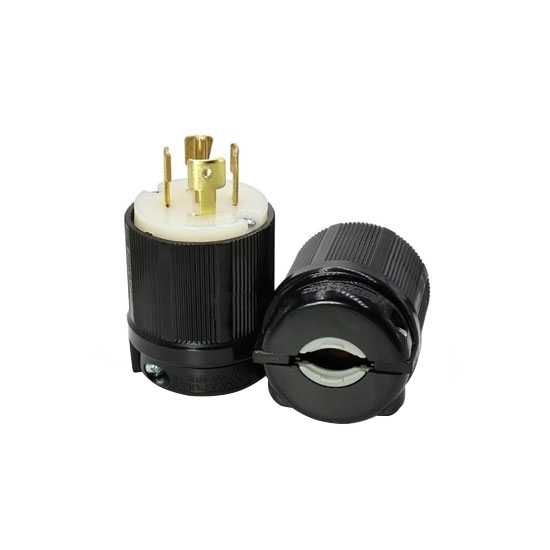

    30A 347V/ 600V Locking Plug, 4 Pole 5 Wire

    5 out of 5 based on 1 reviews | Write a review
    $59.99
    30 amp 347V/600V 4-prong electrical locking plug with thermoplastic back cover, designed with black-beige color and super tough nylon, selectable male plug and female plug. It is commercial application and manufacturer direct sale.
    *
    SKU: ATO-LP23-30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Heavy duty twist locking plug is good to use and install. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

    Specification

    Model ATO-LP23-30
    Plug Type NEMA L23-30 Plug
    Materials Nylon and full copper
    Certifications UL/ CSA/ CUL
    Rated Voltage 347V/ 600V
    Rated Current 30 Amp
    Wiring & Connecting 4 Pole 5 Wire
    Terminal Clamp Material 0.08" (2) steel-nickel plated
    Terminal Screw Material 10-32 Brass white finish on neutral screw when use
    Ground Screw Material 10-32 Brass (green finish), multi-device
    Dielectric Voltage Withstand 18000V minimum
    Current Interrupting Certified for current interrupt at full rate current
    Temperature Resistant Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
    Operating Temperatures Maximum continuous 75℃ minimum -40℃ (w/o impact)
    Terminal Identification 14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)



    Purchase Guide

    In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

    Existing reviews of 30A 347V/ 600V Locking Plug, 4 Pole 5 Wire
    Well designed.
    This was exactly what I needed to connect the wires on my automotive lift to my generator. This locking plug was not a cheap flimsy Plug with connections that easily stripped. I would recommend this plug for any applications where this type of plug is needed.
    From: Vernon | Date: 28/06/2022
