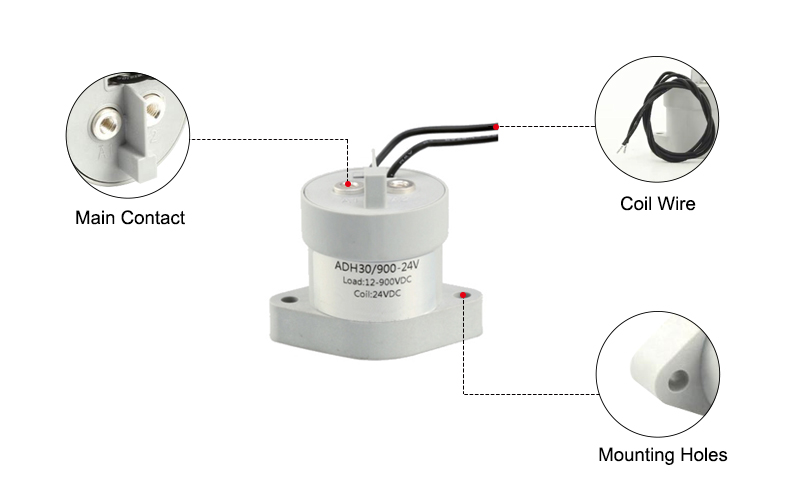

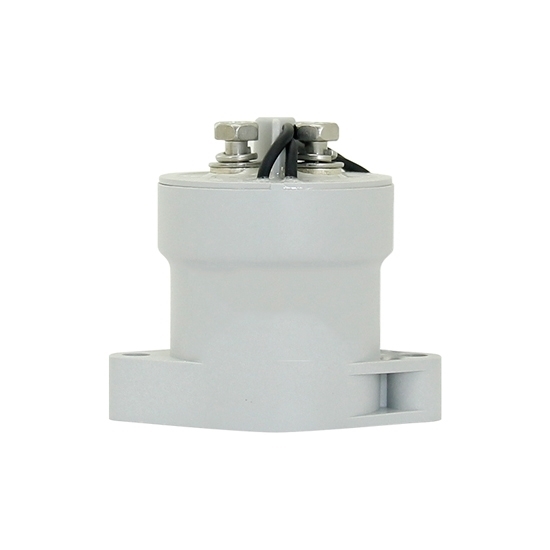

    30A High Voltage DC Contactor, 12V/24V coil
    Picture of 30A High Voltage DC Contactor, 12V/24V coil
    Picture of 30A High Voltage DC Contactor, 12V/24V coil
    Picture of 30A High Voltage DC Contactor, 12V/24V coil
    Picture of 30A High Voltage DC Contactor, 12V/24V coil

    30A High Voltage DC Contactor, 12V/24V coil

    5 out of 5 based on 4 reviews | Write a review
    $87.23
    Cheap Price DC contactor relay, normally open (SPST-NO) type, 30 amps rated load current of contact circuit, available with 12V or 24V coils. Magnetic contactor is widely used in the DC 12-900V high voltage field, offers exceptional performance in an extremely small and lightweight device.
    *
    SKU: ATO-DCCON-HV30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Features

    • 30A DC contactor adopts high-strength epoxy resin sealing with nitrogen-based gas filling, eliminating arc leakage risks, preventing contact oxidation, and ensuring safe operation without fire or explosion during its service life.
    • It provides reliable performance with 30A continuous current at 85℃, IP67 contact protection, insulation resistance up to 100MΩ (1000V DC), and dielectric strength of 2.2kV between contacts and coil.
    • High voltage DC contactor meets IEC 60664-1, GB/T14048.1, GB/T14048.4 standards, complies with RoHS (2015/863/EU) and REACH (1907/2006/EC), and is certified by CE, CCC, and RoHS.

    Specifications

    Model ATO-ADH-30
    Main Contact Specification
    Contact Arrangement 1K (1NO)
    Contact Polarity Non-polarity
    Contact Resistance ≤0.5mΩ (at 200A)
    Max. Switching Voltage 1,000V DC
    Max. Breaking Current 250A (320V DC) 1 Ops
    Electrical Endurance (Resistive Load) 10,000 Ops (1,500V DC, 30A)
    6,000 Ops (1,000V DC, 50A)
    20,000 Ops (750V DC, 30A)
    25,000 Ops (450V DC, 30A)
    Mechanical Endurance 300,000 Ops
    Withstand Current 30A, Continuous
    45A, 60min
    60A, 20min
    120A, 30s
    Performance Parameter (at 23℃)
    Pickup Voltage See Coil Parameter Tables
    Dropout Voltage See Coil Parameter Tables
    Pickup Time ≤30ms
    Contact Bounce Period ≤5ms
    Dropout Time ≤10ms
    Dielectric Strength Between Main Contacts 10,000V DC 10s
    Between Main Contact and Coil 3,500V DC 1min
    Insulation Resistance Initial State 1,000MΩ
    After Electrical Life 50MΩ 1min
    Shock Stability 20g (Power On)
    Strength 50g
    Vibration 10g, 10~500Hz, 1/2 Sine Wave (Power On)
    Relative Humidity 5%~95%RH
    Temperature -40℃~85℃
    Load Terminal M4 Internal Thread
    Weight About 115g
    Dimension 51.7x36x46mm
    Auxiliary Contact Parameter
    Aux. Contact Arrangement /
    Aux. Contact Rated Current /
    Aux. Contact Max. Breaking Voltage /


    Coil Parameter

    Coil Voltage Pickup Voltage (VDC) Dropout Voltage (VDC) Coil Resistance Coil Power Consumption
    12V ≤70%Us 5-40%Us ≤0.33A ≤5W
    24V ≤70%Us 5-40%Us ≤0.17A ≤5W
    36V ≤70%Us 5-40%Us ≤0.12A ≤5W
    48V ≤70%Us 5-40%Us ≤0.09A ≤5W
    60V ≤70%Us 5-40%Us ≤0.07A ≤5W
    72V ≤70%Us 5-40%Us ≤0.06A ≤5W


    Dimension (Unit: mm)

    30A high voltage DC contactor dimension

    Wiring Diagram

    30A high voltage dc contactor wiring diagram

    Tips: Reasons for the contacts of contactor being unable to close after powering on

    1. Power supply circuit of the coil shorts.
    2. Coil circuit breaks.
    3. Coil's control voltage is too low.
    4. The contactor's coil has burnt out, thermal deformation of coil skeleton makes the iron core
    5. unable to be sucked to a proper place, thus the contact can't close.
    6. Adhesion of main contact.
    7. A foreign body or hard spots in the armature.
    8. Main contact dislocates (mainly for large contactor, bridge type contact).
    9. Auxiliary contact is not well installed.


    Electromagnetic Switches: Relays VS. Contactors

    In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

    Existing reviews of 30A High Voltage DC Contactor, 12V/24V coil
    Will the contactor work well with a load of 12-900V DC?
    Thank you for your response.
    Can you clarify further, please?
    Will the device work well with a load of 12-900V DC, and will it work for AC loads as well? Is there a range on what voltage load I can use with AC?
    For example, would it work with a 220V AC load as well as a 120V AC load? Additionally, the main contact has female M5 threading.
    Does the bolt come with the product, or would one need to buy one separately?
    From: reut | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The device can work normally with a load of 12-900V DC, the rated load voltage range is 12-900V DC, it cannot work with 220V AC load and 120V AC load.
    The main contacts do not have female M5 threads, and the fixing bolts need to be purchased additionally.
    The control end needs to use a DC power supply, and the load end can use an AC load, and the device can work under 120V AC and 220VAC loads.
    Could DC contactor handle 120V AC?
    I am looking at the 30A High Voltage DC contactor, 12V/24V coil.
    I would like to know if this device can handle AC loads.
    I see that the device is rated for 12-900V DC. Could it handle 120V AC?
    All amps will be well below 30A.
    From: janaya | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our 30A High Voltage DC contactor can withstand 120V AC.
    The coil voltage can be selected from 12/24V.
    Questions about 30A high voltage DC contactor
    Is your 30A high voltage DC contactor driven with DC or PWM? Are both coils driven from 1 input, or are the 2 inputs separate?
    From: Sandie | Date: 07/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our DC contactor is DC driven, and 1 coil controls 1NO contact.
    Provide 30A high voltage DC contactor with 12V/24V coil
    I found a suitable factory-use in the ATO.com online store. 24V coils is what I need, and the coil connection method is also very convenient. We use it in the DC high voltage field to provide excellent performance in a lightweight device.
    From: Sarah | Date: 25/02/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
