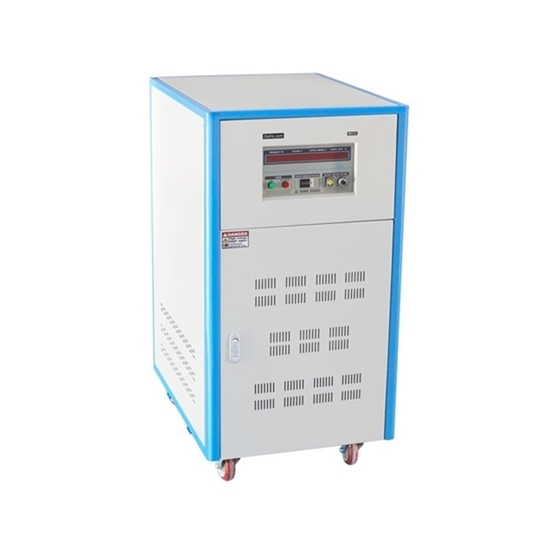

30kVA Single Phase 120v 60Hz to 240v 50Hz Converter

5 out of 5 based on 3 reviews | Write a review

$8,759.13

30 kVA pure sine wave AC power frequency converter, single phase 110V/120V/220V/230V/240V input, single phase 0V to 300V output, convert 50Hz power to 60Hz for household appliances, 400Hz for aircraft.

SKU: HZ-50-1130

Input Voltage (Single Phase) *

Output Frequency *

50Hz/60Hz
400Hz [+$299.00]

Qty:

Delivery date: 6-12 days

Overview

30 kVA single phase frequency converter, make your appliances compatible with international power systems, change single phase 240V 50Hz to 120V 60Hz (vice versa) in one step by inner step up & step down transformer.

Specification:

Model	HZ-50-1130
Capacity	30 kVA
Dimension	7705801140mm
Weight	270 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 250A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 125A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: When the output is 400Hz, the load capacity can only reach 50% of the rated capacity; When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Tips: Maintenance method of the frequency converter

Ensure correct voltage control, conduct sequence protective action test.
Pay attention to clean thoroughly the dust in the cooling air duct and air filter.
Ensure that the balance of the output voltage during the separate operation of the frequency converter meets the standard.
Guarantee the protection and display loop of the frequency converter to have no abnormal condition.
Conduct one regular inspection of the frequency converter equipment every year.
Inspect if there is any loose screw spike, plugin and other equipment components.
Measure the waveform of the driving circuit to check if there is any distortion, if the UVW phase waveform is the sine wave.
If it is allowed, the oscilloscope can be used to measure the stability of the switching power supply output voltage.
It is required to wipe the conductor and insulator with alcohol in time, so as to ensure the cleaning degree.

Existing reviews of 30kVA Single Phase 120v 60Hz to 240v 50Hz Converter

Recommend suitable products according to my needs

Hi, i need a converter to 230V 50Hz to 110V 60Hz, the power is 5Kw, thank you.

From: Jgarze | Date: 25/07/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Based on your specs, recommended frequency converter model: HZ-50-1110, 10kVA power capacity, input: 1ph, 230V (+/- 10%), 50/60Hz and output: 1ph (L,N,G), adjustable ( 0-150V), adjustable (40-120Hz), 83.2A.
See specs, price, and you can order online by credit card or though PayPal on: http://www.gohz.com/10kva-frequency-converter

High quality frequency converter

We are looking for a frequency and voltage converter. We need a 480 VAC 60Hz input and a 400 VAC 50Hz output. Our load is 10A. Approx 7A electronics, and the remaining 3A if for different small motors. What do you recommend?

From: Chase | Date: 24/08/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Based on your specs, recommended frequency converter model: HZ-50-3320, 20kVA power capacity, input: 3ph, Wye (L1,L2,L3 + N,G), 480V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1,L2,L3 + N,G), adjustable (0-520V), adjustable (40-120Hz), 27.8A.

Please tell me about the frequency converter

Good afternoon, I’m looking to see if you make a large 300kVA frequency converter, 480V 3PH 60Hz Input – 400V 3PH 50Hz output. Pricing for a bid due next Wednesday 5/5. Please let me know.

From: Syracuse | Date: 14/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can.
Converter specs:
Model: HZ-50-33300, 300kVA power capacity, input: 3ph, Wye (L1, L2, L3 + N, G), 480V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta ( L1, L2, L3 + N, G), adjustable (0-520V), adjustable (40-120Hz), 416.6A.
Price: 57500USD
Shipping cost: 5025.5USD.
Delivery time: Approx 28 days.
See attached specs.
Important Hint: Regarding your application load type, in case of induction loads like motor-based and transformer, please mind the inrush current of the load/motor during starting up should be less than the converter's output rated current (416.6A).
Clarification: When the motor starts to spin up, it pulls high inrush current that may reach 6 times its rated value and lasts from few milliseconds to 1-3 seconds unless the motor is attached to starting controller like soft starter or VFD.
Also, some other loads have high inrush current like transformers, electronic amplifier (tube amplifier), a circuit board with several capacitors and the capacitor.
