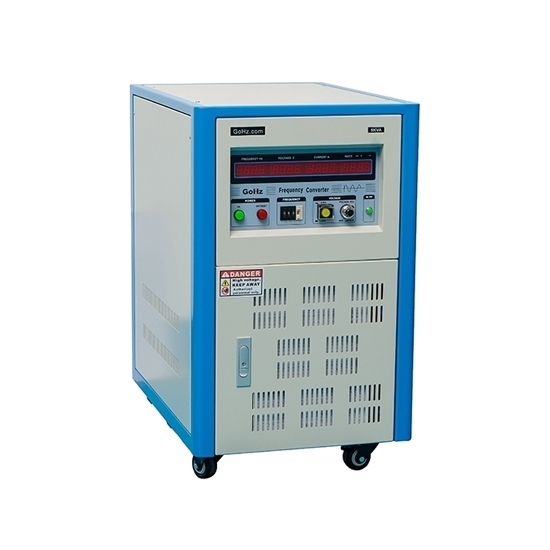

5kVA Single Phase 110v 60Hz to 220v 50Hz Converter

4.7 out of 5 based on 12 reviews | Write a review

$3,109.30

5 kVA static pure sine wave frequency converter, change 1 phase 110V 60 Hz (e.g. Philippines) to 220V 50 Hz (e.g. China) in one step by built in step up transformer, also convert 230V, 240V 50Hz to 120V 60Hz, adjustable output voltage (0V to 300V) and frequency (40Hz to 400Hz).

Input Voltage (Single Phase) *

Output Frequency *

50Hz/60Hz
400Hz [+$199.00]

SKU: HZ-50-1105

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

5 kVA frequency converter/AC power source, 50Hz 60Hz 400Hz frequency regulator, convert fixed frequency & voltage to variable frequency & voltage for international appliances compatibility.

Specification:

Model	HZ-50-1105
Capacity	5 kVA
Dimension	550 (D)400 (W)670 (H) mm
Weight	75 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 41.6A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 20.8A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Wiring and Testing a Single Cabinet Frequency Converter

Here is a video about the operating steps of the cabinet frequency converter. It gives a rundown of how to wire and test a single cabinet frequency converter using a multimeter.

Tips: Which voltage in 120V and 220V is better?

Everyone knows that the power grids in many countries are different. For example, the voltage in China is 220V 50Hz; the American standard is 120V 60Hz; Japan has the voltage of 100V 50/60Hz. The different electricity grid is mainly caused by historical reasons. With unchanged power capacity, the current of 110V voltage is two times of that of 220V, the sectional area of the conductor used is also bigger, the amount of consumed copper or aluminum is also more. A higher voltage leads to a lower line loss. A lower voltage results in a higher security, but greater line loss.

MOS Tube Testing in a Frequency Converter

In this video, we first show you the internal structure of our frequency converter, so that you know the exact location of the MOS tube in the converter, and then we use a multimeter to test these tubes in diode mode and ohm range respectively. In the process, we also explain to you how to judge the condition of the equipment.

Frequency Converter Troubleshooting: CBB65 Capacitor Testing

This video will walk you through the steps of how to test the CBB65 capacitor in a frequency converter using a multimeter.

Frequency Converter Driver Board Test

This is one of the ATO single-phase frequency converter repair tutorial series. In this video, we show you how to simply test the driver board in the variable frequency power supply using a multimeter.

Pre-maintenance preparation of frequency converters

In this presentation, we show you the maintenance preparation procedure for an ATO single-phase frequency converter (cabinet version), specifically, involving the disconnection of the internal bridge rectifier.

Cabinet Frequency Converter Wiring and Testing

This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter. ATO provides a wide range of high quality single and three phase frequency converter available in rack-mounting and cabinet styles. Rated capacity ranges from 500VA/1kVA/2kVA to 200kVA. In addition to the typical frequency conversion between 50Hz and 60Hz, our converters also provide the maximum output frquency of 400Hz, tailored to various industrial application requirements.

Frequency Converter 60Hz to 50Hz Operation Demo

This video is a brief demo of on-site operation of ATO 1-phase frequency converters that are able to convert 110V 60Hz to 230V 50Hz or vice versa. Besides, we also provide versions of 120V 60Hz to 220v 50Hz, 220V 50Hz to 110V 60Hz, 240V 50Hz to 120V 60Hz for option.

Existing reviews of 5kVA Single Phase 110v 60Hz to 220v 50Hz Converter

Variation from 45 to 65hz and 100 to 230V from france

Hello,
I'm located in France, so I have a 230V 50Hz electrical network.
I'm looking for a solution to generate a voltage ranging from 100V to 230V and vary the frequency from 45Hz to 65Hz.
Do I necessarily need the 400Hz option to vary the frequency, or is this already possible with the 50/60Hz option? What would the variation range be?
I look forward to hearing from you.

From: Mickael | Date: 19/03/2025
