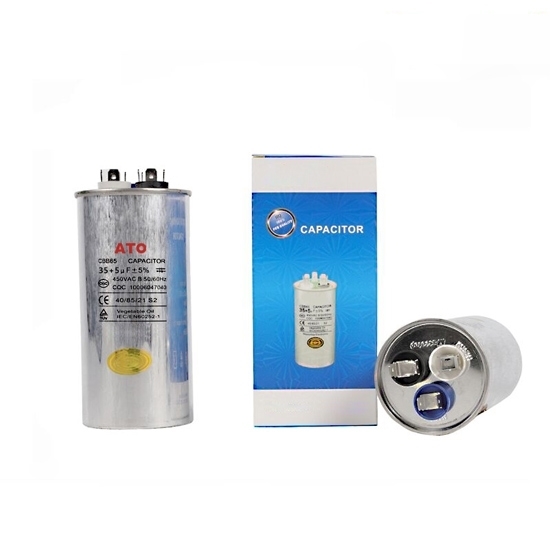

35/5 MFD Air Conditioner Capacitor, Dual Run Capacitor

5 out of 5 based on 5 reviews | Write a review
$8.57
35+5 mfd air conditioner capacitor for sale online. Low price HVAC capacitor has a dual run capacitor, which is helpful for motors starting and running. 450V high voltage capacitor provides the initial jolt of electricity your air conditioner’s motors need to run. Buy an air conditioner capacitor with the inner anti-explosion device for greater safety and reliability.
SKU: ATO-ACC-001
This product has a minimum quantity of 20
30-day Returns
Free Shipping
Delivery date: 20-30 days

Low cost air conditioner capacitor is an HVAC capacitor that helps the motor start and run. The capacitance of a capacitor is 35/5 mfd. 450V high voltage capacitor is available. It works with a dual-run capacitor and provides the initial jolt of electricity your air conditioner’s motors need to run.

Features and applications

35+5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. ATO air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: ATO-CBB65-355
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

35/5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 105mm)

Air conditioner capacitor dimensions

Tips: What can air conditioning capacitors do?

The capacitor is the key to starting the air conditioner motor. Most air conditioners now use capacitors to start and run the air conditioner. The damage to the capacitor will cause the current to rise rapidly when the compressor starts, automatically turn on the protection mode to stop or fail to start the compressor, which will make the air conditioner unable to operate normally or automatically power off during the startup process. In the process of starting and electrifying the air conditioner, the capacitor acts as conduction, helping the compressor to start normally.
