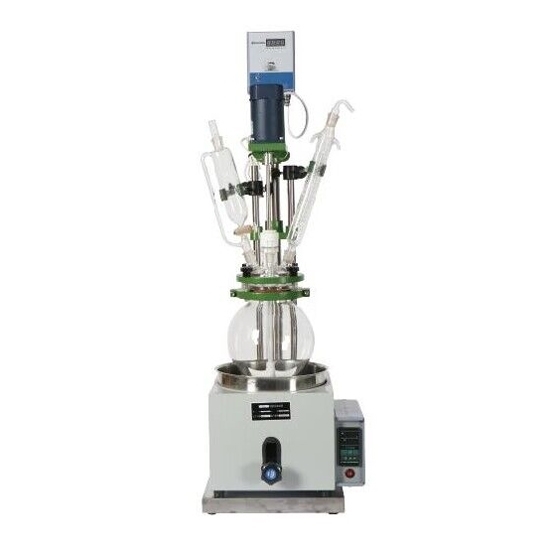

    3L Single Layer Glass Reactor

    5 out of 5 based on 1 reviews | Write a review
    Low cost 3L single layer glass reactors are equipped with efficient heating and cooling systems to ensure fast and precise temperature control. With its advanced features and compact design, the small-sized single layer glass reactor is widely used in the pharmaceutical, chemical, and petrochemical industries.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3L single layer glass reactor is equipped with an advanced stirring mechanism that ensures uniform mixing and optimal mass transfer to promote efficient reactions and produce excellent product quality. High quality single layer glass reactors are suitable for a wide range of applications including chemical synthesis, pharmaceutical research, materials testing and more.


    Model ATO-LSR-3
    Effective Volume in the Kettle 3L
    Condenser Heat Exchange Area 0.1 m2
    Constant Pressure Funnel Volume 0.25L
    Recovery Head Volume 0.25L
    Glass Component Material High borosilicate 3.3
    Main Frame Material SUS304
    Working Temperature -80~200°C
    Pressure in Kettle -0.098 Mpa
    Stirring Motor Power 90W
    Speed Control Mode Electronic speed control
    Speed Adjustment Range 0~1000 rpm
    Seal Material Fluorine rubber
    Heating Method Bath heating
    Power Supply 220V~240V
    Frequency 50/60HZ, 1P
    Dimension 1140*470*470mm
    Weight 40kg


    • 1L single-layer glass reactor adopts new high borosilicate glass, which has excellent stability and corrosion resistance.
    • Digital display frequency conversion speed control, stirring speed can be adjusted, and temperature control is accurate.
    • Single-layer glass reactor assembly adopts fluorine rubber seal to maintain the high precision seal under working conditions.
    • Modular design, easy to assemble, easy to upgrade and maintain.
    • Stainless steel frame, good stability.
    • Single-layer glass reactors can be customized according to customer requirements.


    The glass-lined reactor finds application in various industries, serving as a versatile vessel for chemical reactions and processes due to its corrosion resistance and thermal stability. It is widely employed in the pharmaceutical, petrochemical, and food industries, among others.

    Glass lined reactor applications

    Tips: What are the types of glass-lined reactors?

    Glass-Lined Jacketed Reactor: This type of reactor consists of a glass-lined vessel (the main body) and a jacket surrounding it. The vessel is made of a high-quality glass lining, typically composed of a layer of glass fused to a metal substrate, such as steel. The jacket provides a space for the circulation of a heating or cooling medium, such as steam, hot water, or chilled water, to control the temperature of the reaction inside the vessel. The jacketed design allows for efficient heat transfer and precise temperature control, making it suitable for a wide range of chemical

    Glass-Lined Agitated Reactor: This type of reactor combines a glass-lined vessel with an agitator or stirrer system. The glass-lined agitated reactor is equipped with a motor-driven agitator that helps mix the contents of the reactor, ensuring uniformity and promoting the desired reaction. The agitator can have various configurations, such as a paddle, anchor, or turbine, depending on the specific process requirements. The glass lining provides excellent corrosion resistance and avoids contamination of the product, while the agitator enhances the mass and heat transfer within the reactor.

    Both types of glass-lined reactors offer advantages such as corrosion resistance, easy cleaning, and visibility of the reaction process due to the glass lining. They are commonly used in the chemical, pharmaceutical, and food industries for various applications, including chemical synthesis, crystallization, polymerization, and mixing processes.
