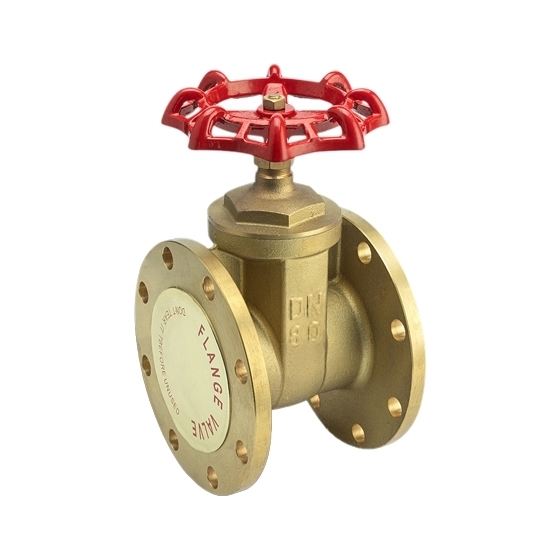

4 Inch Brass Gate Valve, DN100

Brass flange gate valve size of 4 inches, nominal pressure 1.6MPa, suitable for the working medium of water, non-corrosive liquid, air, saturated steam for opening and closing the pipeline.

Specification

• Model: ATO-BY-1011100
• Nominal Pressure: 1.6MPa
• Nominal Diameter: 4 Inch (100mm)
• Body Material:  HPb59-1 copper
• Applicable Temperature:-10°C≤T≤120°C
• Working Medium: Water, heating
• Number of Gates: Single gate
• Mode of Action: Single action
• Weight: 10.8kg

Features

• The 100mm brass gate valve adopts a thickened all-copper valve body, which has strong pressure resistance, one-piece molding, uniform wall thickness, and high wear resistance.
• The spheroidal ink handwheel can be rotated 360° for easy operation, saving time and effort, and has a wide range of applications.
• Standard thickness flange connection, with strong pressure resistance, good sealing, and durability.
• The 4-inch flanged gate valve is smooth and non-scaling, and the polishing treatment is practical and non-clogging.

Dimension (Unit mm)

Size

• L: 164mm
• H: 234mm
• D: 180mm
• D1: 108mm
• N-φD: 8-φ18mm

Installation

Applications

Brass gate valves are suitable for water, oil, gas, steam, and other media. It is widely used in chemical equipment, industrial equipment, drainage equipment, paper-making equipment, pharmaceutical equipment, electric power equipment, and mining equipment.

Tips: What is the difference between a gate valve and a globe valve?

• Different structure.  The gate valve is more complex than the globe valve structure, height size is larger, gate valve is shorter and higher than the globe valve.
• Different sealing surfaces.  Gate valve in the opening and closing of the valve spool and seat sealing surface always contact and mutual friction, so the sealing surface is easy to wear, while the valve flap of the globe valve once in the opening condition, its sealing surface mechanical wear is smaller.
• Different flow resistance.  Gate valve in the full opens the entire flow channel straight, which is compared with the globe valve, its advantage is that the fluid flow resistance is small, the flow resistance coefficient of an ordinary gate valve is about 0.08 ~ 0.12, while the resistance coefficient of ordinary globe valve is about 3.5 ~ 4.5.
