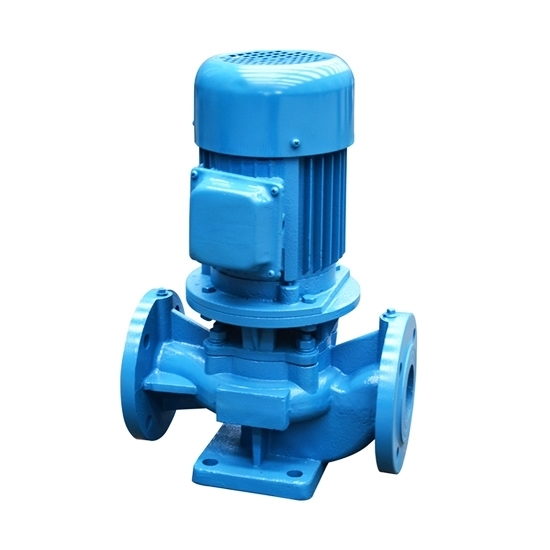

    40 hp Vertical Centrifugal Pump, Single Stage

    Hot selling 40 hp single-stage centrifugal pump is a non-self-priming centrifugal pump. It features a maximum flow of 535 gpm, a maximum head of 76m (249ft), and 100mm diameter. Input voltage AC 220V/400V/460V to 480V and input frequency 50Hz/60Hz for selection. 3 phase vertical centrifugal pump can be used in pipeline pressurization of production lines, firewater, air condition system water supply, cooling tower water feeding, and high-rise building pressurized water supply.
    SKU: ATO-VCP-030KW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Popular 40 hp centrifugal pump has a vertical structure and features maximum flow of 121.6m3/h, maximum lift of 76m, and 100mm diameter of inlet and outlet. Input voltage AC 220V/400V/460V to 480V and input frequency 50Hz/60Hz for selection.

    • The centrifugal pump has a vertical structure, and its inlet and outlet have the same diameter. The inlet and outlet are on the same centerline so that they can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
    • Easy to install and maintain. There is no need to dismantle the piping system, just remove the connecting flat nut of the vertical pump. All rotor parts can then be removed.
    • The vertical pump can be installed vertically or horizontally according to the requirements of the piping system.
    • Vertical centrifugal pumps can be run in series or in parallel according to the requirements of flow and head.


    • Model: ATO-VCP-100-250A
    • Power: 40 hp (30kW)
    • Number of stages: Single stage
    • Input voltage: AC 220V~480V
    • Input frequency: 50Hz/60Hz
    • Inlet diameter: 100mm (4 inch)
    • Outlet diameter: 100mm (4 inch)
    • Flow (min. flow to max. flow): 65.4m3/h (288 gpm), 93.5m3/h (412 gpm), 121.6m3/h (535 gpm)
    • Head (max. head to min. head): 76m (249ft), 70m (230ft), 59.5m (195ft)
    • Efficiency: 61%, 68%, 67%
    • Installation mode: Vertical type or horizontal type
    • Nominal diameter of impeller: 250mm
    • Size: 550*520*960mm
    • Weight: 268kg

    Vertical centrifugal pump dimension (unit: mm):

    Vertical centrifugal pump dimensional drawing

    Boundary dimension L B H C1*B1
    550 520 960 160*200
    Installation dimension A C2*B2 4-Φd1
    140 110*170 4-Φ18
    Flange dimension D D1 n-φd
    φ200 φ160 8-φ18

    Tips: Difference between the single-stage pump and multi-stage pump

    The single-stage pump refers to a pump with only one impeller. It can have a high head of 125 meters (410ft).
    The multi-stage pump refers to the pump with two or more impellers, the high head can exceed 125 meters. The multi-stage pump can be matched with the four-stage motor by increasing the number of impellers if the single-stage pump head needs to be equipped with the two-stage motor, so as to improve the pump service life and reduce unit noise. However, the maintainence of the multi-stage pump is a little more difficult than that of the single-stage pump.

    When the pump actually needs ahead of less than 125 meters, the operator can consider selecting a single-stage pump or a multi-stage pump according to the pump room, pump price(the price of the multi-stage pump is usually higher than that of the single-stage pump), and many other comprehensive factors.
    With the advancement of technology, the pump of the single-stage impeller can increase the head of the pump by increasing the speed of the pump, thus being able to replace the multi-stage pump. However, the price is a little higher.

    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
