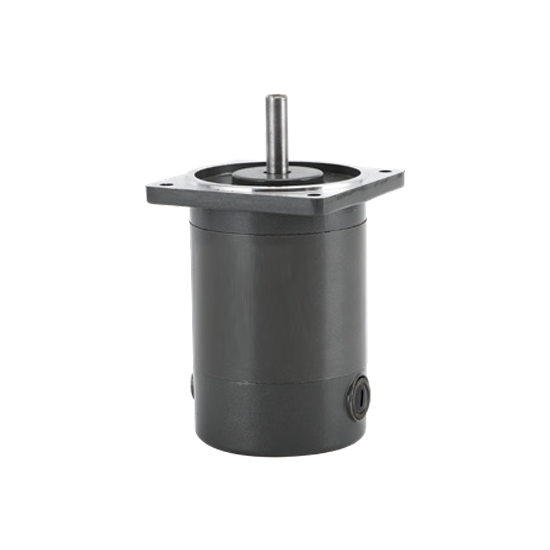

40 W DC Gear Motor, 1800 rpm, 12V/24V

12V/24V DC gear motor manufacturer direct sale. This small DC motor with a gearbox offers 40W power, 1800 rpm speed/min, 2.2 N.m torque, and 5:1 to 18:1 gear ratio, can be used in copiers, medical equipment, advertising light boxes, and more.

Specifications

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

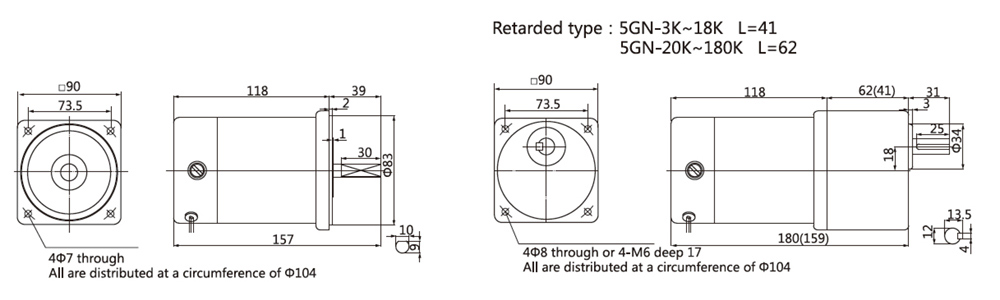

Dimension (Unit: mm)

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: How to choose the gear ratio of a 40W DC gear motor?

• Low gear ratios (5:1, 7.5:1)
  DC gear motor provides a higher output speed but lower torque. It is suitable for light-load and fast-moving applications such as small fans or toy cars.
• Medium gear ratios (10:1, 12.5:1)
  DC gear motor offers a balance of speed and torque. It is commonly used in robot wheels, automatic curtains, or devices that require steady motion with a moderate load.
• High gear ratios (15:1, 18:1)
  DC gear motor delivers lower output speed but higher torque. It is ideal for heavy-load or force-demanding applications such as door locks, lifting mechanisms, or screw drives.
