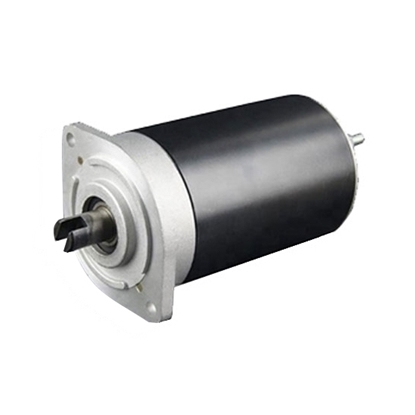

    12V 500W Hydraulic Pump Motor, 2500rpm

    5 out of 5 based on 1 reviews | Write a review
    12 Volt hydraulic pump motor for sale, 500W high torque DC motor, 2500rpm rated speed, rated torque is 2Nm, rated current with 70A. It can be used to oil pump, industrial machinery, garbage truck and snow removal vehicle.
    SKU: ATO-HM-MD8015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic pump motor for dump trailer, 12V DC motor, 2Nm rated torque, rated speed with 2500rpm, 500W. High efficiency, low price and manufacturer direct sale.


    Model ATO-HM-MD8015
    Rated Voltage 12V DC
    Power 500W
    Rated Current 70A
    Ratation Speed 2500 RPM
    Ratation Direction CW
    Torque 2 Nm
    Protection Degree IP54
    Duty S2=4 MIN S=10%ED
    Weight 3 kg
    Warranty 12 Months

    Dimension (Unit=mm)
    Hydraulic pump motor dimension

    Hydraulic Pump Motor Torque Curve
    Hydraulic pump motor torque curve
    Hydraulic pump motor applications


    500W Hydraulic Pump Motor Details

    Tips: Types of Hydraulic Pumps
    1. According to whether the flow can be adjusted can be divided into: variable pump and quantitative pump. The output flow can be adjusted as needed, called the variable pump, and the flow cannot be adjusted, called the fixed pump.
    2. According to the pump structure commonly used in hydraulic systems, it is divided into three types: gear pump, vane pump and plunger pump.
    Gear pump: The volume is small, the structure is simple, the cleanliness of the oil is not strict, and the price is cheaper; but the pump shaft is unbalanced, the wear is serious, and the leakage is large.
    Vane pump: divided into double-acting vane pump and single-acting vane pump. The pump has uniform flow, stable operation, low noise, high pressure and volumetric efficiency compared to the gear pump, and the structure is more complicated than the gear pump.
