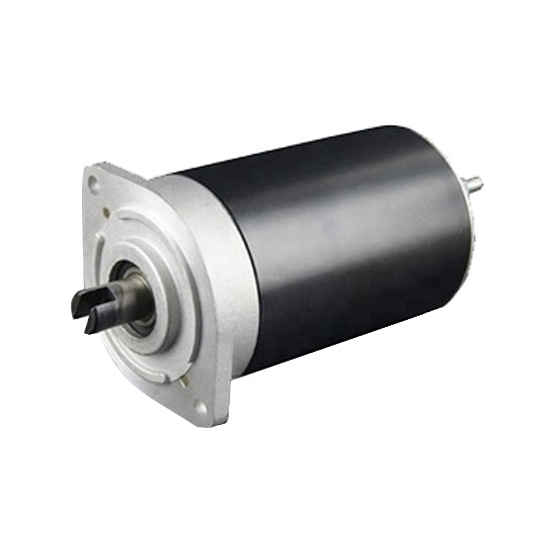

24V 500W Hydraulic Pump Motor, 2500rpm

5 out of 5 based on 1 reviews | Write a review

$489.86

Low price 24V hydraulic pump motor, 500W DC motor, rated speed of 2500RPM, rated current is 70A. It's can be used for dump trailer, lippert leveling systems and hay spear. High quality manufacturers direct sales.

Starter Switch *

SKU: ATO-HM-MD8025

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

24V hydraulic pump motor for sale, 500W, 2500rpm, 70A, rated torque 2Nm, DC motor for industrial machinery. Delivery time 6-12 days, free shipping.

Specifications

Model	ATO-HM-MD8025
Rated Voltage	24V
Power	500W
Rated Current	70A
Ratation Speed	2500 RPM
Ratation Direction	CW
Torque	2 Nm
Protection Degree	IP54
Duty	S2=4 MIN S=10%ED
Weight	3 kg
Warranty	12 Months

24V Hydraulic Pump Motor Dimension (Unit=mm)
Torque Curve
Applications

Details

500W Hydraulic Pump Motor Details

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 24V 500W Hydraulic Pump Motor, 2500rpm

How it works

I am curious how they work with fast and frequent changes of direction.

From: Kawami | Date: 27/03/2025

Was this review helpful? Yes No (0/0)

ATO Responded

Our radial hydraulic motors can achieve changes in motor direction via an externally connected reversing valve.

Load more reviews...
