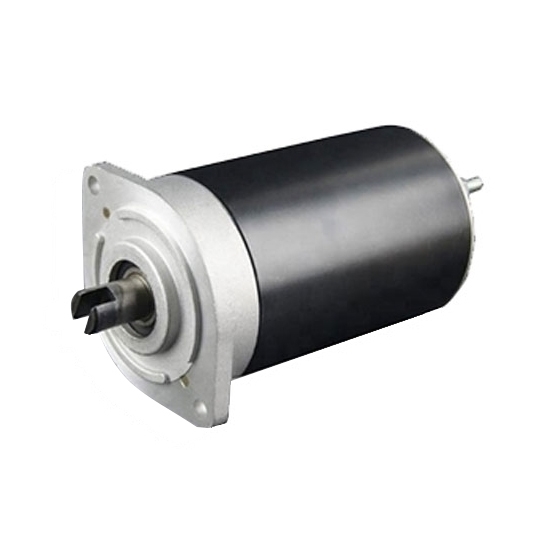

    12V 800W Hydraulic Pump Motor, 4000rpm

    5 out of 5 based on 1 reviews | Write a review
    $489.86
    12 volt hydraulic pump motor for dump trailer, 800W, 4000rpm rated speed, rated torque is 3Nm. 12V/24V hydraulic pump motor is widely used in bale bed, bale spike and hay bales, manufacturer direct sale.
    SKU: ATO-HM-MD8018
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    12V/24V 800w hydraulic pump motor for sale, 4000RPM, rated torque of 3Nm, 110 amps rated current. ATO hydraulic pump motor for a variety of hydraulic applications and systems.

    Specifications

    Model ATO-HM-MD8018
    Rated Voltage 12V / 24V DC
    Power 800W
    Rated Current 12V 110A, 24V 50A
    Ratation Speed 4000 RPM
    Ratation Direction CW
    Torque 3 Nm
    Protection Degree IP54
    Duty S2=4 MIN S=10%ED
    Weight 3 kg
    Warranty 12 Months

    Dimension (Unit=mm)
    Hydraulic pump motor dimension

    Torque Curve
    Hydraulic pump motor torque curve
    Applications
    Hydraulic pump motor applications

    Tips: The Role of The Hydraulic Pump Motor

    In the hydraulic transmission system, the hydraulic pump is a power component of the hydraulic transmission system, and is an energy conversion device that converts mechanical energy input by a prime mover (such as a motor) into liquid pressure energy. It belongs to the power component in the hydraulic transmission system and is an important part of the hydraulic transmission system. Its function is to provide pressure oil to the hydraulic system.

    Existing reviews of 12V 800W Hydraulic Pump Motor, 4000rpm
    Good pump motor for dump trailer
    I bought a 800W hydraulic pump motor for a dump trailer. Its quality is worth its price. I will buy more next time.
    From: Russ | Date: 14/01/2020
    Was this review helpful? Yes No (0/0)
