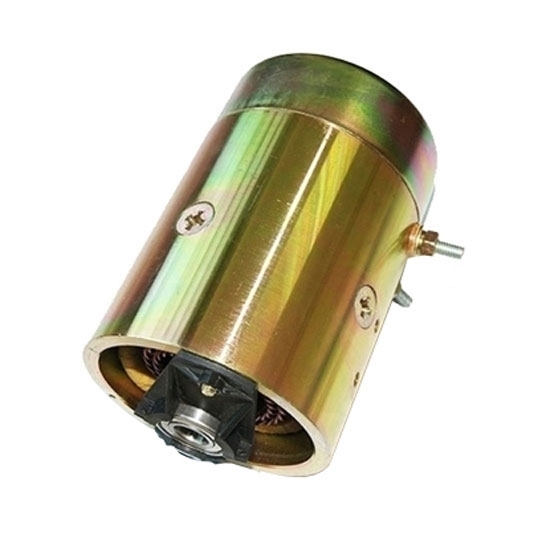

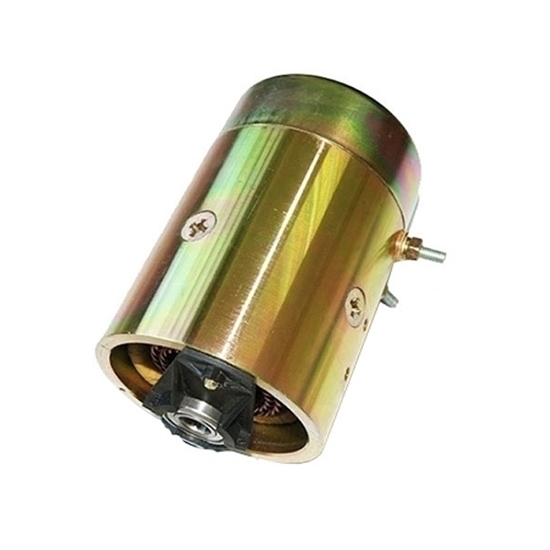

2 hp (1.6 kW) 12V Hydraulic Pump Motor, 2600rpm

5 out of 5 based on 2 reviews | Write a review

$489.86

2600RPM 12V hydraulic pump motor is 1.6 kW (2 hp), 12V DC motor, high rated torque of 5.4Nm, current with 200A. It can be used in dump trailer and lippert leveling systems, high quality manufacturers direct sales.

Starter Switch *
Rotary Direction *

SKU: ATO-HM-MDW1142

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

2 hp DC motor at a low price, high torque motor rated speed is 2600rpm, 5.4Nm, 12V hydraulic pump motor for dump trailer, ATO hydraulic pump motors for a wide range of hydraulic applications and systems.

Specifications

Model	ATO-HM-MDW1142
Rated Voltage	12V DC
Power	1.6 kW
Rated Current	200A
Ratation Speed	2600 RPM
Ratation Direction	CCW/CW
Torque	5.4 Nm
Protection Degree	IP54
Duty	S2=2 MIN S3=7.5%ED
Weight	8 kg
Warranty	12 Months

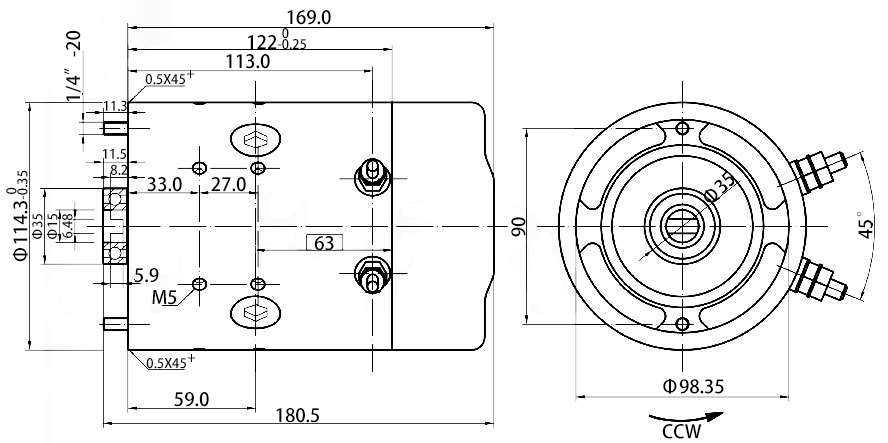

Dimension (Unit: mm)

12V hydraulic motor dimension

12V hydraulic pump motor CW direction

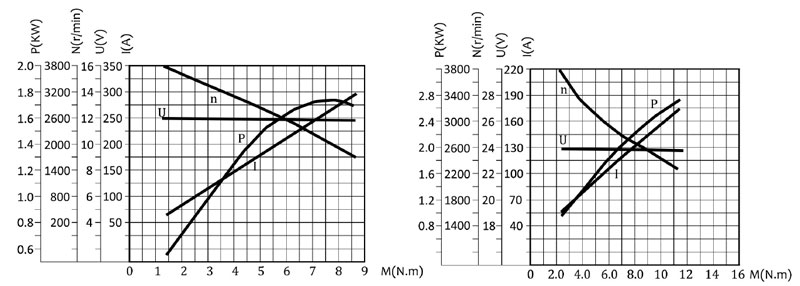

Torque Curve

Applications

Details

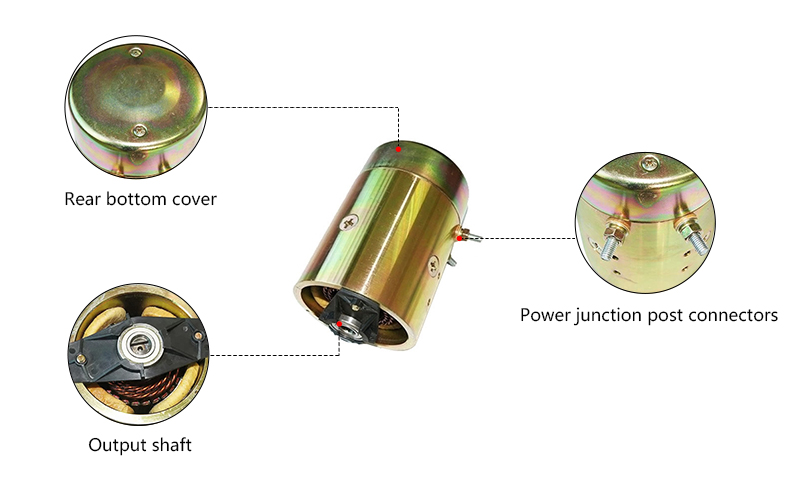

1600W Hydraulic Pump Motor Details

Tips: What is Hydraulic Pump Motor?
The hydraulic pump motor is an actuator of the hydraulic system, which converts the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquids are agents of transfer and motion.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 2 hp (1.6 kW) 12V Hydraulic Pump Motor, 2600rpm

This motor runs smooth and delivers reliable power

This pump motor is exactly what I needed for my hydraulic application. The 200A current capacity provides strong performance, and the IP54 protection is a nice advantage.

From: Winny | Date: 21/07/2026

Was this review helpful? Yes No (0/0)

Highly recommend!

I just can’t believe that 12V hydraulic pump motor like this can be bought at such a great price. Well made dependable unit for my dump trailer. Installed in less than 1/2 hour and works flawless. Very happy with this purchase.

From: Stults | Date: 28/06/2022

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 2 hp (1.6 kW) 12V Hydraulic Pump Motor, 2600rpm
