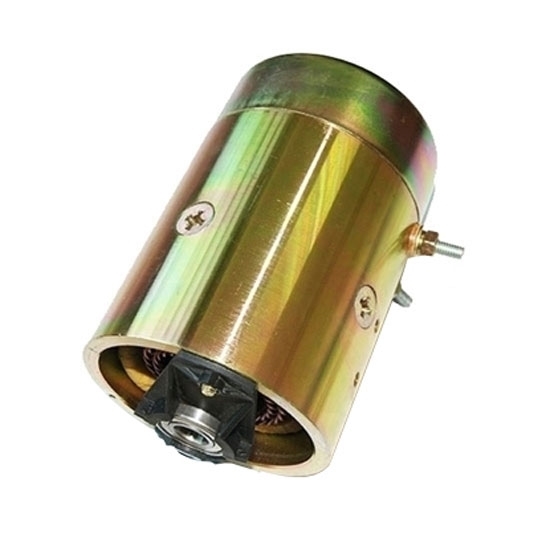

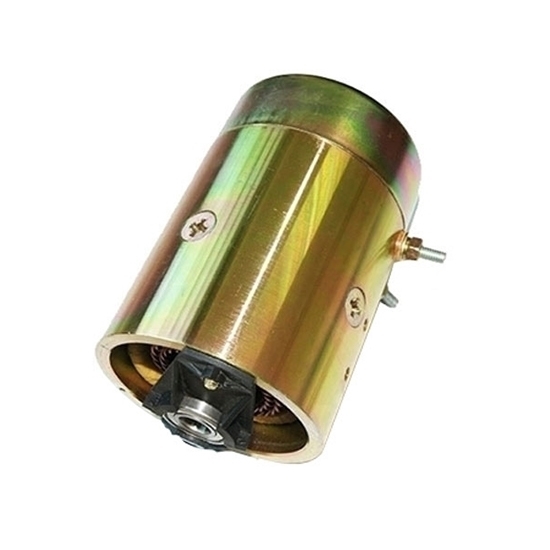

3 hp (2.2 kW) 24V Hydraulic Pump Motor, 2600rpm

5 out of 5 based on 1 reviews | Write a review

$489.86

24V hydraulic pump motor for dump trailer, 3 hp (2.2 kW), rated speed 2600rpm, high torque with 6.6Nm, 24V DC motor rated current with 140A, ATO hydraulic pump motors for a wide range of hydraulic applications and systems.

Starter Switch *

SKU: ATO-HM-MDW1242

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

24V hydraulic pump motor is 2.2 kW (2 hp), high rated torque 6.6Nm, 2600rpm rated speed, it can be used in lippert leveling systems, oil pump, dump trailer and winter vechicle.

Specifications

Model	ATO-HM-MDW1142
Rated Voltage	24V
Power	2.2 kW
Rated Current	140A
Ratation Speed	2600 RPM
Ratation Direction	CCW
Torque	6.6 Nm
Protection Degree	IP54
Duty	S2=1.2 MIN S3=4.5%ED
Weight	8 kg
Warranty	12 Months

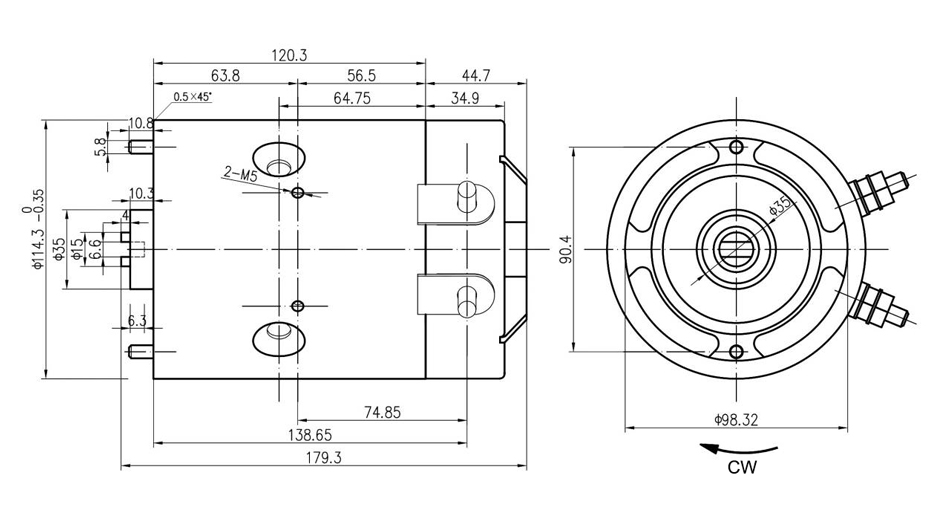

Dimension (Unit=mm)

Torque Curve

Applications

Details

Tips: Type of Motor
Divided by working power type: can be divided into DC motor and AC motor.
DC motors can be divided according to structure and working principle: brushless DC motor and brushed DC motor.
Brushed DC motors can be divided into: permanent magnet DC motors and electromagnetic DC motors.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 3 hp (2.2 kW) 24V Hydraulic Pump Motor, 2600rpm

Good quality 3hp24V hydraulic pump motor

Hello, the quality of this 24V hydraulic pump motor is very good. Today, I ordered and paid for this 3hp 24V hydraulic pump motor.

From: Dravkwn | Date: 30/03/2021

Was this review helpful? Yes No (0/0)
