500W Vertical Axis Wind Turbine, 12V/24V/48V

$998.69
The 500W wind vertical axis turbine aims to offer maximum efficiency, durability and performance, the rated voltage is available in 12V, 24V and 48V. The wind vertical axis turbine provides a highly efficient and reliable solution for powering homes, businesses and communities.
*
SKU: ATO-VAWT-500
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy a low cost 48V vertical axis wind turbine online, 12V or 24V voltage is also available. The 400 watt vertical axis wind turbine produces more power and less noise, making it a quiet and reliable renewable energy source.

Specification

Model ATO-X5-500
Rated Power 500W
Rated Voltage 12V/24V/48V
With Controller Yes
Start Up Wind Speed 2m/s
Rated Wind Speed 12m/s
Survival Wind Speed 50m/s
Wind Wheel Diameter/Height 0.55m/0.75m
Number of Blades 3
Blades Material Nylon
Fuselage Material Aluminum alloy
Magnetic Steel NdFeB
Generator Type Three-phase AC permanent magnetically suspended generators
Controller System Electromagnetic brakes
Speed Regulation 360° Automatically Adjust Windard
Installation Flange DN25
Degree of protection IP54
Gross Weight 21kg
Top Net Weight 22kg
Dimension 1060*270*490mm


Dimension
(Unit: mm)

500W axis wind turbine dimension

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Vertical axis wind turbine application

Tips: What is the working principle of vertical axis wind turbines?

Vertical axis wind turbines (VAWTs) are designed with the rotor shaft perpendicular to the ground, which allows them to capture wind from any direction. The working principle of a VAWT involves the following steps:

  • Wind energy: The wind blows over the blades of the turbine, creating a lift force that makes the rotor spin.
  • Rotation: As the rotor rotates, it turns a shaft that connects to a generator, converting the rotational energy into electrical energy.
  • Electrical power: The generator produces electricity that is sent to a power grid or stored in batteries.
  • Control systems: VAWTs may use control systems such as pitch control or yaw control to optimize the turbine's performance and ensure it operates safely in changing wind conditions.

Overall, the vertical axis wind turbine working principle is based on the conversion of kinetic energy from the wind into electrical energy through the rotation of the rotor and the use of a generator.

Write your review for 500W Vertical Axis Wind Turbine, 12V/24V/48V
  • Only registered users can write reviews
  • Bad
  • Excellent
Customers who bought this item also bought

500W Horizontal Axis Wind Turbine, 12V/24V/48V

$614.62
SKU: ATO-WT-500M2
Cost-effective horizontal axis home wind turbine generator for sale, rated power of 500 watt. With its advanced design, the horizontal axis wind turbine provides high power output while minimising noise and vibration.

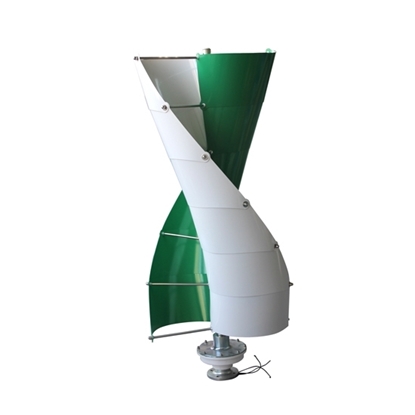

500W Spiral Wind Turbine, 12V/24V/48V
