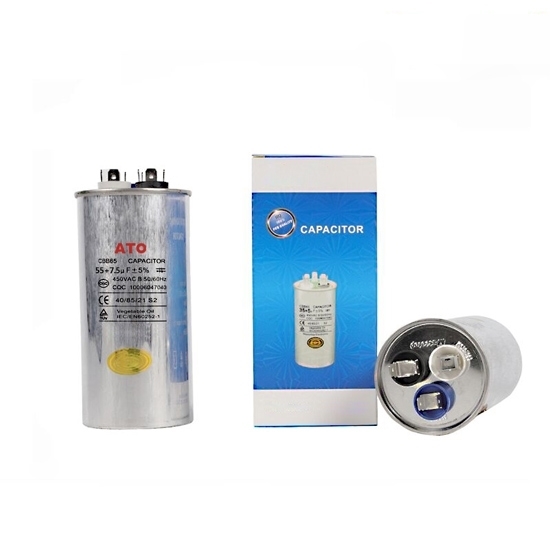

55/7.5 MFD Air Conditioner Capacitor, Dual Run Capacitor

450V AC air conditioner comes with a dual run capacitor. The capacitance of capacitor is 55+7.5 mfd. High quality power capacitor is commonly used for air conditioning.

Features and applications

55+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. ATO air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: ATO-CBB65-5575
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

55/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips: Why does the air conditioner capacitor fail?

What does a capacitor do in an air conditioner? It does tough jobs that make it fail frequently. Various factors may contribute to a massive reduction in their lifespan. The following are some of these factors:

• Excess exposure to heat: Heat tops the list of the most damaging factors for air conditioners’ capacitors. Excessive exposure of A/C units to heat for prolonged periods significantly shortens their lifespan. This can, in turn, result in significant damages to your A/C unit. Consider shading the area surrounding your air conditioner, and always keep it clean.
• Wrong voltage rating: Your capacitor has a voltage rating that informs you of the right one for your air conditioner unit. Unfortunately, most homeowners try to reduce costs by replacing their capacitors on their own even without taking the time to understand how to pick the right one.
