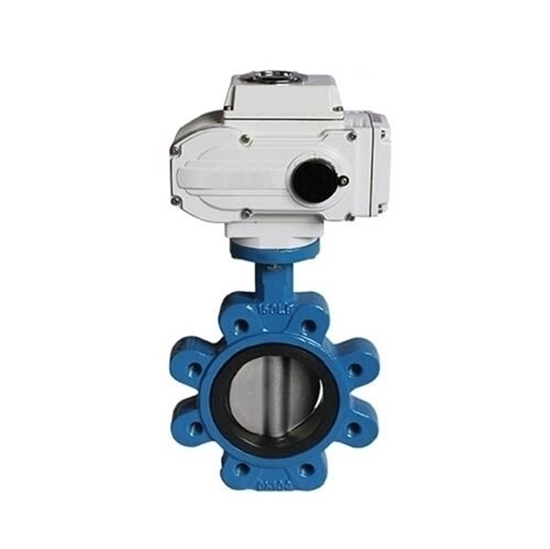

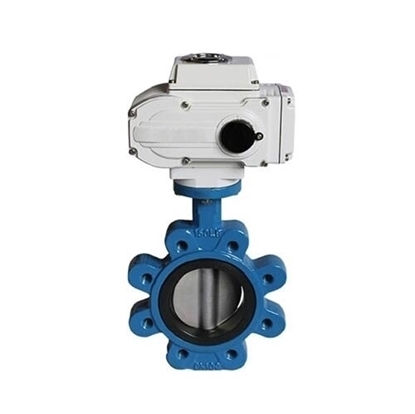

6" Electric Lug Type Butterfly Valve

$1,515.15
Lug type butterfly valve 6 inch (DN150) optional AC 380V/220V/110V/24V, DC 24V power supply, stainless steel material disc and stem. Equipped with electrical actuator (16) and connection G1/2 water-proof cable connectors, electric power wire. A great device for oil, water, air, gas, liquid, steam control. Compact structure, easy to handle and installation.
*
SKU: ATO-HK60-DMS150-16
30-day Returns
Free Shipping
Delivery date: 6-12 days

Electric butterfly valve with port size 6 inch (DN150) stainless steel material disc and stem, work at temperature -30°C~60°C. Control air, water, steam, gas and so on.


Electuator Specification

Mode ATO-HK60-DMS150-16
Protection Class IP65
Ambient Temp. -30°C~60°C
Installation Angle Any
Electrical Connection G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage Optional AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Optional 6" (DN150 150mm)
05 Actuator Control Circuit A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
Voltage AC 220V DC 24V AC 380V
Torque Output 160Nm 170Nm 200Nm
90° Cycle Time 15S/30S/60S 11S 27S
Working Current 0.40A 0.40A 0.27A
Drive Motor 80W 9.6W 77W



Body and Valve Specification

Body Valve components
Corresponding Valve Port Size 6" (DN150,150mm) Seating Material NBR, EPDM, VITON (Default PTFE)
Body Material Stainless Steel Disc Material Stainless Steel
End Connection Wafer Flange Stem Material Stainless Steel
Operating Pressure < 1.6MPa Applicable Media Control of Water, Air, Gas, Oil, Liquid, Steam
Structure Midline Structure/ A-type



Butterfly Construction

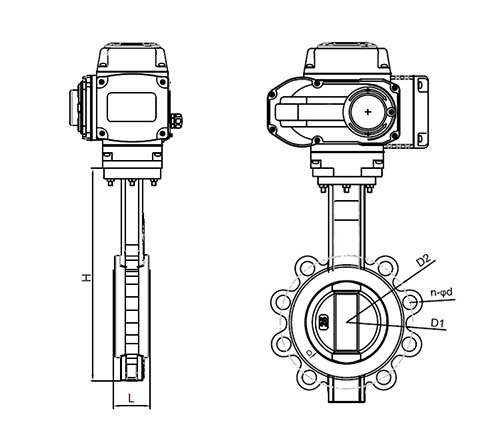

Butterfly valve construction

Dimension Inch D D1 D2 L H n-φd
DN150 6" 157 mm 206 mm 240 mm 54 mm 341 mm 8-M20 mm


Actuator Dimension (mm)

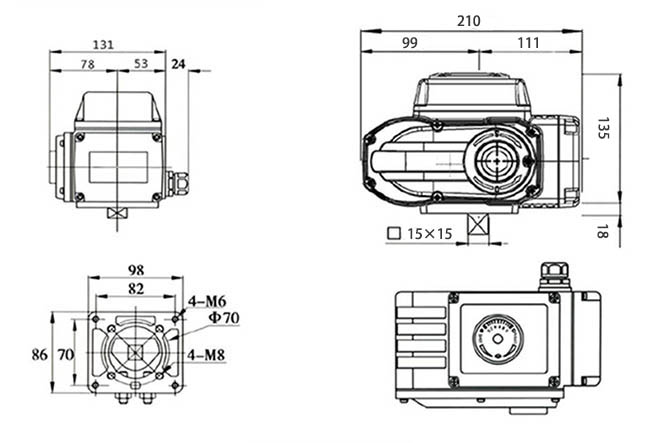

 16 outline actuator size

Details

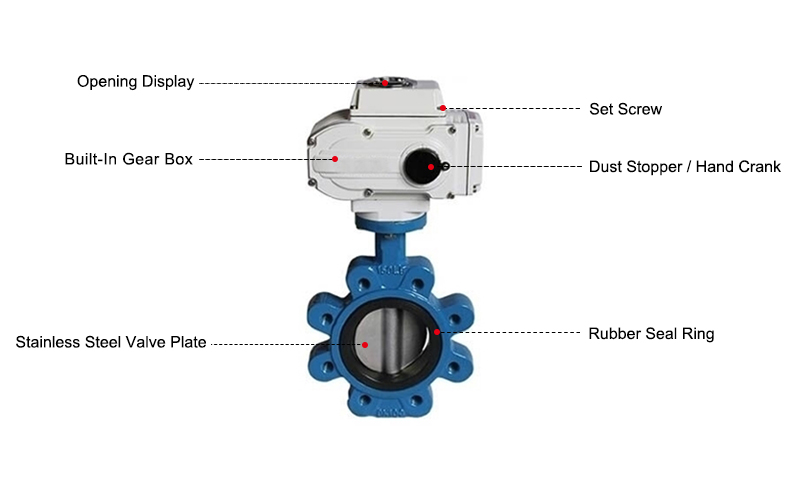

6" Electric Lug Type Butterfly Valve Details

Features

  1. Accurate wafer type butterfly valve turbo-worm structure can output large torque with high efficiency and little noise (Max.50 decibel).
  2. Long service life. Self-lock function can stop reverse rotation. Drive part is stable and reliable without additional lubrication.
  3. Wafer butterfly valve captive bolts won't fall off when cover is disassembled.
  4. Star square hole is easy for square valve stem linear or 45° rotation application.
  5. Both vertical and horizontal assemble are available.
  6. Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and connection terminal can meet requirement of other optional functions.
  7. Wafer valve with high sealing performance, standard protection class is IP67.
  8. Voltage optional: AC 110V, AC 220V, AC 380V, DC 24V, AC 24V.
  9. Lug type butterfly valves possess compact structure, portable, easy to maintain.
  10. Optional Function: over torque protectors, dehumidify heater, stainless steel coupling & yoke.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

Tips: How to install lug type butterfly valve?

  1. The valve is pre-assembled between the two flanges, note the neatly arranged bolt holes.
  2. Four pairs of bolts and nuts are gently inserted into the flange holes, and the nuts are tightened a little to correct the flatness of the flange surface.
  3. The flange is fixed by spot welding to the pipeline, then the valve is removed. The flange is fully welded and fixed to the pipe.
  4. Allow to cool before welding to install the valve. In order to ensure that there is enough space in the valve flange to prevent the valve from being damaged, and to ensure that the valve plate has a certain degree of opening.
