    65A Star Delta Starter, 30kW/ 55kW, 220V/ 380V AC

    $172.89

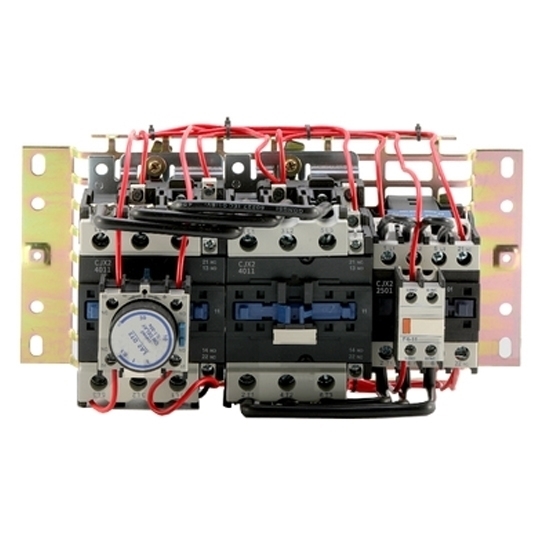

    Favorable price 65 amps starting current star delta starter for sale. This wye delta motor connection starter consists of 3 contactors and an air delay head for 3 phase asynchronous motor circuit control, working at 30kW/ 55kW power, optional 220V or 380V AC voltage, contact form 3P, which has short circuit protection, overload protection, missing phase protection and other functions.
    *
    SKU: ATO-STAR-65
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    40Hp/ 74Hp star delta starter for sale at low price. It consists of 3 contactors and an air delay head. Left contactor is connected to main circuit inlet and outlet and the main contactor of the thermal overload relay. The others are forward reverse contactors. Perfect for circuit control of 3 phase induction motor.

    Star Delta Starter Specification

    • Model: ATO-QJX2-65
    • Rated Operational Current (AC-3): 65A
    • Coil Rated Voltage: 220V AC, 380V AC (Optional)
    • Contact Form: 3P
    • Power of Controllable 3-phase Squirrel-cage Motor (AC-3): 220V, 30kW; 380V, 55kW
    • Conventional Heating Current: 80A
    • Rated Insulation Voltage: 690V
    • Electric Life: 600 times/h
    • Mechanical Life: 3600 times/h
    • Matching Fusing Model: RT16-63
    • Average Power Consumption (20℃) @ 50Hz: Pick-up 230VA; Holding 32A
    • Rail Size: 75mm
    • Ambient Temperature: -5℃~+40℃
    • Altitude: ≤2000m
    • Class of Pollution: Class 3
    • Installation Category:
    • Dimension (L*W*H): 143mm*310mm*185mm
    • Weight: 4kg

    Air Delay Head Specification

    • Rated Current: 10A
    • Delay Time: Power Off Time Delay 0.1~30s
    • Dimension (L*W*H): 50mm*45mm*60mm
    • Auxiliary Contact: 1NO+1NC

    Dimension (Unit: mm)

    40-95 amp star delta starter wiring dimension

    Wiring Diagram

    Wiring diagram of star delta starter

    Tips: How to connect the inverter with star delta starter?

    The original motor line is disconnected from the power frequency power supply, directly connected to the output of the inverter, and the auxiliary contact of the contactor switched to the delta is used as the starting signal of the inverter to complete the transformation of pure inverter control.

    If power/variable frequency switching is required, an interlocked switching contactor or a manual air switch should be added between the original power frequency power supply and the output of the inverter.
