    8 Port Full Gigabit Unmanaged Industrial Switch, Din Rail

    $335.38
    Best 8-port 10/100/1000Base-T full Gigabit Ethernet switch, with dual 12/24/48 VDC redundant power inputs, Din rail mounting and high-level EMC capability, 10/100/1000 self-adaption, full/half duplex, MDI/MDIX auto connection, IP40 rated metal housing and built-in relay warning function.
    SKU: ATO-GE2208G
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    High quality 8 Gigabit Ethernet ports Layer 2 Din-rail unmanaged industrial switch, adopts fanless thermal design and non-porous heat dissipation technology to make the switch durable, support indicator lights for states display.

    Specification

    Model ATO-GE2208G
    Technical Parameters
    Protocol Standard IEEE802.3, IEEE802.3u (100Base-TX/100Base-FX), IEEE802.3x, IEEE802.3ab (1000Base-T)
    Switch Capability
    MAC Table Size 4k
    Backplane Bandwidth 16Gbps
    Switch Delay <5μs
    Interface
    Gigabit Ports Number: 8
    Connector: RJ45 copper port
    Baud rate: 10/100/1000M for copper port
    Terminal Block for Power Input     5.08mm terminal block
    Terminal Block for Relay Alarm 5.08mm terminal block, 1A@24VDC
    Communication Distance
    Twisted-pair 100m (CAT5/CAT5e cable)
    LED Indicator Lights
    Front Panel LED Lights Port light: LINK/ACT, SPEED
    System work light: RUN
    Power status light: PWR1, PWR2
    Power
    Power Supply DC12~48V dual power in standard
    Optional before order: DC48V dual power, or AC/DC (85-264VAC/110-370VDC) single power
    Power Consumption <6W
    Overload Protection support
    Inversed Protection support
    Working Environment
    Operating Temperature -40°C~75°C
    Storage Temperature -40°C~80°C
    Ambient Humidity 5%~95%
    Physical Characteristics
    Shell IP40 protection, aluminum alloy shell
    Installation Standard 3.5 Din-rail mounting
    Dimension 33mm x 144mm x 97mm
    Weight 440g
    Industry Standard
    EMC EN61000-4-2(ESD), Level 4
    EN61000-4-3(RS), Level 4
    EN61000-4-4(EFT), Level 4
    EN61000-4-5(Surge), Level 4
    EN61000-4-6(CS), Level 4
    EN61000-4-8, Level 5
    Impact IEC60068–2-27
    Falling IEC60068-2-32
    Shock IEC60068-2-6

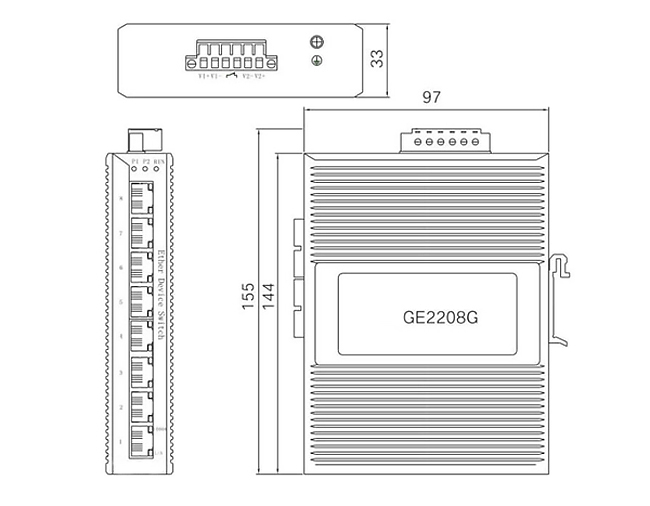

    Dimensional Drawing (mm)

     8 port gigabit unmanaged industrial switch GE2208G dimension

    Tips: How Layer 2 industrial switches work?
    The Layer 2 Ethernet switch works at Layer 2 (data link layer) of the OSI model, identifies the MAC address information in the packet, forwards it according to the MAC address, and records these MAC addresses and corresponding ports in an internal address table. Therefore, Layer 2 switches require powerful data identification and forwarding capabilities.
    Working principle:
    When the switch receives a packet from a port, it first reads the source MAC address in the packet header so that it knows which port the source MAC address machine is connected to. Then read the destination MAC address in the packet header and look up the corresponding port in the address table. If there is a port corresponding to the destination MAC address in the table, copy the packet directly to this port. If the corresponding port is not found in the table, the data packet is broadcast to all ports. When the destination machine responds to the source machine, the switch can learn which port the destination MAC address corresponds to, and the switch will not broadcast to all ports when the next time data is transferred.
