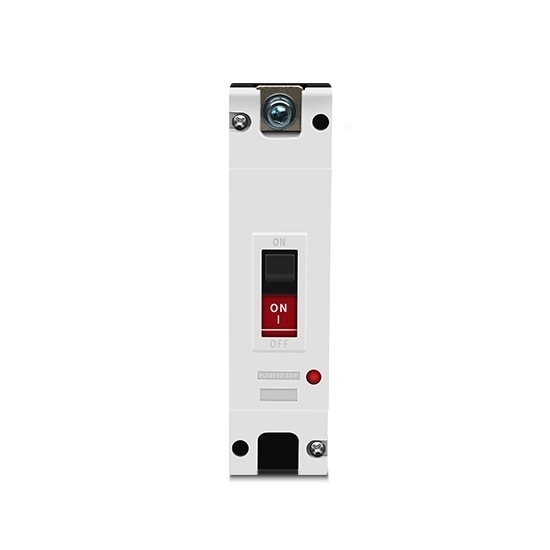

    80A DC Circuit Breaker, 1/2/3/4 Pole

    5 out of 5 based on 1 reviews | Write a review
    $101.56
    80 amp DC circuit breaker with 125A shell and frame current for sale. Rated impulse withstand voltage of pv circuit breaker is 8 kV. 1 pole, 2 pole, 3 pole and 4 pole can be selected. Working temperature of 80A DC circuit breaker between -25 ℃ and 50 ℃.
    *
    SKU: ATO-DCCB-80A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DC circuit breaker and on-load voltage regulation are transformer tap switch voltage regulation mode. 80A DC circuit breaker widely used in overload protection devic and control appliance.

    Features

    • Extremely high breaking capacity and current limiting characteristics.
    • Available for installation in standard busbars.
    • Dual function terminals on top and bottom sides (lifting type / open type).
    • Optionally fixed to the bus bar on the top or bottom side.
    • With isolation function, can be used as the main switch.
    • Wiring terminal guidance to prevent mis-wiring.

    Specifications

    Electrical Parameter Model FXBN1/BM1-80A
    Current 80 A
    Rated Voltage DC 250V, 500V, 750V, 1000V
    Current Shell Frame 125A
    Numbers of Pole 1 pole, 2 pole, 3 pole, 4 pole
    Breaking Capacity 25 KA
    Rated Insulation Voltage 1000V
    Rated Impulse Withstand Voltage 8 kV
    Total Break Time 20 ms
    Installation Location any location
    Allowable Ambient Temperature -25 ℃ ~ 50 ℃
    Protection Level IP20
    Avaliable with Accessories auxiliary, alarm, diverter, manual operation, elecrtic operation, mechanical interlock
    Flying Arc Distance ≥50 mm
    Instantaneous Action Valve 12 ln
    Installation Method fixed, insertion type
    Standard IEC60947-2x IEC60947-K GB14048.R GB14048.2
    Machinery Parameter Mounting Method IEC standard track 35 mm
    Enclosure Protection Level IP20
    Dual Function Terminals on Both Sides open type / lifting type
    Terminal Protection finger touch and hand touch safety
    Terminal Wiring Capacity 1-25 mm²
    Termianal Screw Tightening Torque 2-2.4 Nm
    Bus Bar Thickness 0.8-2 mm
    Mounting Angle functionaity is independent of location

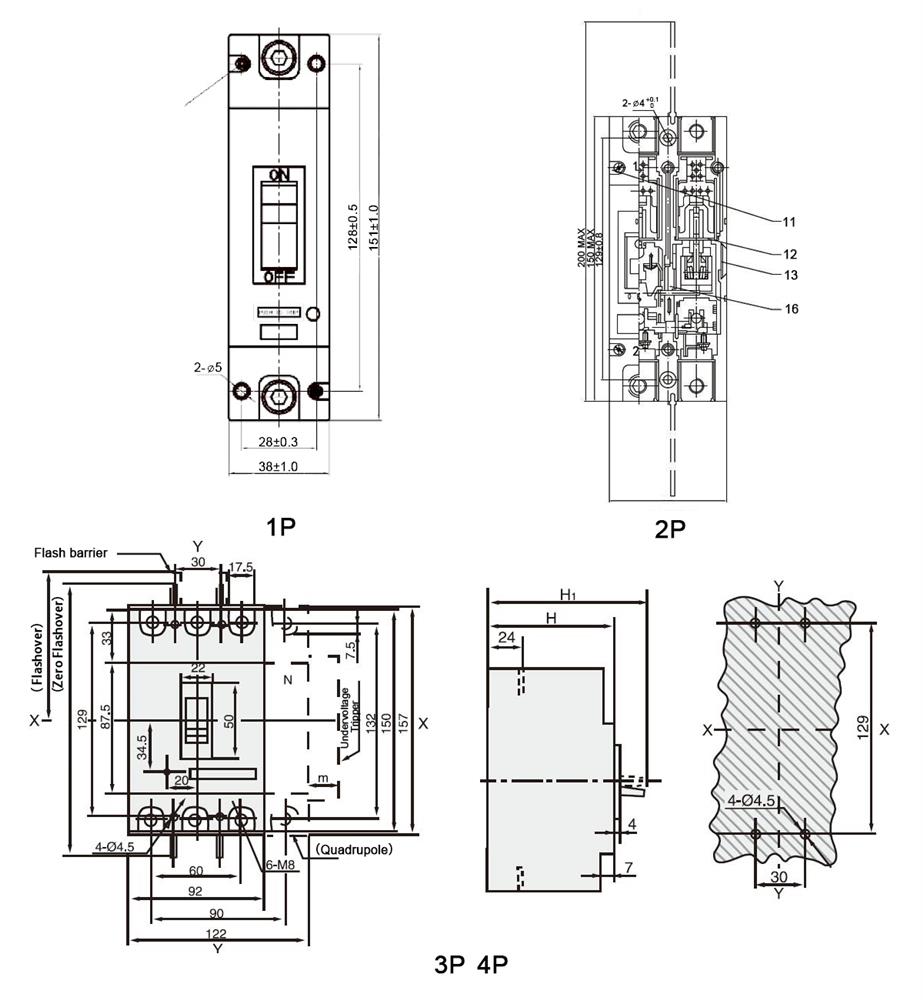

    Dimension (Unit: mm)

    DC circuit breaker dimension

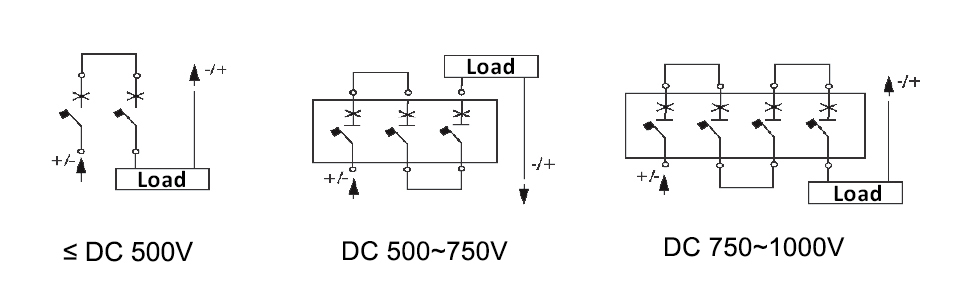

    Wiring Diagram

    Wiring diagram DC circuit breaker

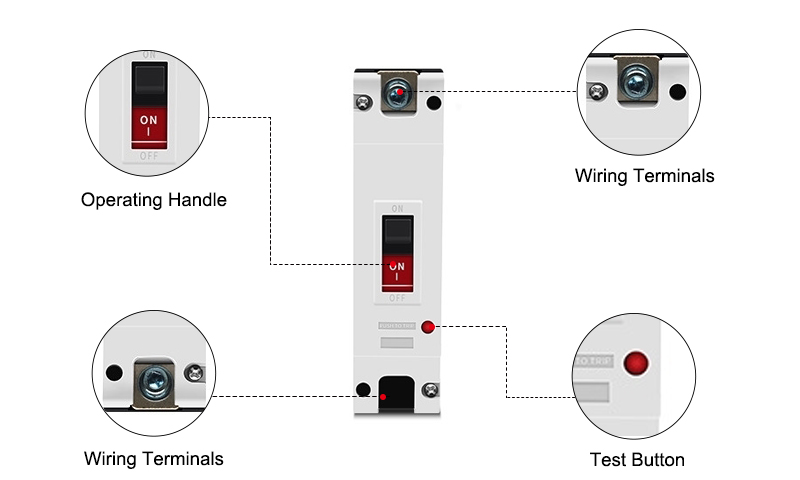

    Details

    80A DC Circuit Breaker Details

    Tips: Can I Use AC Circuit Breaker for DC?

    The signal of AC current is constantly changing its value for every second. The circuit breaker arc will be extinguished at 0 volts, and the circuit will be protected from big current. But the signal of DC current is not alternating, it works in a constant state, and the voltage value will only change when the circuit is tripped or the circuit is reduced as a certain value. Otherwise, the DC circuit will provide a constant voltage value for every second of a minute. Therefore, since there is no 0 volt point in the DC state, it does not suggest that use a AC circuit breaker for the DC state.
