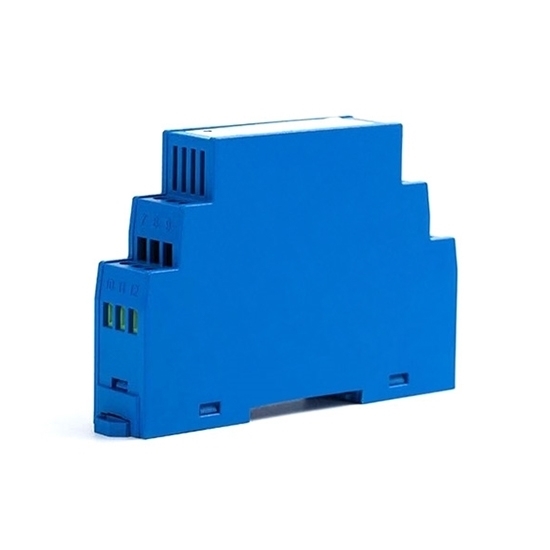

    Isolated DC Voltage Sensor 10mV to 1000V, Power Supply DC 12V/24V

    5 out of 5 based on 2 reviews | Write a review
    $141.96
    DC voltage sensor uses modulation and demodulation technology to achieve input/output/power supply isolation. Isolated voltage transducer has measuring range from DC 10mV/50mV/75mV/5V/150V/300V/500V to 1000V, supply voltage DC 12V/24V, accuracy 0.2%FS, output signal 0-5V/0-10V/0-20mA/4-20mA and strong anti-interference capability. DC voltage sensor is widely used for voltage isolated measuring and control, such as electric power, remote monitoring, medical equipment, etc.
    SKU: ATO-VOS-DC1000
    *
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.

    Specification:

    Model ATO-WBV342U01-S ATO-WBV342U05-S ATO-WBV344U01-S ATO-WBV344U05-S
    Shipping weight 1kg
    Measuring range of input voltage * DC 0-10mV ~ 0-1000V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Input impedance When Ux>1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
    Output signal * DC 0-5V, 0-10V (only for power supply DC 24V) DC 0-5V, 0-10V (only for power supply DC 24V) DC 0-20mA, 4-20mA DC 0-20mA, 4-20mA
    Power supply * DC 12V, 24V
    Accuracy 0.2%F.S.
    Load capacity 10mA 10mA ≤300Ω ≤300Ω
    Response time ≤150ms
    Temperature drift 200*10-6/℃
    Static current ≤12mA ≤30mA Output 0-20mA: ≤16mA
    Output 4-20mA: ≤20mA
    Output 0-20mA: ≤29mA
    Output 4-20mA: ≤33mA
    Isolation features * Isolation between input and output (output terminals provides power supply) Isolation between input, output and power supply Isolation between input and output (output terminals provides power supply) Isolation between input, output and power supply
    Isolation voltage DC 2.5kV, 1mA, 1 min
    Work temperature -25~+70℃
    Storage temperature -25~+70℃
    Protection features Surge: 2kV
    Electrostatic discharge: 6kV/8kV
    Electrical fast transient burst: 2kV
    Mean time between failures >50000h
    Housing material Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022)

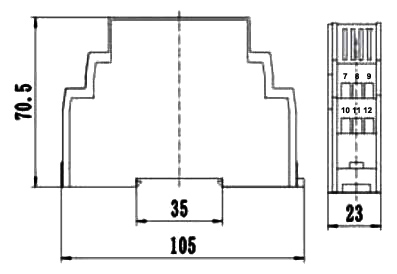

    DC voltage sensor 10mV to 1000V dimensional drawing (unit: mm):
    Isolated DC voltage sensor 10mV to 1000V dimension

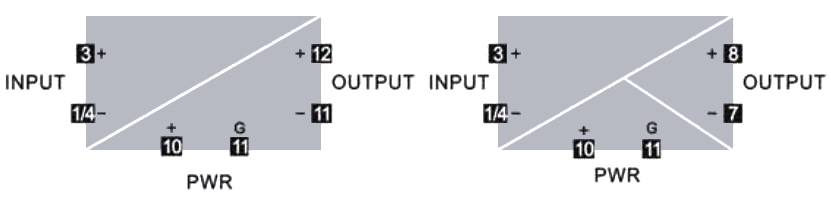

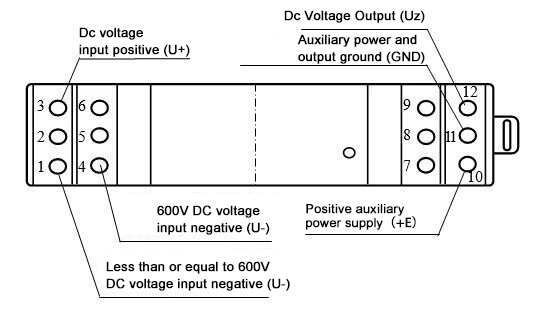

    DC voltage sensor 10mV to 1000V wiring diagram:
    (The left diagram is for isolation between input and output, the right diagram is for isolation between input, output and power supply. 1: U≤600V, 4: U>600V)
    Isolated DC voltage sensor 10mV to 1000V wiring
    Tips: What is the effect of voltage sensor?
    A voltage sensor is a sensor that can sense the measured voltage and convert it into a usable output signal. In various automatic detection and control systems, it is often necessary to track and acquire high-speed changing AC and DC voltage signals, and perform spectrum analysis on more complex voltage waveforms. This type of signal may be a strong voltage such as a high voltage or a large current, or it may be a weak current with a poor load capacity or a signal with small amplitude. In these cases, it is necessary to use appropriate voltage sensors to collect voltage signals that cannot be directly measured or mismatched, so as to obtain standardized and electrically isolated voltage signals.

    Existing reviews of Isolated DC Voltage Sensor 10mV to 1000V, Power Supply DC 12V/24V
    Works excellent for my application!
    This AC voltage sensor is great product for the price. I use it as an isolated voltage to read for my power monitoring project. The low voltage signal ensures that I can read and correlate to the line voltage. For reading voltage is certainly working great. It also has high quality control of the heatsink attach.
    From: Quentin | Date: 26/07/2021
    Was this review helpful? Yes No (0/0)
    How deep are those terminals?
    For the terminals, the wire diameter cannot be larger than 2.5mm2.  We are creating wire harness drawings and need to know how much to strip the wire for installation.  How deep are those terminals?
    From: Bezh | Date: 27/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The cable insertion depth is 6mm-8mm on it. complete part number may be neutral BV344U05-S, of course, you can also continue to order directly on our website (refer to the options in the following chart): https://www.ato.com/isolated-dc-voltage-sensor- 10mv-to-1000v
