    AC/DC Voltage Sensor 75mV to 500V, RMS 0-5V/0-10V/4-20mA/0-20mA Output

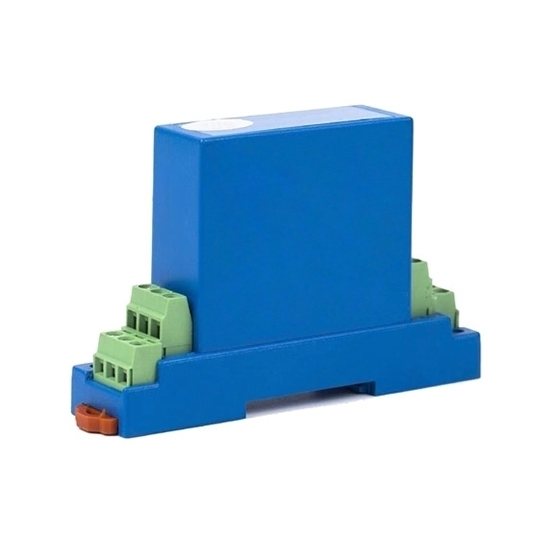

    Picture of AC/DC Voltage Sensor 75mV to 500V, RMS 0-5V/0-10V/4-20mA/0-20mA Output
    Picture of AC/DC Voltage Sensor 75mV to 500V, RMS 0-5V/0-10V/4-20mA/0-20mA Output

    AC/DC Voltage Sensor 75mV to 500V, RMS 0-5V/0-10V/4-20mA/0-20mA Output

    5 out of 5 based on 1 reviews | Write a review
    $161.27
    Voltage sensor has voltage measuring range from AC/DC 75mV/50V/100V/250V/300V to 500V, supply voltage DC 12V/24V, output DC voltage/current or True RMS voltage/current signal 0-5V/0-10V/0-20mA/4-20mA and protection class IP20. AC/DC voltage sensor has two installation methods, DIN rail installation and M3 screw fixation.
    SKU: ATO-VOS-ACDC500
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    AC/DC voltage sensor has measuring range of AC/DC 75mV/30V/50V/100V/250V/300V to 500V.

    Specification:

    Model ATO-WBV122S01 ATO-WBV124S01 ATO-WBV125S01 ATO-WBV127S01
    Shipping weight 1kg
    Measuring range of input voltage * AC/DC 0-75mV ~ 0-500V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Frequency range ±DC/20Hz ~ 10kHz
    Input impedance When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
    Output signal * DC 0-5V, 0-10V (only for power supply DC 24V) DC 4-20mA, 0-20mA True RMS DC 0-5V, 0-10V (only for power supply DC 24V) True RMS DC 4-20mA, 0-20mA
    Power supply * DC 12V±10%, DC 24V±10%
    Accuracy 0.5%F.S.
    Load capacity 5mA 6V 5mA 6V
    Response time ≤250ms
    Temperature drift 250*10-6/℃ 300*10-6/℃ 250*10-6/℃ 300*10-6/℃
    Static current ≤34mA Output 0-20mA: ≤34mA
    Output 4-20mA: ≤38mA    		 ≤30mA ≤40mA
    Isolation features Isolation between input and output, output terminals provides power supply
    Isolation voltage DC 1.5kV, 1 min
    Work temperature -25~+70℃ -25~+70℃ 0~+50℃ 0~+50℃
    Storage temperature -25~+70℃ -25~+70℃ -25~+70℃ -25~+70℃
    Input/Output isolation capacitance - 6pF (below 1kHz)
    Common mode rejection ratio (CMRR) - 160dB (under condition of 50Hz)
    Protection class IP20
    Mean time between failures ＞50000h
    Housing material Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

    AC/DC voltage sensor 75mV to 500V dimensional drawing (unit: mm):
    AC/DC voltage sensor 75mV/100V/250V/300V to 500V dimension
    AC/DC voltage sensor 75mV to 500V wiring diagram:
    (The left diagram is for voltage output, the right diagram is for current output.)
    AC/DC voltage sensor 75mV/100V/250V/300V to 500V wiring
    Tips: How to install the voltage sensor?

    There are 3 installation methods of voltage sensor:

    1. Pin-welding installation of the circuit board: Make lines on the circuit board, and weld the voltage sensor to the circuit board like a component. Its advantages are small size, light weight, space saving and easy installation.
    2. Screw fixation installation: The voltage sensor is screwed to the bottom of the chassis or a fixed position, and the external connection is through a variety of different terminals. The advantages are very firm and easy to disassemble.
    3. DIN rail installation: There is a standard 35mm wide dovetail groove on the bottom of the voltage sensor, which can be installed at DIN rail. Its advantages are convenient, versatile, and suitable for field work installation.
