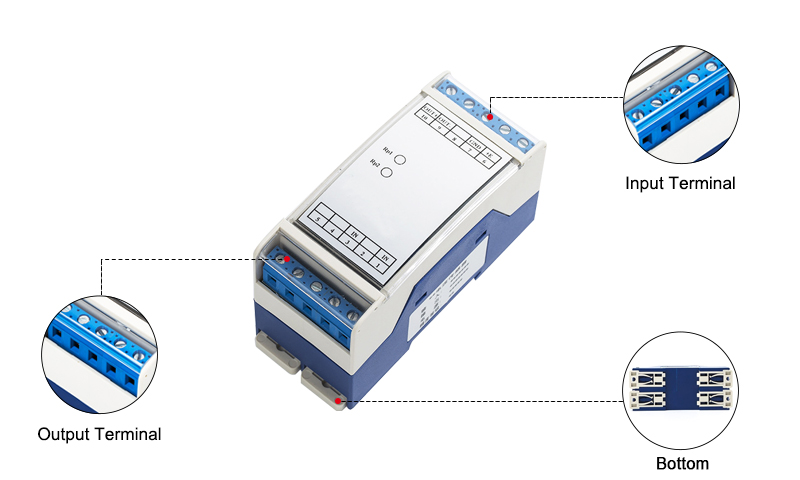

AC voltage transducer has measuring range of 10V/50V/100V/200V/300V to 500V.
|Measuring range of input voltage *
||AC 0-10V ~ 0-500V
||2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
|Linear measurement range
||0% ~ 120% measuring range
||25Hz ~ 1kHz
|Output signal *
||DC 0-5V, 0-10V, 1-5V
||DC 4-20mA, 0-20mA
|Output ripple voltage
||Isolation between input, output and power supply
||Input and output: DC 2.5kV, 1min
Power supply and input: DC 2.5kV, 1 min
Power supply and output: DC 2.5kV, 1 min
||EMC standards: EN61326: 2006
Safety standards: EN60100:2001
|Mean time between failures
||DIN rail (NS35/7.5, NS35/15, EN50022)

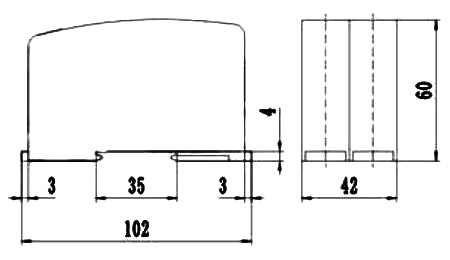

Voltage transducer AC 10V to 500V dimensional drawing (unit: mm):

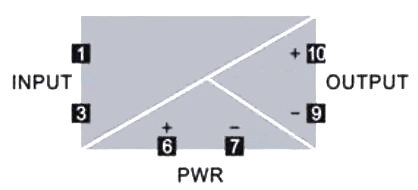

Voltage transducer AC 10V to 500V wiring diagram:
Tips: How to calculate the external resistance value of the voltage sensor?
When the magnetic balance voltage sensor is applied, the measured voltage is converted into the rated input current for measurement, and an external resistance needs to be added. The calculation is as follows:
Example: Use a voltage sensor to measure 220V voltage.
Because: The rated input current of the voltage sensor Ii=10mA, the internal resistance of the primary side Ri=430Ω. Now to measure the voltage Ui=220V, the external resistance R needs to be calculated.
Considering the standardization of the resistance, choose the external resistance R=22kΩ.
From this point of view, when measuring voltages above 100 volts, the simple calculation method in engineering is R=Ui/Ii. However, if the accuracy error of the entire measurement system is considered, it should be calculated strictly according to the above method. The user does some simple calculations according to the usage, so that the voltage transducers are in the best working state.
