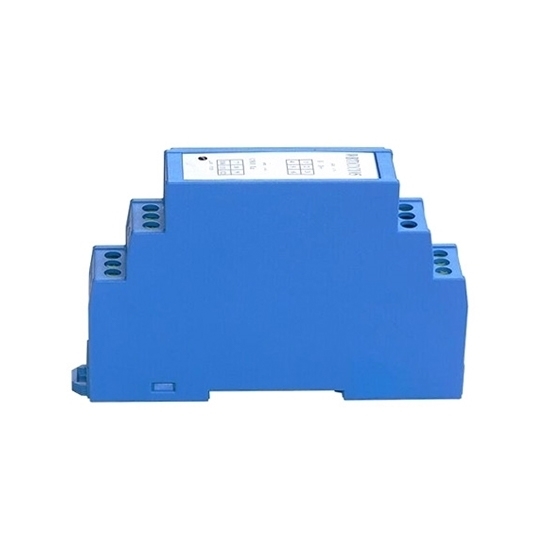

    3 Phase AC Voltage Transducer 10V to 500V, Output 0-5V/4-20mA/0-20mA

    5 out of 5 based on 1 reviews | Write a review
    3 phase AC voltage transducer is a special voltage sensor for three-phase AC voltage measurement. Voltage transducer has a measuring range from AC 10V to 500V, supply voltage DC 12V/24V, output signal DC 0-5V/0-20mA/4-20mA. 3 phase voltage transducer is mainly used for power monitoring, power control and dispatching systems in petroleum, coal, metallurgy, railway and other industries.
    SKU: ATO-VOS-3AC500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase AC voltage transducer has measuring range of AC 10V/50V/100V/250V/300V to 500V.


    Model ATO-WB3U412U01 ATO-WB3U414U01
    Shipping weight 1kg
    Measuring range of input voltage * 3 phase AC 0-10V ~ 0-500V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Frequency range 25Hz ~ 1kHz
    Input impedance Ri=2/3(Ux*1kΩ/V)
    Output signal * DC 0-5V DC 0-20mA, 4-20mA
    Power supply * DC 12V±10%, 24V±10%
    Accuracy 0.5%F.S.
    Load capacity 5mA 6V
    Response time ≤300ms
    Temperature drift 250*10-6/℃ 350*10-6/℃
    Static current ≤8mA Output 0-20mA: ≤12mA
    Output 4-20mA: ≤35mA
    Isolation features Isolation between input and output, output terminals provides power supply
    Isolation voltage DC 2.5kV, 1min
    Work temperature 0~50℃
    Storage temperature -25~+70℃
    Protection class of housing IP20
    Mean time between failures >50000h
    Housing material Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022)

    3 phase AC voltage transducer 10V to 500V dimensional drawing (unit: mm):
    3 phase AC voltage transducer 10V to 500V dimension

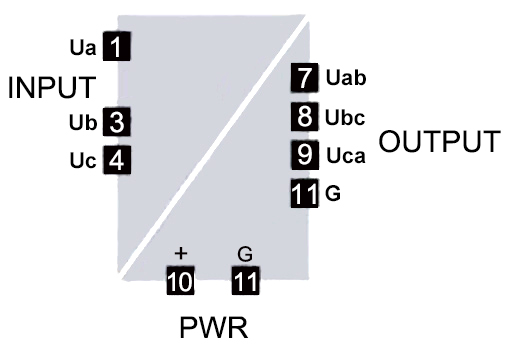

    3 phase AC voltage transducer output 0-5V wiring diagram:
    3 phase AC voltage transducer output 0-5V wiring
    3 phase AC voltage transducer output 0-20mA/4-20mA wiring diagram:
    3 phase AC voltage transducer output 0-20mA/4-20mA wiring

    Tips: Measuring requirements when using voltage sensors

    To measure the voltage with a voltage sensor, it is generally required that the collected voltage signal is proportional to the measured voltage in amplitude, and the phase angles of the two are exactly the same or the difference is extremely small. In addition, there are the following basic requirements for the voltage sensor.

    1. The connection of the voltage sensor to the circuit under test should basically not affect the amplitude and waveform of the voltage under test.
    2. The voltage waveform obtained by the voltage sensor should be the same as the measured voltage waveform, and the voltage divider ratio should be independent of the measured voltage frequency and amplitude.
    3. The voltage divider ratio has nothing or basically nothing to do with atmospheric conditions (air pressure, temperature and humidity).
    4. The power consumed by the voltage sensor should not be large. Under certain cooling conditions, the temperature rise formed by the electrical energy dissipated by the voltage divider should not cause a change in the voltage divider ratio.
    5. The voltage sensor should not be interfered by the external electromagnetic field, and on the other hand, it should not produce strong electromagnetic interference from the external environment.
    Existing reviews of 3 Phase AC Voltage Transducer 10V to 500V, Output 0-5V/4-20mA/0-20mA
    I want to buy your voltage sensor
    I have come up with your product below:
    Voltage Sensor
    Though, I have 2 questions:
    1) I see there are several inputs for Voltage from 0V – 1000V. My first question is how can I select a range of fe150V?
    In such case, what will the accuracy at low voltages fe 4V (I need accuracy of 2 decimals)?
    Is there an option to switch between 2 ranges in one single sensor?
    2) If I adjust the output range to 0-10V (this is my acceptable PLC input), what will be the output in case of reverse polarity connection? I really want to avoid a negative signal on my PLC input.
    From: Curtis | Date: 21/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Select required measuring range as you like from the pull down menu seen on the web site, and accuracy is: 0.2%F.S.
      No option is to switch between 2 ranges in one single sensor.
    2. This is a DC voltage sensor, so the input voltage cannot reverse polarity connection, otherwise it may cause damage to the sensor.
