3 Phase AC Current Transducer 0.5A/1A/2A/5A/10A/20A/50A to 80A

5 out of 5 based on 2 reviews | Write a review

$161.39

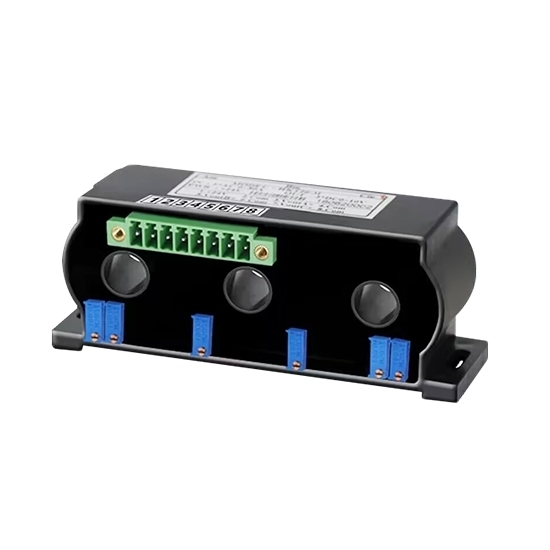

AC current transducer is a special current sensor for 3 phase AC current measurement. Three phase current transducer adopts epoxy resin pouring sealant to ensure the stability of components, with 0.5%FS accuracy, three output signals 4-20mA/0-20mA/0-5V/0-10V, power supply DC 5V/12V/24V, fixed installation. 3 phase AC current transducer is widely used for real-time monitoring of power grid AC current.

Measuring Range *
Output Signal *
Power Supply *

SKU: ATO-CUS-3AC80

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
PDF Catalog

3 phase AC current sensor has measuring range of 0.5A/1A/2A/5A/10A/20A/50A to 80A.

Specification:

Model	ATO-HKT27-3I
Shipping weight	1kg
Measuring range of input current *	3 phase AC 0-0.5A ~ 0-80A
Output signal *	DC 4-20mA, DC 0-20mA, DC 0-5V, DC 0-10V
Power supply *	DC 12V, DC 24V
Accuracy	0.5%FS
Linearity	0.1%FS
Isolation voltage	3kV/50Hz/1min
Offset voltage	≤10mV
Temperature drift	≤100PPM/℃
Frequency bandwidth	20~5kHz
Current consumption	＜5mA+output current
Load capacity	Voltage output: 5mA, current output: 6V
Response time	＜250ms
Overload capacity	30 times nominal input
Work temperature	-10~+70℃
Storage temperature	-25~+85℃
Measuring method	Through-hole
Hole diameter	20mm
Installation	Screw fixation

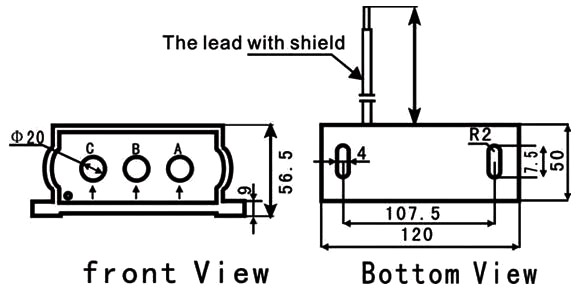

Dimensional drawing (unit: mm):

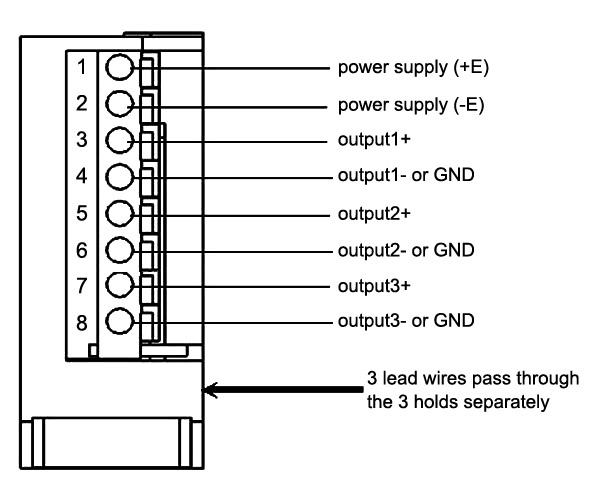

Wiring diagram:

Tips: 3 phase AC current transducer application
The 3 phase AC current transducer has three 20mm holes, which can simultaneously collect A/B/C three-phase current. It is mainly used in the mining machinery factory for three-phase current detection of the power supply. The AC current transducer adopts special design, with integral potting shell, spring pressure terminals, low cost, small footprint, strong earthquake resistance, etc. It can be well applied to mining machinery and coal mining with strong vibration and serious dust pollution and other heavy industries. The three-phase AC current transducer can enable the operator to understand and master the working status of the shearer in real time. The three-phase current transducer is mainly used for monitoring the three-phase current of the power line, including sampling the front and rear cutting motor and the traction motor. The sampling signal is converted into a digital quantity in the input acquisition module and then sent to the PLC host unit for performing electrical protection and data display on meter.

Download ATO current sensor catalog (pdf).

Existing reviews of 3 Phase AC Current Transducer 0.5A/1A/2A/5A/10A/20A/50A to 80A

What is the meaning of the “overload capacity” of AC current transducer?

Thank you for the reply. I have another question: what is the meaning of the “overload capacity” in the datasheet? It’s specified as “30 times nominal input”.
Does this mean that the normal working range is between 0-80A, but the transducer can handle up to 2400A for a short period of time? If yes, how long can it withstand the overloading?

From: kolt | Date: 05/04/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Overload capacity is the instantaneous overload capacity.
It can handle up to 2400A for a short period of time, and the longest time it can withstand is only 5 seconds.
