    AC Voltage Sensor, Range 10V to 1000V, Power Supply DC 12V/24V/36V

    5 out of 5 based on 1 reviews | Write a review

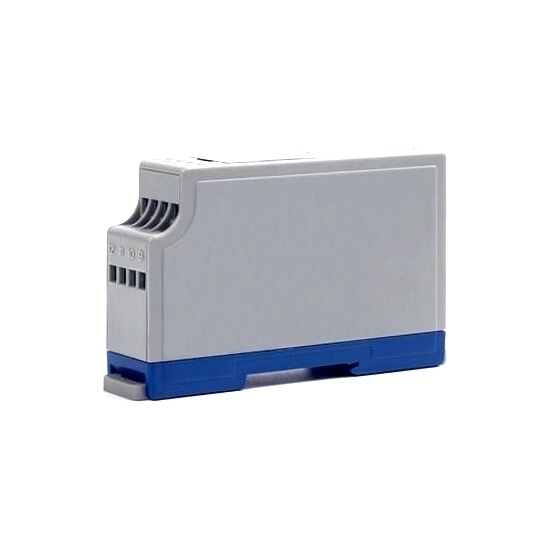

    AC voltage sensors have voltage measuring range from 10V/50V/100V/200V/500V/800V to 1000V, supply voltage DC 9V~36V, work temperature -25~+70℃, frequency range 25Hz ~ 3kHz and good EMC design. Voltage sensors have two installation methods, DIN rail installation and M3 screw fixation.
    SKU: ATO-VOS-AC1000
    Free Shipping Worldwide
    Delivery date: 6-12 days

    AC voltage sensor has measuring range of AC 10V/50V/100V/200V/300V/500V/800V to 1000V.


    Model ATO-WBV412M05 ATO-WBV414M05
    Shipping weight 1kg
    Measuring range of input voltage * AC 0-10V ~ 0-1000V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Frequency range 25Hz ~ 3kHz
    Output signal * DC 0-5V, 0-10V (only for power supply DC 24V), 1-5V DC 4-20mA, 0-20mA
    Power supply DC 9V~36V
    Accuracy 0.2%F.S.
    Load capacity 5mA 300Ω
    Response time ≤300ms
    Temperature drift 100*10-6/℃ 150*10-6/℃
    Static power consumption 0.6W
    Output ripple voltage ≤10mV (RMS)
    Isolation features Isolation between input, output and power supply
    Isolation voltage Input and output: AC 2.5kV, 1min
    Power supply and input: AC 2.5kV, 1 min
    Power supply and output: AC 2.5kV, 1 min
    Work temperature -25~+70℃
    Storage temperature -40~+85℃
    Protection features EMC standards: EN61326: 2006
    Safety standards: EN60100:2001
    Mean time between failures >50000h
    Housing material PC + fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

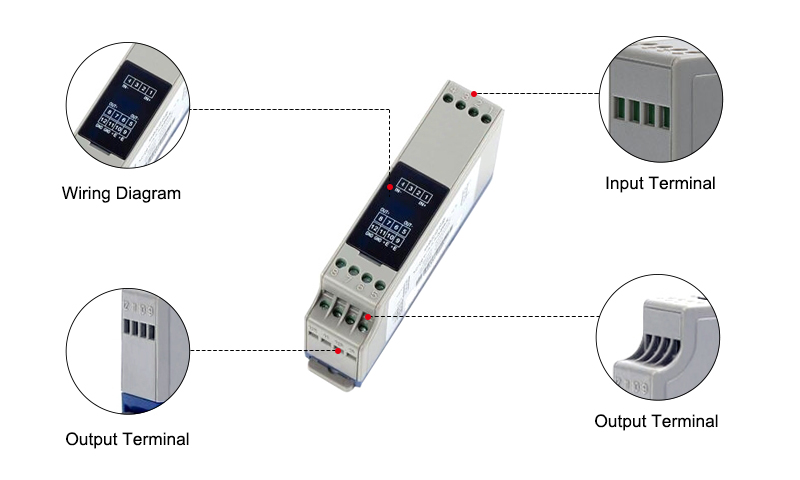

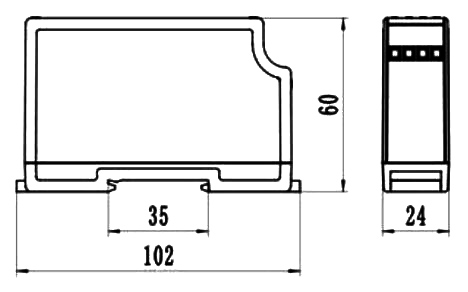

    Voltage sensor AC 10V to 1000V dimensional drawing (unit: mm):
    AC voltage sensor 10V to 1000V power supply DC 12V/24V/36V dimension

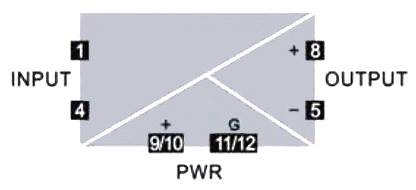

    Voltage sensor AC 10V to 1000V wiring diagram:
    AC voltage sensor 10V to 1000V power supply DC 12V/24V/36V wiring
    Tips: How to choose a voltage sensor?

    In the voltage measurement, the appropriate voltage sensor should be selected according to the specific situation. The basic principles of voltage sensor selection are:

    1. The range of the measured voltage is an important basis for selecting a voltage sensor, so there must be a wide enough voltage measurement range.
    2. Confirm the output signal and power supply of the voltage transducer.
    3. The response time is fast enough, especially for overload protection, the response time of the voltage sensor must be fast enough.
    4. The voltage sensor should have a wide enough frequency range and high enough measurement accuracy. If the frequency exceeds the measurement range, waveform distortion will occur in actual use.
    5. The voltage transducer has sufficiently high input impedance. The input resistance of the voltage sensor is the additional load of the circuit under test. In order to reduce the impact of the access of the measurement circuit on the circuit under test, it is required to have higher input impedance.
    6. Confirm whether the voltage sensor isolation level is met environmental requirements, the isolation voltage is high enough, and the safety factor reaches the standard.
    7. The voltage sensor should have high anti-interference ability, because the measured voltage often contains some components that do not need to be measured, such as noise interference.
