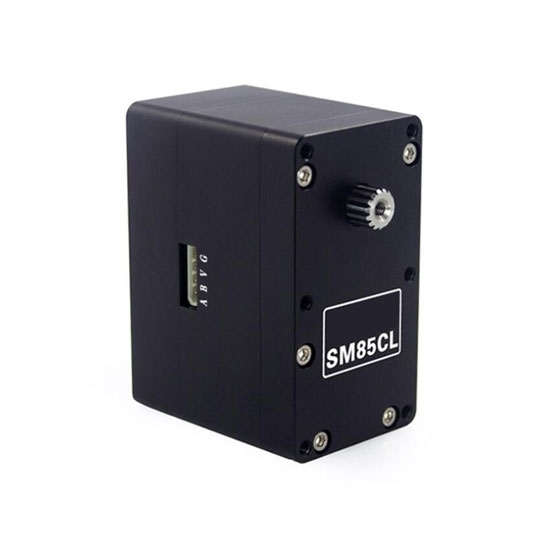

    85 kg·cm (8 Nm) RC Servo Motor, 12V

    5 out of 5 based on 1 reviews | Write a review
    $379.99
    Brushless high torque RC servo motor for sale, with 85kg·cm stall torque, 12V operating voltage. This radio control servo is used for steering, vehicle, robot joints and arms, etc., and can control continuous rotation in forward and reverse directions at a constant speed. The remote control servo is a core motor with steel gear, small size, and high precision.
    SKU: ATO-SERVO-RC85
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    85 kg·cm micro remote control servo has a high-precision brushless motor, engineered for superior performance and durability. Digital radio control (RC) steering servos are widely used in various remote-controlled systems, such as model airplanes, cars, boats, and robots.

    Features

    • High resolution: Micro RC servo motor uses a non-contact absolute 12-bit encoder (360 degrees 0.088 degrees) with high resolution.
    • Serial bus type: Radio control servo motor supports serial bus daisy chain, 254 ID addresses are optional.
    • Position servo control mode: Digital remote control servo can rotate 0~360° and multiple turns of any absolute angle.
    • Speed ​​control mode: With a wide speed adjustment range, it can control continuous rotation in forward and reverse directions at a constant speed.
    • One-button setting of intermediate position: The current position can be freely defined as the initial or intermediate point.

    Specification

    Model ATO-SM8512BL
    Electrical Specification Operating Voltage 12V
    No Load Speed 0.27sec/60°
    Idle Current (at Stopped) 40mA
    Running Current (No Load) 200mA
    Stall Torque 85 kg·cm (8 Nm)
    1182.5oz. in
    Stall Current (at Locked) 3200mA
    Mechanical Specification Size 62*34*47mm
    Limit Angle No Limit
    Case Material Aluminum
    Gear Material Steel Gear
    Bearing Type 2 Ball Bearings
    Weight 140g
    Horn Type 15T (7.6mm)
    Connector Wire 150mm ± 5mm
    Motor Core Motor
    Storage Temperature Range -30℃ ~ 80℃
    Operating Temperature Range -20℃ ~ 70℃
    Temperature Range 25℃ ± 5 ℃
    Humidity Range 65% ± 10%
    Certificate EMC, ROHS
    Control Specification Command Signal Bus Packet Communication RS485
    Amplifier Type Half Duplex Asynchronous Serial Communication
    Pulse Width Range 0-253
    Neutral Position 38400bps ~ 1 Mbps
    Running Degree 360° (when 0 ~ 4096)
    Feedback Load, Speed, Input Voltage
    Position Sensor (Resolution) 12 Bits Magnetic Coding (360° / 4096)

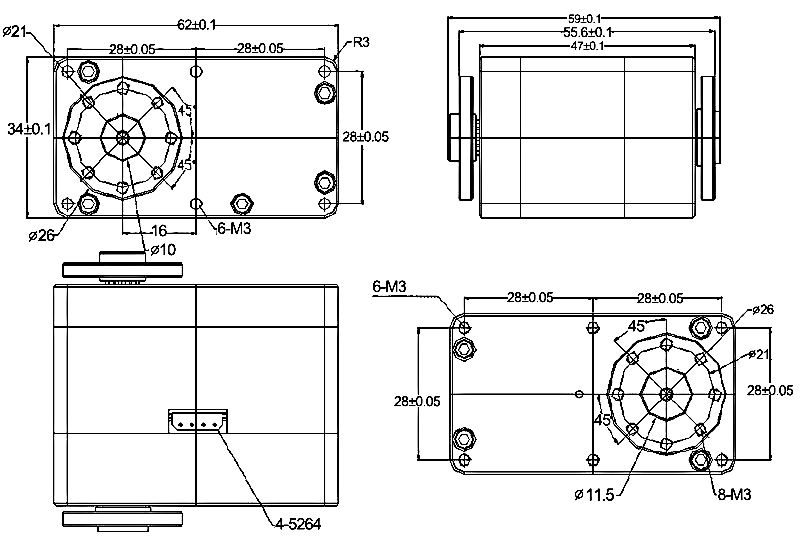

    Dimensions (Unit: mm)

    Dimensions of 80kg.cm Micro RC Servo Motor

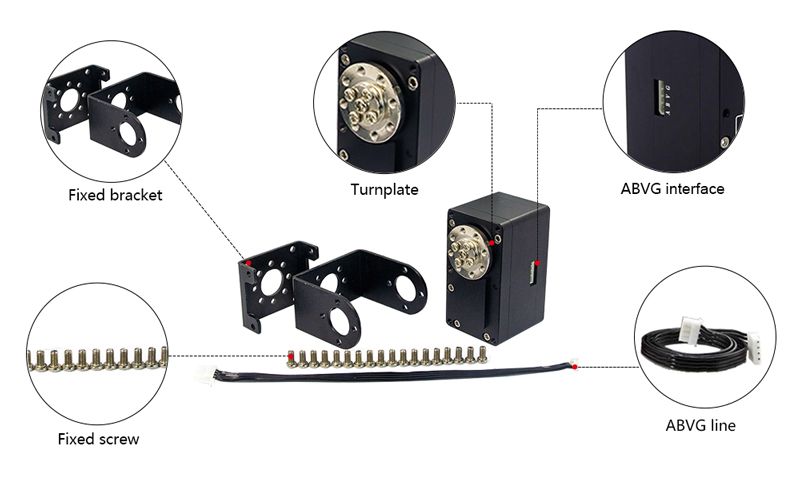

    Details

    85kg RC Servo Motors Details

    Tips: RC servo motor operation and performance characteristics

    The digital radio control servo motor is widely used in automatic control occasions. Its output torque, rotation speed, command update frequency, etc. standardizes the working performance of the radio control servo motor. Normally, the operation of the micro remote control servo motor depends on the unique pulse command high-level time width and has nothing to do with the frequency of the pulse command. Therefore, the function of the pulse waveform that controls the RC servo motor and the PWM waveform that controls the operation of the motor are different. There is a drive circuit board inside the RC servo motor to ensure a proportional relationship between the output angle and the width of the pulse command. The output angular speed of the RC steering servo motor depends on various factors such as the internal mechanical structure, the performance of the motor, and the working voltage. Since the speed of the RC servo motor has nothing to do with the command, in essence, it is not a linear model. When it rotates at a larger angle, its dynamic nonlinearity is more obvious.

    This video briefly shows the application of the ATO servo system in a linear slide.

    VFD Two-Wire Control Wiring with Push Button for Forward Motor

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    Existing reviews of 85 kg·cm (8 Nm) RC Servo Motor, 12V
    What modifications need to be made for continuous rotation of 12V RC servo motor?
    What modifications to be made to have 12V RC servo motor for continuous rotation?
    From: Hagcard | Date: 28/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Just the 12V RC servo drive needs to be connected with the PLC or other analog control signals.
