    35 kg·cm (3.5 Nm) RC Servo Motor, 6V/ 7.4V

    5 out of 5 based on 1 reviews | Write a review
    $179.99
    35 kg·cm (3.5 Nm) torque RC servo motor is a small digital radio control servo motor with high precision non-contact magnetic encoder position sensor and double ball bearings. Selectable 6V or 7.4V operating voltage, waterproof grade IP54. This remote control servo is used for RC cars, model planes, submarines, remote-controlled robots, etc.
    *
    SKU: ATO-SERVO-RC35
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    35 kg·cm RC radio control servo motor is a compact digital servo featuring a high-precision non-contact magnetic encoder for position sensing and double ball bearings for smooth operation. This remote control servo is commonly used for RC cars, model airplanes, submarines, and remote-controlled robots, due to its ability to offer precise steering, positioning, and actuation in dynamic environments.

    Specification

    Model ATO-FT5835M
    Electrical Specification Operating Voltage 6V 7.4V
    No Load Speed 0.238sec/60° 0.192sec/60°
    Running Current (No Load) 100mA 290mA
    Stall Torque (at Locked) 28.8 kg·cm (2.8 Nm) 35.5 kg·cm (3.5 Nm)
    Stall Current (at Locked) 3.2A 3.9A
    Idle Current (at Stopped) 6mA 6mA
    Input Voltage 4V-8.4V
    Rated Torque 9.5kg·cm 11.8kg·cm
    Rated Current 1A 1.2A
    Mechanical Specification Size 40*20*43mm
    Limit Angle No Limit
    Case Material PA + Aluminum
    Gear Material Steel Gear
    Bearing Type Ball Bearing
    Angle Sensor Type Carbon-Film Potentiometer
    Angle 220°
    Life 1000000 Cycles Min
    Connector & Cable Type JR
    Material PVC
    Length 30cm
    Pin Definition 1: Signal; 2: Vcc; 3. GND
    Weight 74g
    Horn Type 25T/ 5.9mm
    Gear Ratio 1/356
    Back Lash ≤0.5°
    Rocker Phantom
    Rocker Screw M3*6
    Motor Core Motor
    Storage Temperature Range -30℃ ~ 80℃
    Operating Temperature Range -20℃ ~ 60℃
    Temperature Range 25℃ ± 5 ℃
    Humidity Range 65% ± 10%
    Certificate EMC, ROHS
    Control Specification Command Signal Pulse Width Modification (PWM)
    Control System Type Digital Comparator
    Operating Travel 180° (at 500 to 2500 μsec)
    Left & Right Travelling Angle deviation ≤5°
    Centering Deviation ≤1°
    Neutral Position 1500 μsec
    Dead Band Width ≤4 μsec
    Rotating Direction Counterclockwise (at 1500 to 2000 μsec)
    Pulse Width Range 500 to 2500 μsec
    Electronic Protection Stall 8 sec
    Temperature Protection >70℃
    Reliability Testing Life Test >100000 Times
    Motor Noises 45 ± 5dB
    Servo Noises 60 ± 5dB
    Waterproof Performance IP54


    Dimensions (Unit: mm)

    Dimensions of 35 kg.cm RC Servo Motor

    Waterproof details

    • A waterproof rubber ring is added to the connection of the radio control servo motor.
    • The circuit board of the RC servo motor is waterproofed with three-proof paint.
    • The remote control servo motor is sealed.
    • The potentiometer is sealed.

    Details

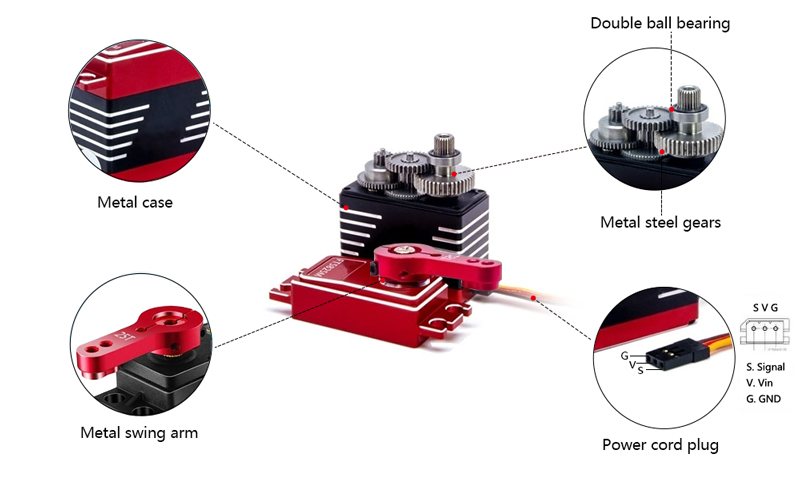

    35KG RC Servo Motors Details

    Tips: RC servo motor working principle

    The working principle of the micro radio control servo motor is that the control circuit receives the control signal from the signal source and drives the motor to rotate. The gear set multiplies and reduces the speed of the motor, and enlarges the output torque of the motor by the response multiple, and then outputs. The potentiometer and the final stage of the gear set rotate together to measure the rotation angle of the steering gear shaft. The circuit board detects and judges the rotation angle of the steering gear according to the potentiometer, and then controls the radio control servo motor to rotate to the target angle or keep it at the target angle. Its working process is: control signal → control circuit board → motor rotation → gear set deceleration → steering wheel rotation → position feedback potentiometer → control circuit board feedback.

    This video briefly shows the application of the ATO servo system in a linear slide.

    VFD Two-Wire Control Wiring with Push Button for Forward Motor

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.
