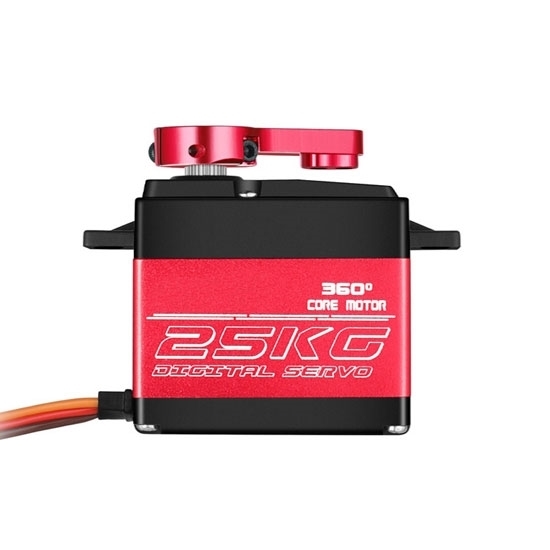

    25 kg·cm (2.5 Nm) RC Servo Motor, 6V/ 7.4V

    5 out of 5 based on 1 reviews | Write a review
    $125.99
    Micro radio control (RC) servo motor for sale at a favorable price, with 25 kg·cm (2.5 Nm) stall torque, optional 6V or 7.4V operating voltage, waterproof grade IP54. This digital remote control servo comes with steel gear and double ball bearings, a compact design, and high precision.
    *
    SKU: ATO-SERVO-RC25
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    6V/7.4V micro radio control (RC) servo motor utilizes a 12-bit high precision non-contact magnetic encoder for position sensing, enabling it to achieve 360 degree absolute position control. This digital remote control servo is ideal for demanding robotics, model control, and industrial automation applications.

    Specification

    Model ATO-FT6325M
    Electrical Specification Operating Voltage 6V 7.4V
    No Load Speed 0.185sec/60° (54rpm) 0.151sec/60° (66rpm)
    Running Current (No Load) 100mA 120mA
    Stall Torque (at Locked) 20.5 kg·cm (2 Nm) 25 kg·cm (2.5 Nm)
    285.19oz. in 347.79oz. in
    Stall Current (at Locked) 3A 3.5A
    Idle Current (at Stopped) 6mA 6mA
    Input Voltage 4V-8.4V
    Rated Torque 7.0 kg·cm 8.5 kg·cm
    Rated Current 1000mA 1200mA
    Mechanical Specification Size 55*20*43mm
    Limit Angle No Limit
    Case Material PA + Aluminum
    Gear Material Steel Gear
    Bearing Type Ball Bearing
    Angle Sensor Type 12 Bite Magnetic Encoded
    Angle 360 °
    Life No Limit
    Connector & Cable Type JR
    Material PVC
    Length 30cm
    Pin Definition 1: Signal; 2: Vcc; 3: GND
    Weight 67g ±1g
    Horn Type 25T/ 5.9mm
    Gear Ratio 1/275
    Back Lash ≤0.5°
    Rocker Phantom
    Rocker Screw M3*6
    Motor Core Motor
    Storage Temperature Range -30℃ ~ 80℃
    Operating Temperature Range -20℃ ~ 60℃
    Temperature Range 25℃ ± 5 ℃
    Humidity Range 65% ± 10%
    Certificate EMC, ROHS
    Control Specification Command Signal Pulse Width Modification (PWM)
    Control System Type Digital Comparator
    Operating Travel 360° (at 500 to 2500 μsec)
    Left & Right Travelling Angle deviation ≤1°
    Centering Deviation ≤1°
    Neutral Position 1500 μsec
    Dead Band Width ≤4 μsec
    Rotating Direction Counterclockwise (at 1500 to 2000 μsec)
    Pulse Width Range 500 to 2500 μsec
    Electronic Protection Stall 8 sec
    Temperature Protection >70℃
    Reliability Testing Life Test >100000 Times
    Motor Noises 45 ± 5dB
    Servo Noises 60 ± 5dB
    Waterproof Performance IP54

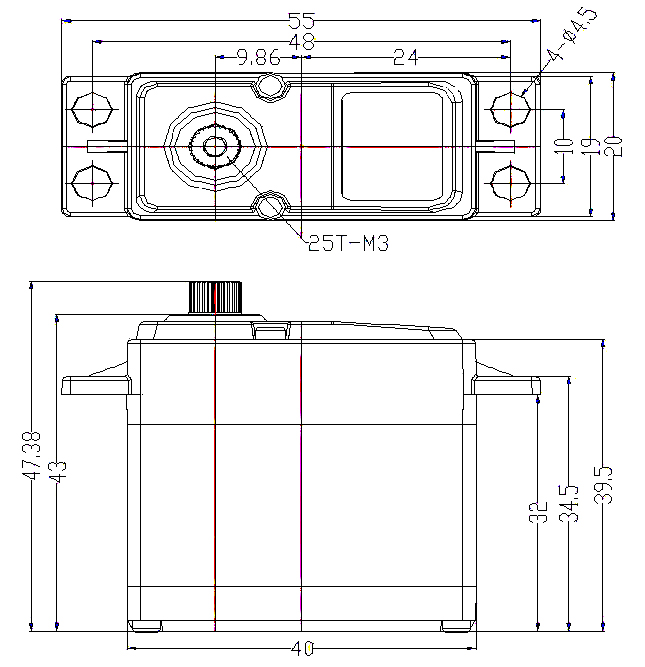

    Dimensions (Unit: mm)

    Dimensions of 25 kg.cm Micro RC Servo Motor

    Waterproof details

    • A waterproof rubber ring is added to the connection of the radio control servo motor.
    • The circuit board of the RC servo motor is waterproofed with three-proof paint.
    • The remote control servo motor is sealed.
    • The potentiometer is sealed.

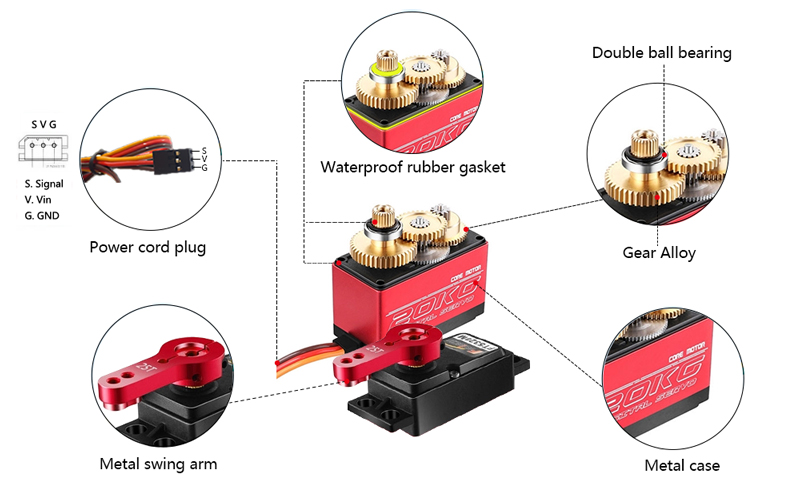

    Details

    25KG RC Servo Motors Details

    Tips: Micro RC control servo motor applications

    Digital RC control servo motors are widely used in applications where precise and compact movement is required. Due to their small size and high precision, they are ideal for robotics, drones, and model vehicles such as cars, planes, and boats. These motors are also commonly found in remote-controlled aircraft for controlling the ailerons, rudders, and elevators, ensuring stable flight control. In robotics, they enable precise joint movements in humanoid or industrial robots.

    Additionally, radio control servo motors are used in automation systems where space is limited but high accuracy is needed, such as in medical devices, optical systems, and camera equipment. They are also useful in hobbyist applications like remote controlled cars, robots, and robotic arms, where customization and fine-tuned performance are critical. The non-contact magnetic encoder technology ensures these motors deliver smooth operation with a long lifespan, making them highly reliable for various high-performance, precision-demanding tasks.
