    30 kg·cm (3 Nm) RC Servo Motor, 6V/ 7.4V

    5 out of 5 based on 1 reviews | Write a review
    $168.99
    Low cost micro RC radio control servo motor is a core motor with 30 kg·cm (3 Nm) stall torque, 220° angle sensor, steel gear and double ball bearings, and selectable 6V or 7.4V operating voltage. High torque digital remote control servo is compact and waterproof, best for RC car, RC planes, and other steering equipment.
    *
    SKU: ATO-SERVO-RC30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital 30 kg·cm radio control (RC) servo motor features a core motor with a 220° angle sensor, steel gears, and operating voltages of 6V or 7.4V. ATO micro remote control servo is compact and waterproof, making it ideal for use in RC cars, planes, and other steering systems.

    Specification

    Model ATO-FT5830M
    Electrical Specification Operating Voltage 6V 7.4V
    No Load Speed 0.25sec/60° 0.2sec/60°
    Running Current (No Load) 100mA 250mA
    Stall Torque (at Locked) 24.5 kg·cm (2.4 Nm) 30.5 kg·cm (3 Nm)
    Stall Current (at Locked) 3A 3.5A
    Idle Current (at Stopped) 6mA 6mA
    Input Voltage 4V-8.4V
    Rated Torque 8.0kg·cm 10kg·cm
    Rated Current 1A 1.2A
    Mechanical Specification Size 40*20*43mm
    Limit Angle No Limit
    Case Material PA + Aluminum
    Gear Material Steel Gear
    Bearing Type Ball Bearing
    Angle Sensor Type Carbon-Film Potentiometer
    Angle 220 °
    Life 1000000 Cycles Min
    Connector & Cable Type JR
    Material PVC
    Length 30cm
    Pin Definition 1: Signal; 2: Vcc; 3: GND
    Weight 74g
    Horn Type 25T/ 5.9mm
    Gear Ratio 1/356
    Back Lash ≤0.5°
    Rocker Phantom
    Rocker Screw M3*6
    Motor Core Motor
    Storage Temperature Range -30℃ ~ 80℃
    Operating Temperature Range -20℃ ~ 60℃
    Temperature Range 25℃ ± 5 ℃
    Humidity Range 65% ± 10%
    Certificate EMC, ROHS
    Control Specification Command Signal Pulse Width Modification (PWM)
    Control System Type Digital Comparator
    Operating Travel 180° (at 500 to 2500 μsec)
    Left & Right Travelling Angle deviation ≤5°
    Centering Deviation ≤1°
    Neutral Position 1500 μsec
    Dead Band Width ≤4 μsec
    Rotating Direction Counterclockwise (at 1500 to 2000 μsec)
    Pulse Width Range 500 to 2500 μsec
    Electronic Protection Stall 8 sec
    Temperature Protection >70℃
    Reliability Testing Life Test >100000 Times
    Motor Noises 45 ± 5dB
    Servo Noises 60 ± 5dB
    Waterproof Performance IP54

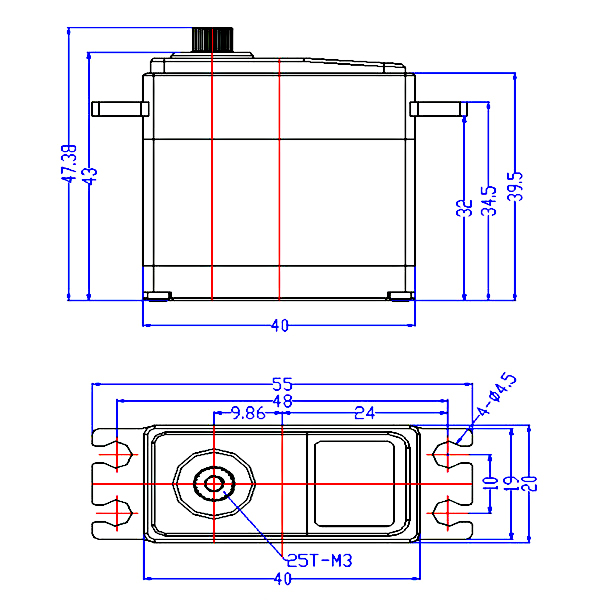

    Dimensions (Unit: mm)

    Dimensions of 30kg.cm RC Servo Motor

    Waterproof details

    • A waterproof rubber ring is added to the connection of the radio control servo motor.
    • The circuit board of the RC servo motor is waterproofed with three-proof paint.
    • The remote control servo motor is sealed.
    • The potentiometer is sealed.

    Details

    30KG RC Servo Motors Details

    Tips: Structure of micro RC servo motor

    The structure of a micro RC servo motor consists of several key components working together to provide precise control and high torque. At its core, the servo includes a small electric motor that drives the mechanism. The motor is coupled with a set of gears, often made from durable materials like steel, which help to amplify the torque and reduce wear. A typical radio control servo uses a system of metal or plastic gears, which are supported by double ball bearings for smooth and efficient movement.
    Additionally, a position feedback sensor, usually an angle sensor, is integrated into the digital RC servo to provide real-time position data. This allows the remote control servo to make precise adjustments based on the control signal. The motor's casing is typically waterproof, ensuring it can function in various environmental conditions, such as RC cars, boats, or planes. The servo’s compact size, combined with selectable voltage options, makes it versatile for various RC applications.
