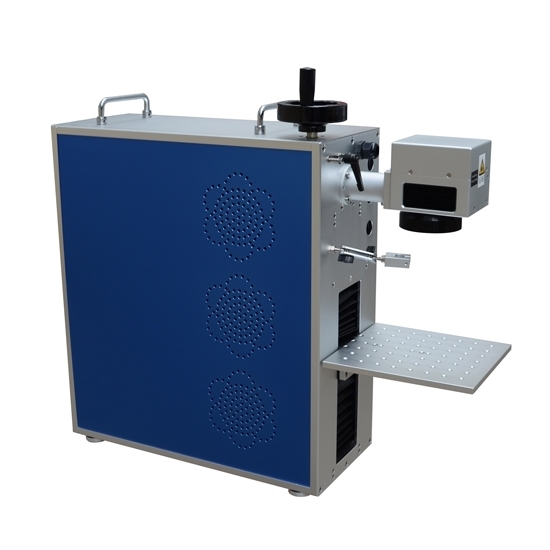

20w All-in-one Portable Fiber Laser Marking Machine

5 out of 5 based on 1 reviews | Write a review
$13,181.82
Favorable price portable fiber laser marking machine, faster marking speed, more sophisticated engraving effect, 20w output power, maintenance-free and long service life.
SKU: ATO-F20PI
30-day Returns
Free Shipping
Delivery date: 6-12 days

Fiber laser marking system features:

  • Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
  • 100,000+ hours of laser life, reducing costs and production downtime.
  • 110mm2 mark field (other sizes available).
  • No consumables and minimal maintenance help reduce operating costs.
  • Air-cooled 10W-20W models.
  • Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
Basic Information
Model ATOF20PI
Weight 44 lbs. (20 kg)
Dimension 700mm x 210mm x 650mm (27.56" x8.27"x25.59")
Distance (scanner to working plateform) 160~284mm (6.3" x 11.18")
Platform size 210mm x 150mm (8.27" x 5.91")
Warranty 2 Years
System Technical Specifications
Laser type Fiber; Ytterbium doped
Output power 10W, 20W
Power requirements 10W 20W: 220 V AC, 16 A, 50/60 Hz
Wavelength 1070 nm
M2 <1.4
Operation mode Pulsed
Pulse rep rate 20-80 kHz
Cooling 10-20W: Fan assisted air cooling
Scanning method XY galvanometer
Max line speed 7,000 mm/sec
Controls LEC 1 industrial computer based controller
Communications USB ports, Ethernet, EtherNet/IP™, RS232
Documentation USB flashdrive with operator's manual and integration guide; Online video troubleshooting
Lens Configurations
Lens Marking field Focal length
100mm 65mm x 65mm (2.5" x 2.5") 97mm (3.82")
160mm 110mm x 110mm (4.3" x 4.3") 175mm (6.89")
254mm 175mm x 175mm (6.9" x 6.9") 296mm (11.65")
330mm 228.6mm x 228.6mm (9" x 9") 387mm (15.23")

Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

Tips: Operation cautions of laser marking machine

  1. Before marking, test on scrap first. Mark bulk product after no error is found. Before marking codes, check the code carefully, for fear of any mistake.
  2. Make sure that the fiber laser marking machine is started up and shut down normally. Avoid sudden power lost or direct power off. The general order is as below: Turn on the power, start up the machine, work normally, shut down, and turn off the power.
  3. Before starting up the laser marking machine, take down the protective cover of the laser head. When starting up the machine, don't put any object under the laser head, for fear that the laser light will break the object.
  4. Be careful when using the machine, in case of being injured. When marking, don't put your hand under the laser light to prevent being hurt.
  5. After use, turn off the computer and the laser marking machine. Cover the machine up.
Existing reviews of 20w All-in-one Portable Fiber Laser Marking Machine
The best fiber laser marking machine
This fiber laser marking machine is great. We use it for marking, it is easy to operate and accurate engraving. The price is also very cheap.
From: Lukas | Date: 14/03/2021
Was this review helpful? Yes No (0/0)
