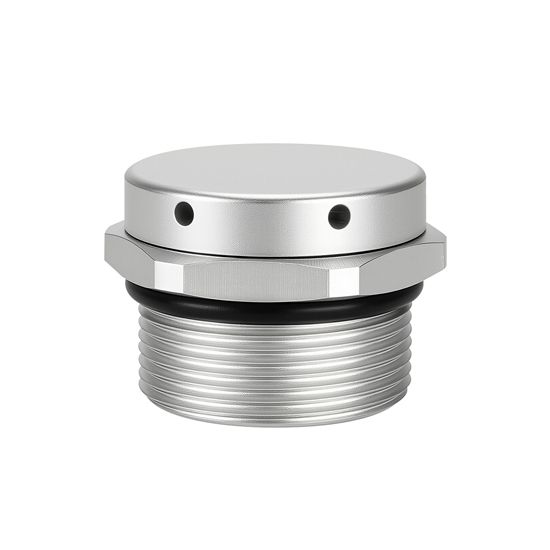

Waterproof Aluminum Alloy Breather Vent Plug, IP67

The aluminum alloy breather vent plug is waterproof, breathable, dustproof, acid and alkali resistant, suitable for battery packs and battery boxes of base station equipment, solar energy industry, high-power energy storage equipment, etc.

Specifications

• Model: ATO-MS-LC-6061
• Material: 6061 Aluminum Alloy
• Temperature Resistance: -40℃ to 125℃
• Moisture Permeability: >5000g/24H.M2
• Hydrostatic Pressure Resistance: ≥100mbar for 30min
• Protection Level: IP67
• Features: Dustproof, Hydrophobic, Breathable, Heat Dissipation

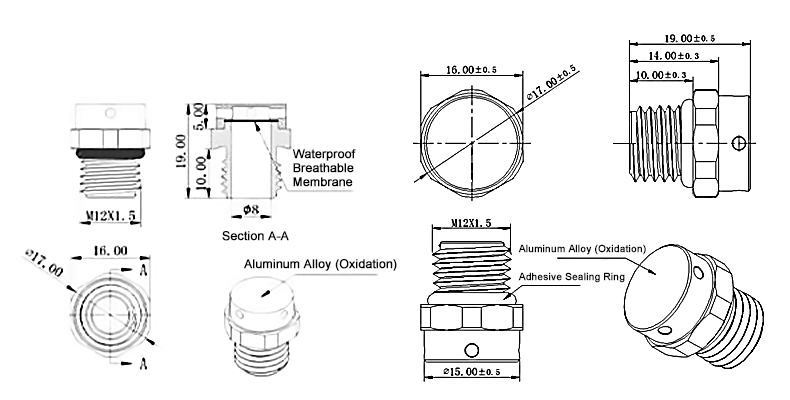

Dimension (Unit: mm)

Details

Applications

ATO air vent plugs can be widely used in battery packs and battery boxes of base station equipment, new energy electric vehicles, hybrid vehicles, the solar energy industry, high-power energy storage equipment, and various outdoor electrical equipment products.

Tips: Functions of the Vent Plug

• Dustproof: The vent plug prevents dust and other solid particles from entering the system, keeping internal components clean and protected.
• Hydrophobic: It repels water and moisture, stopping liquids from penetrating while still allowing air to pass through.
• Breathable: The breathable vent plug allows air and gases to flow in and out, balancing internal pressure and preventing vacuum or overpressure conditions.
• Heat Dissipation: By enabling airflow, it helps dissipate heat from enclosed spaces, preventing overheating and maintaining optimal operating temperatures.
