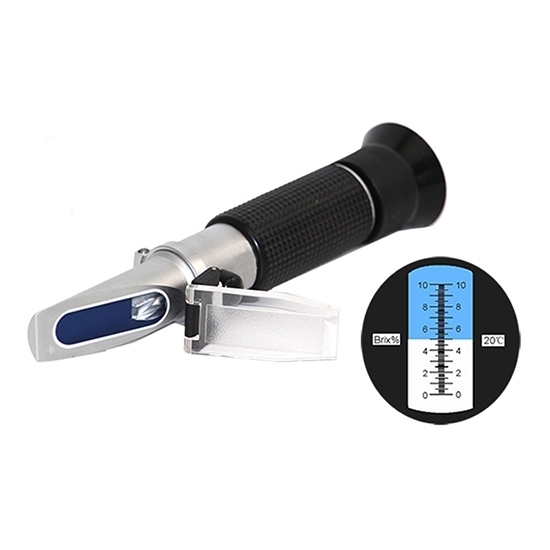

Brix Refractometer, Salinity/Honey/Coolant/Alcohol Measurement

5 out of 5 based on 1 reviews | Write a review

$80.72

Brix refractometer for sale. 8 measurement ranges optional, 0~10%/ 20%/ 32%/ 50%/ 80%/ 90%, 28~62%, 45~82%. It integrates brix meter, salinity refractometer, honey refractometer, coolant refractometer, alcohol refractometer, antifreeze refractometer in one. Refractometer price, hand-held design makes it portable and easy to maintain.

SKU: ATO-BRM-0082

Model and Brix Range *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Refractometer Manual

Brix refractometer applications: Measurement for liquid specific density include brix, salinity, antifreeze, soy milk/milk, alcohol/wort, fruit drink sugar, honey Baume (°Bé), coolant (cutting fluid) concentration, etc. It is an ideal meter for food production, beverage production, marine aquaculture, aquarium and other light industries.

Specification

Model	ATO-BRM-010	ATO-BRM-020	ATO-BRM-032	ATO-BRM-050	ATO-BRM-080	ATO-BRM-090	ATO-BRM-2862	ATO-BRM-4582
Brix Measurement Range	0~10%	0~20%	0~32%	0~50%	0~80%	0~90%	28~62%	45~82%
Minimum Division	0.2%	0.1%	0.2%	0.5%	1%	0.5%	0.2%	0.5%
Accuracy	±0.2%	±0.1%	±0.2%	±0.5%	±1%	±0.5%	±0.2%	±0.5%
Body Length	200mm	175mm	175mm	155mm	150mm	150mm	165mm	150mm
Weight	106g	92g	93g	87g	87g	86g	91g	89g
Temperature Compensation Range	10~30℃
Reference Temperature	30℃
Material	Aluminium Alloy/Copper
Certificate	CE
Package Includes	1) 1 x Refractometer 2) 1 x pipette 3) 1x instruction manual 4) 1x mini screw driver 5) 1x cleaning cloth

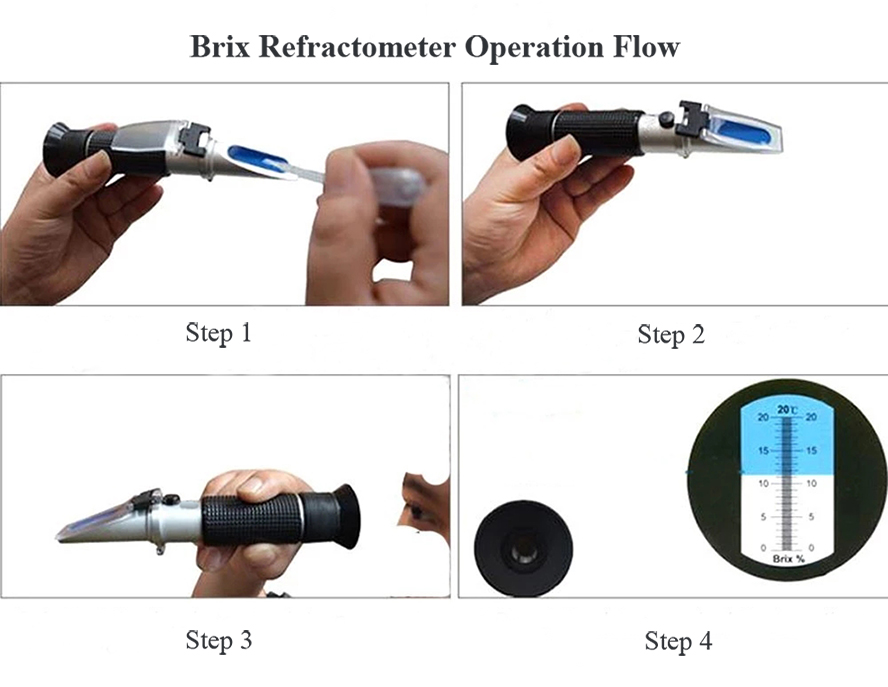

Brix Refractometer Operation Flow

Open the cover and carefully clean the inspection prism with a soft cloth.
Take a few drops of tested solution and place it on detection prism. Then gently close the cover to avoid air bubbles and allow the solution to spread over the prism surface.
Align light source or bright spot, eyes observe view field through eyepiece.
Turn the adjustment handwheel of eyepiece to make the blue-white boundary of view field clear. The scale value of dividing line is the concentration of solution.

$Brix Refractometer Operation Flow$

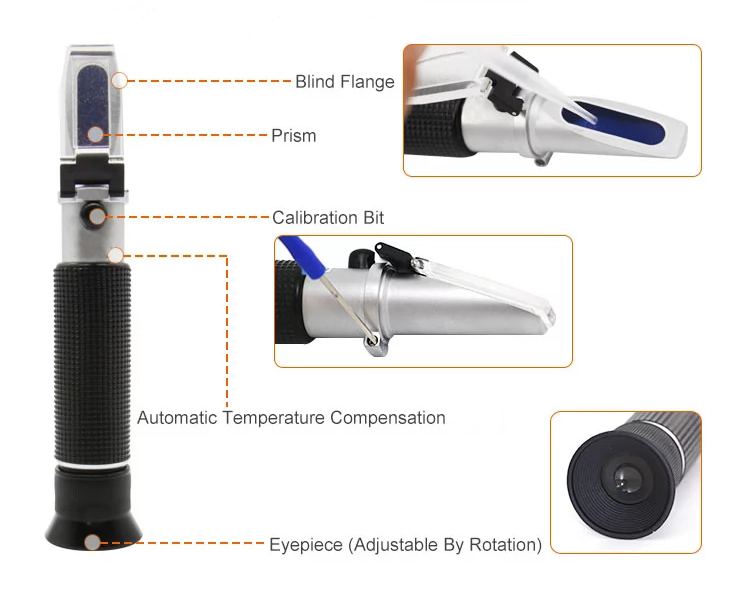

Brix Refractometer Parts Structure Diagram

$Brix Refractometer Parts Structure Diagram$

Tips: Selection of brix refractometer products and measurement range.

Application	Recommended products and measurement range
Fruit, juice, sugar (low concentration)	Brix refractometer 10%、20%、32%、50%
Maltose, glucose syrup, sugar (high sugar content)	Brix refractometer 80%、90%
Honey (high concentration, Baume)	Moisture 12~27% High brix 58~90% Baume degree 38~43°Bé
Milk, soy milk (with brix)	Milk 0~20 Soy milk 0~25
Edible product testing (salinity, saltiness)	Salinity refractometer 0~28%
Marine aquaculture, aquarium (salinity specific gravity test)	Salinity refractometer 0~100‰, specific gravity 1.000~1.070
Car ice point (freezing point) test	Antifreeze freezing point -50~0°C Glass liquid freezing point -40~0°C Battery liquid specific gravity 1.10~1.40

ATO Refractometer Operation Manual PDF
