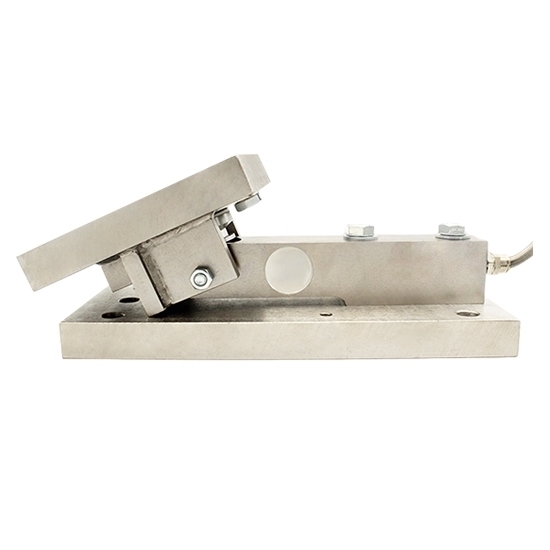

Cantilever Beam Load Cell Module, 2 ton/5 ton/10 ton/20 ton

5 out of 5 based on 1 reviews | Write a review

$332.92

Cantilever beam load cell module with self-stabilizing loading head, horizontal displacement protection, and durable 42CrMo alloy steel construction. Capacities from 2–20 ton, ideal for conveyors, roller tracks, and dynamic weighing applications.

Capacity *

SKU: ATO-LCM-CB

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Cantilever load cell module for dynamic weighing, conveyor weighing, and production line weighing applications. Available from 0.3 ton to 20 ton, it provides accurate weight measurement, stable performance, and reliable operation in industrial environments.

Specification

Model		ATO-DYCW
Rated capacity (Emax)		0.5;1;2	3	5;7.5	10
Accuracy class¹⁾²⁾		0.03	C3		C5
Min.dead load		0
Rated output		2.0±0.002 mV/V
Zero balance		±1% of Emax
Y-value		6000	10000		10000
Repeatability error		＜±0.015% of AL³⁾	＜±0.010% of AL		＜±0.006% of AL
Creep; 30 minute		＜±0.030% of AL	＜±0.017% of AL		＜±0.010% of AL
Min. dead load output return (DR); 30 min		＜±0.030% of AL	＜±0.017% of AL		＜±0.010% of AL
Temp. effect on	Min. dead load output	＜±0.0023% of AL	＜±0.0014% of AL		＜±0.0014% of AL
	Rated output ²⁾	＜±0.0020% of AL	＜±0.0012% of AL		＜±0.0007% of AL
Temperature range	Compensated	-10–40 ℃
	Operating	-40–65 ℃
	Safe storage	-40–80 ℃
Excitation voltage	Recommended	5–15V AC/DC
	Maximum	15V AC/DC
Terminal resistance	Excitation	385±5 Ω
	Output	350±3 Ω
Insulation resistance @50VDC		＞ 5000 MΩ
Breakdown voltage		＞ 500V AC
Seal type / lP rating		Laser welding/ IP68
Load limit	Safe	150% of Emax
	Ultimate	300% of Emax
Material	Spring element	Alloy steel nickel plating / stainless steel electrolytic polishing
	Cable	⌀6.5; 4-wire; PVC
Cable length		5 m
Weight;nominal value		0.5–3 ton	5–7.5 ton		10 ton
		2.2kg	3.8 kg		8kg
Fatigue life		＞ 1000000 cycles @Emax
Deflection at Emax;approx		＜ 0.5 mm
Barometric pressure effect on Zero Output		＜ 1.0 Vmin/kPa
Mounting bolts	Size/ Grade	M12 / 8.8	M14 / 8.8	M18 / 10.9	M27 / 10.9
	Recommended Torde	98 N.m	120 N.m	275 N.m	700 N.m

Notes:

1) Error due to the combined effect of non-linearity and hysteresis
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL= Applied Load

Feature

Self-Stabilizing Compression Head: ATO load cell module ensures accurate force transmission and excellent repeatability for reliable dynamic weighing.
Horizontal Restraint Design: Effectively limits lateral displacement and reduces errors caused by side forces.
High-Strength 42CrMo Alloy Steel: Cantilever beam load cell module provides outstanding durability, wear resistance, and long service life in industrial environments.
Wide Operating Temperature: Stable performance from -40°C to +65°C in harsh working conditions.
Wide Capacity Range: Cantilever load cell module is available from 0.3 ton to 20 ton for various dynamic weighing applications.
Easy Installation & Maintenance: Modular structure simplifies setup, inspection, and routine maintenance.
Ideal for Dynamic Weighing Systems: Cantilever beam load cell weighing module is suitable for conveyors, roller tracks, channels, and automated production lines.

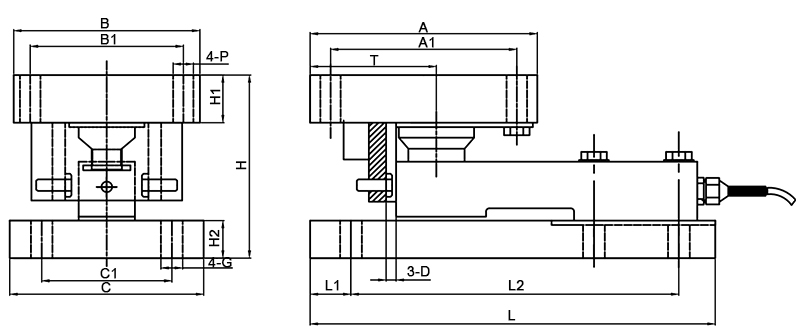

Size (unit: mm)

Cantilever beam load cell module size

Rated Capacity	L	L1	L2	A	A1	B	B1	C	C1	H	H1	H2	T	P	G	D
0.3–3 ton	286	32	226	150	124	112	102	112	80	106.9	28	23	96	M10	⌀13	1.6
5 ton	317.5	32	257	178	146	152	120	152	102	146.2	38	30	99	M16	⌀17	1.6
10 ton	360	32	295	184	152	154	122	154	106	215.7	45	45	105	M21	⌀21	3
15–20 ton	400	25	350	220	170	220	170	220	170	255.7	55	55	115	M24	⌀26	3

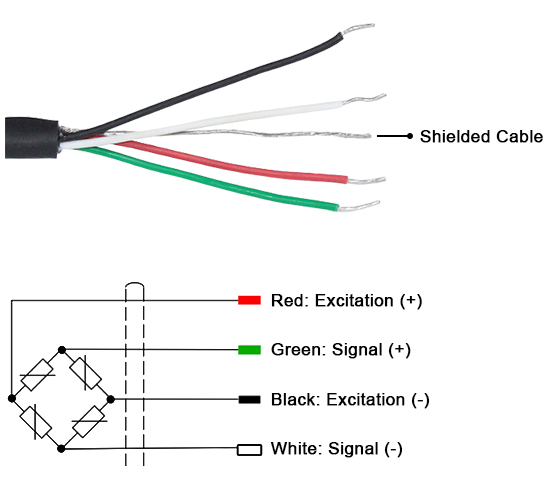

Wiring

Cantilever beam load cell module wiring

Tips: Why does the load cell module feature a self-stabilizing structure?

The self-stabilizing structure enables the load cell module to maintain accurate and consistent force transmission, even when minor misalignment, vibration, or load shifts occur during operation. Its self-aligning compression head automatically adjusts to ensure that the applied force is directed through the load cell's measuring axis, reducing errors caused by eccentric loading and side forces. This design improves weighing accuracy, enhances repeatability, minimizes mechanical stress on the load cell, and helps extend the service life of the weighing system. It is particularly valuable in dynamic weighing applications such as conveyors, roller tracks, and automated production lines where stable and reliable measurements are essential.

Existing reviews of Cantilever Beam Load Cell Module, 2 ton/5 ton/10 ton/20 ton

Reliable Performance on Our Conveyor System

The load cell module has been working reliably on our conveyor system. The self-stabilizing loading head made installation easier, and the sturdy construction has held up well under continuous use. Its performance has also been consistent during dynamic weighing.

From: Lori | Date: 24/08/2026
