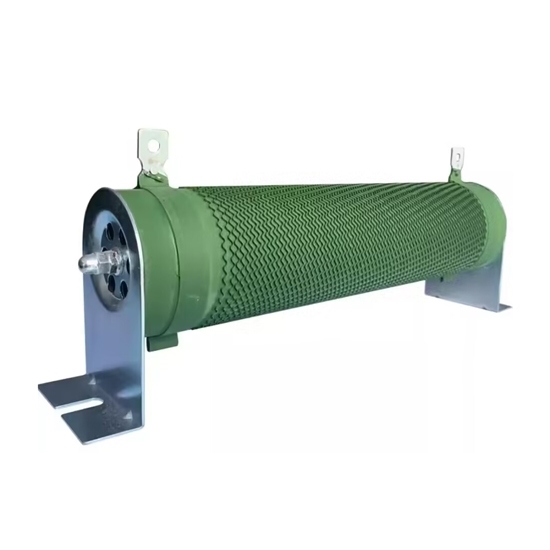

Wire Wound Ceramic Braking Resistor

5 out of 5 based on 4 reviews | Write a review

$51.54

Ceramic braking resistor (wire wound resistor) uses high temperature resistant mullite porcelain tube as the winding base, 50W~6000W rated power for selection, optional resistance in 1Ω~3000Ω. Dielectric voltage reaches AC2.5kV/1min 50Hz. It adopts high temperature resistant, flame retardant and insulating inorganic coating to effectively protect the resistance wire from oxidation, long service life and affordable price.

Rated Power (W) *
Resistance Selection (Ω) *

SKU: ATO-WWR-56

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Dimensions

Features

Rated power can be up to 6000W, resistance can be up to 3000Ω.
Inorganic coating is flame-retardant, strong overload capacity, can withstand 10 times the rated power within 5 seconds.
Vertical corrugated structure, low parasitic inductance, high resistance with flat wound.

Specification

Model	ATO-WWR-56
Tolerance	±5%, ±1% available
Max.Work Voltage	(P*R)^1/2 V
Temperature Coefficient	400 PPM/℃
Short Time Overload	5xPn (rated power) in 5 seconds
Dielectric Voltage	AC2.5kV/1min 50Hz
Insulation Resistance	DC500V, R≥100MΩ
Certification	CE, RoHS
Terminal Strength	200N 30s, no damage
Operating Temperature Range	-25℃~+225℃

Derating Curve Diagram of Ceramic Braking Resistor

Temp. Rise Curve Diagram of Ceramic Braking Resistor

Tips: Classification and characteristics of wire wound ceramic braking resistors.

Vertical corrugated wire-wound ceramic resistor: larger heat dissipation area, can withstand higher pulse voltage, short hedging time, but strong adaptability in use environment with high pulse voltage. By adopting the reverse double winding method, non-inductive winding resistance can be manufactured, and the parasitic inductance is effectively reduced.
Sliding adjustable ceramic resistor: Zero to maximum resistance can be adjusted. By sliding the middle slider, an adjustable resistance is obtained to control the output of circuit current.
Flat-wound ceramic resistor: High-resistance resistors, resistances up to 20000 ohms, which is suitable for high-resistance environments.

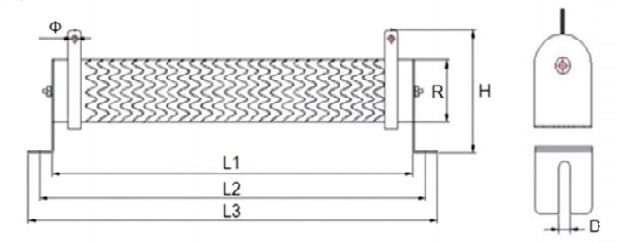

Wire Wound Ceramic Braking Resistor Dimensions

Rated Power (@25℃) W	Resistance Range Ω	Dimension (mm)
Rated Power (@25℃) W	Resistance Range Ω	L₁ (±3)	L₂ (±3)	L₃ (±3)	R (±2)	H (±2)	Φ (±0.5)	D (±0.5)
50	0.1~2700	90	132	146	28	52	4.5	6
100	0.1~2700	167	202	224	28	65	4.5	6
150	0.1~2700	215	257	271	28	65	4.5	6
200	0.1~2700	267	302	324	28	65	4.5	6
300	0.1~2700	267	302	342	40	92	6	6
400	0.1~2700	330	362	378	40	95	6	6
500	0.1~2700	330	356	375	50	98	6.5	7
800	0.1~2700	430	450	462	50	120	6	7.5
1000	0.1~2700	430	455	482	60	120	6.5	8.5
1200	0.1~2700	360	393	422	70	135	6.5	8.5
1500	0.1~2700	360	393	422	70	135	6.5	8.5
2000	0.1~2700	430	463	492	70	135	6.5	8.5
2500	0.1~2700	430	473	492	80	145	6.5	8.5
3000	0.1~2700	600	633	662	70	135	6.5	8.5
3500	0.1~2700	430	455	490	90	150	8	9
4000	0.1~2700	430	473	510	100	156	8	9
5000	0.1~2700	500	543	580	100	156	8	9
6000	0.1~2700	540	583	620	100	156	8	9

Existing reviews of Wire Wound Ceramic Braking Resistor

Easy to install and maintain

I recently purchased a wire wound ceramic braking resistor for use in my electric motor drive, and I have been extremely satisfied with its performance. The resistor is well-built and feels very durable, and it has been able to handle the high amounts of energy generated during braking with ease.

From: Borg | Date: 14/03/2023

Was this review helpful? Yes No (0/0)

wire wound braking resistor

what is the percent of cyclic duration factor(cdf) for plotting the above "time vs temperature" graph

From: karthika | Date: 20/06/2022

Was this review helpful? Yes No (0/0)

Wire Wound Ceramic Braking Resistor

Hello
How much temperature does the coating on the piece withstand?

From: farbod | Date: 27/01/2022

Was this review helpful? Yes No (1/0)

ATO Responded

The resistance is 450°C when it is not working, and 350°C when it is working steadily.

Buy ceramic brake resistors for electric trains

Hello
Used in electric trains?
Documentation with photos please

From: farbod | Date: 18/01/2022

Was this review helpful? Yes No (0/0)

ATO Responded

Sorry, I don't understand what electric train you are talking about. Please email our technical staff and describe your needs carefully.
