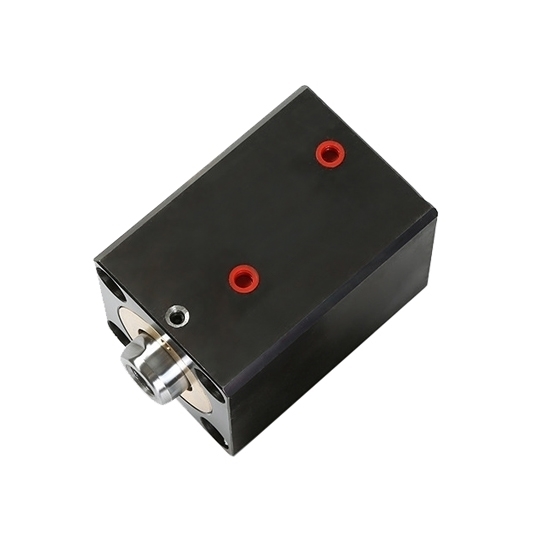

    Double Acting Compact Hydraulic Cylinder, 3/4 inch (20mm) Stroke

    $288.29
    Favorable price compact hydraulic cylinder for sale with 3/4 inch (20mm) stroke, optional bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This double acting hydraulic cylinder is a mechanical device that converts hydraulic power into linear motion, widely used in manufacturing, automotive, and aerospace, where space constraints demand a compact yet powerful solution.
    *
    SKU: ATO-CHC-20MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    20mm stroke double acting compact hydraulic cylinders offer a space-efficient solution for converting fluid power into linear motion, finding application in diverse industries where limited space and high performance are crucial considerations.

    Specification

    Model ATO-CX-SD2020 ATO-CX-SD2520 ATO-CX-SD3220 ATO-CX-SD4020 ATO-CX-SD5020 ATO-CX-SD6320 ATO-CX-SD8020 ATO-CX-SD10020
    Bore Diameter 20mm 25mm 32mm 40mm 50mm 63mm 80mm 100mm
    Stroke 3/4 inch (20mm)
    Working Fluid Hydraulic Oil
    Working Pressure 3~140kg·f/cm
    Pressure Resistant 210kg·f/cm
    Working Speed 8~100mm/sec
    Working Temperature -10~70℃

    Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    Compact hydraulic cylinder dimension

    Bore Diameter A B C CL D SW E F H K M N P1 P2 R PT
    φ20 51 43 8 6 12 10 44 30 5.5 5.6 9 M8*1.25*12D 22.5 11 5 1/8
    φ25 53 45 8 6 14 12 50 36 5.5 5.6 9 M10*1.5*15D 23 12 5 1/8
    φ32 64 54 10 7 20 17 62 47 6.5 6.8 11 M12*1.75*15D 28 14 10 1/4
    φ40 65 55 10 7 25 22 70 52 9 9 14 M16*2.0*20D 28 15 10 1/4
    φ50 71 60 11 8 30 27 80 58 11 11 18 M20*2.5*25D 29.5 18 10 1/4
    φ63 80 67 13 10 35 32 94 69 13 13 20 M27*3.0*35D 61 20 10 3/8
    φ80 95 78 17 14 40 35 114 86 15 15 22 M30*3.5*35D 66 27 15 3/8
    φ100 99 82 17 14 45 40 134 102 17.5 18 26 M36*4.0*40D 36 27 15 3/8

    Tips: What are the advantages of using compact hydraulic cylinders?

    Compact hydraulic cylinders offer several advantages in various applications. Firstly, their small size and lightweight design make them ideal for use in tight spaces where traditional cylinders may not fit. This enhances flexibility in system design. Additionally, compact hydraulic cylinders provide high force in a confined space, making them suitable for applications with size constraints.

    Their reduced weight contributes to energy efficiency and easier handling during installation and maintenance. The compact design also results in lower inertia, allowing for faster response times and improved dynamic performance. These cylinders often feature precision engineering, ensuring precise control and positioning accuracy. Furthermore, compact hydraulic cylinders are known for their durability and reliability, contributing to longer service life and reduced maintenance costs. Overall, the advantages of compact hydraulic cylinders include space efficiency, high force output, energy efficiency, and enhanced performance in a wide range of applications.
