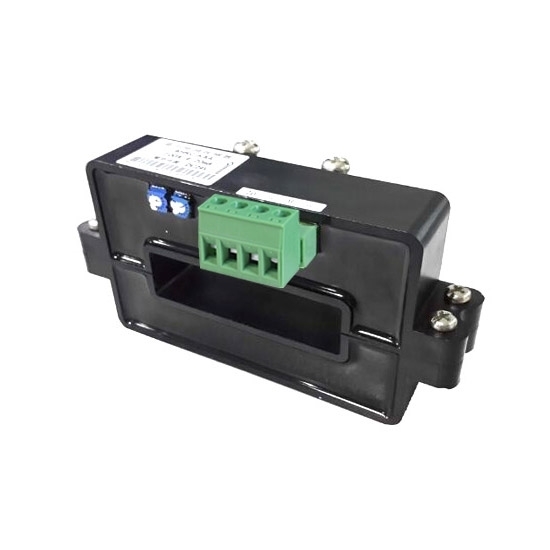

    Non-invasive DC Current Sensor 400A/1000A/2000A/10000A to 20000A

    5 out of 5 based on 2 reviews | Write a review
    Hall effect DC current sensor is non-invasive current sensors, with split-core structure, 1ms fast response time, 1.0%FS accuracy, 4-20mA output signal, 12V/24V power supply, strong anti-interference capacity. Open loop current sensors are widely used for DC current monitoring of battery/power inverter/UPS/solar power supply.
    SKU: ATO-CUS-DC20000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DC current sensor has measuring range of 400A/500A/1000A/2000A/3000A/5000A/8000A/10000A to 20000A.


    Shipping weight 1kg
    Hole size * 64*16mm 132*52mm
    Measuring range of input current * DC 0-400A ~ 0-2000A DC 0-2000A ~ 0-20000A
    Output signal DC 4-20mA
    Zero offset current ±0.05mA
    Offset current drift ±0.04mA/℃
    Linearity ≤0.2%FS
    Power supply * DC 24V±10% or DC 12V±10%
    Accuracy 1.0%F.S.
    Response time ≤1ms
    Withstand voltage AC 2500V (between input, output and power supply)
    Work temperature -25~+70℃
    Storage temperature -40~+85℃
    Humidity ≤95%RH (no dew formation, no corrosive gas)
    Elevation ≤3500m
    Measuring method Split-core type
    Installation Screw fixation

    400A to 20000A DC current sensor dimensional diagram:
    DC current sensor 400A/1000A/2000A/10000A to 20000A dimension

    Model Dimension (mm)
    W H D a
    e N (Mounting)
    ATO-AHKC-KAA 127 63 25 64 16 30
    ATO-AHKC-HBAA 204 111.5 29 132 52 48*2

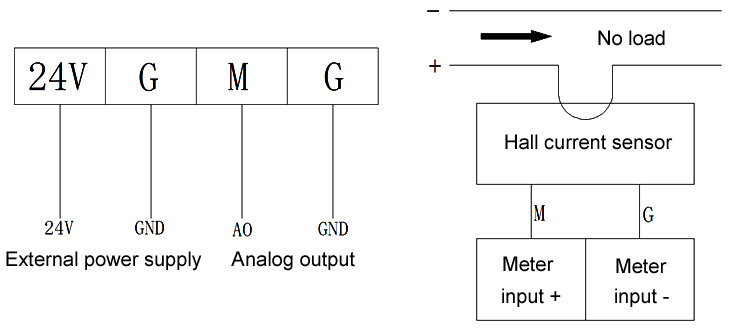

    400A to 20000A DC current sensor wiring diagram:
    DC current sensor 400A/1000A/2000A/10000A to 20000A wiring diagram
    Tips: 5 attentions for AC/DC current sensor

    1. The current sensor must properly select different measuring range based on the rated effective value of the current under test. The long time excess of the rated current will damage the last stage power amplifier tube (refer to the magnetic compensation current sensor). In general, the time of duration of double overload current must not exceed 1 minute.
    2. AC/DC current sensor with insulation voltage resistance of 3KV can work for a long time in 1KV and below AC systems and 1.5KV and below DC systems, current sensor with 6KV can work for a long time in the 2KV and below AC systems and 2.5KV and below DC systems, be careful not to use under overvoltage.
    3. When applying high-current DC system, it is worth noting for the core produces a larger residual magnetism which caused by the power supply open circuit or fault. Residual magnetism affects accuracy. The method of demagnetization is to connect an alternating current and gradually reduce the value of the original current without connecting a power supply.
    4. The current sensor's ability to resist external magnetic field is: The distance of two 2000A current sensors is 5~10cm, the current value is more than twice original current, the resulting magnetic field interference can be resisted. When the three-phase large current sensor is wiring, the interphase distance should be greater than 5~10cm.
    5. The primary coil temperature must not exceed 85 ℃, which is determined by the characteristics of ABS Engineering Plastics. High-temperature plastic for the shell can be customized.
    Existing reviews of Non-invasive DC Current Sensor 400A/1000A/2000A/10000A to 20000A
    Allowable range of 2000A current sensor
    For your current sensor of 2000A range, how much over-range is permitted before clipping. We are hoping for 2400A (120% )?
    From: Cate | Date: 08/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, up to 2400A is okay.
    Perfect DC current sensor
    For your DC current sensor, which panel meter would you suggest?
    From: Dutton | Date: 23/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We need to know the required current sensor measuring range, so can we recommend the most suited panel meter?
