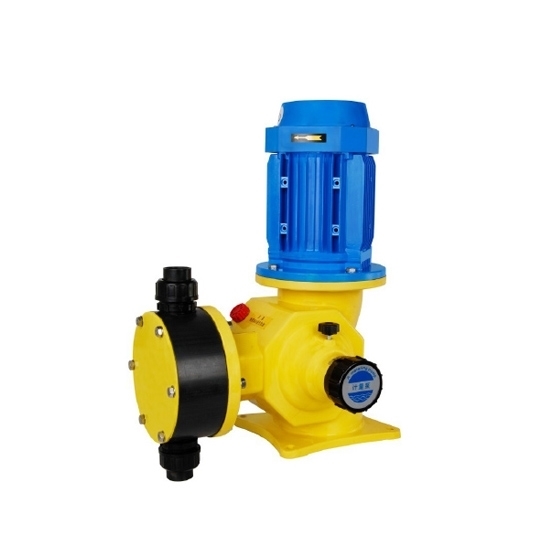

Diaphragm Metering Pump, 650/1000/1800 L/h Flow

$2,745.11

High quality dosing pump for sale online. The mechanical diaphragm metering pump is equipped with 650/850/1000/1400/1800 L/h flow, PVC pump head and 380V 50Hz working voltage and 1.1kW/1.5kW high power, designed for controlled injection of liquid into various systems.

Flow *

SKU: ATO-DJ-D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This metering pump is a mechanical diaphragm dosing pump driven by a motor through a worm gear, suitable for fluid metering in low-pressure applications. PVC pump head, 380V 50Hz working voltage and 1.1kW/1.5kW high power, 650/850/1000/1400/1800 L/h flow are available.

Specifications

Model	Voltage	Pump Head Material	Flow	Pressure	Pump Stroke	Power	Inlet & Outlet Diameter
ATO-DJ-D-650/0.6	380V 50Hz	PVC	650 L/h	0.7Mpa	96 min^-1	1.1kW	DN25
ATO-DJ-D-850/0.5			85 0L/h	0.5Mpa	144 min^-1
ATO-DJ-D-1000/0.4			1000 L/h	0.4Mpa	144 min^-1
ATO-DJ-D-1400/0.3			1400 L/h	0.3Mpa	144 min^-1	1.5kW	DN50
ATO-DJ-D-1800/0.3			1800 L/h	0.3Mpa	144 min^-1	1.5kW	DN50

Note:

Pump head 304, 316, PTFE material
Motor voltage 420V, 220V, 110V
Explosion-proof motor, variable frequency motor

All of the above can be customized, please contact us.

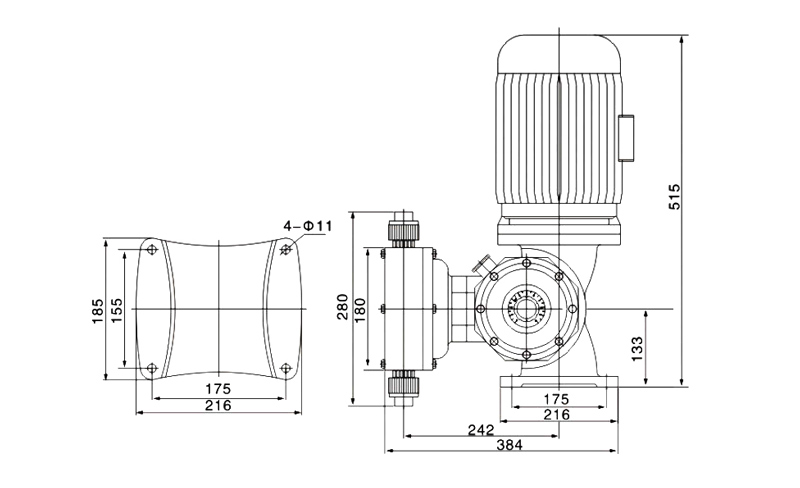

Dimensions (Unit: mm)

Diaphragm metering pump dimension

Tips: How to choose a diaphragm metering pump?

Chemical Type: Some liquids are corrosive, select compatible diaphragm metering pump
Flow Rate (L/h): How much liquid you need to dose
Pressure (bar): Must overcome system backpressure, pump max pressure>system pressure
Control Method: Manual or automatic dosing control
Material Must resist chemical and temperature
Power Supply: Match your power source
Accuracy: Needed for precise dosing
