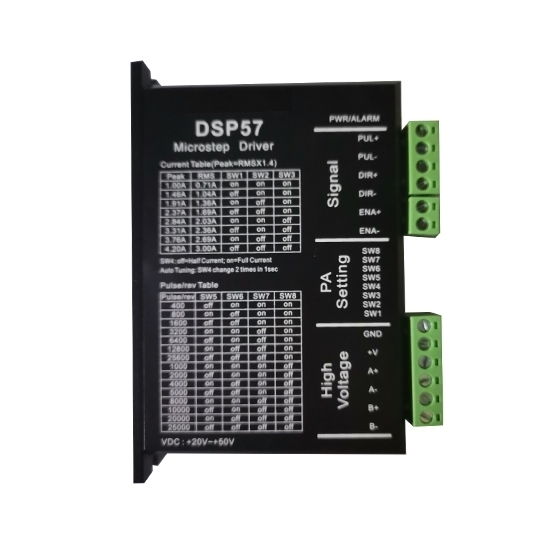

Digital Stepper Driver 1-4.2A 20-50V DC for Nema 17, 23 Stepper Motor

5 out of 5 based on 1 reviews | Write a review
$105.72
ATODSP57 is digital 2-phase stepper motor driver, using the latest 32 dsp technology, advanced digital filtering technique, anti-resonance technology, precision current control technology and vector control technology. Capable of driving Nema 17, 23 closed-loop hybrid stepper motors.
*
SKU: ATO-STEP-D2A2050
30-day Returns
Free Shipping
Delivery date: 6-12 days

2-phase digital stepper driver, 20-50V DC, 1-4.2A for Nema 17, 23 2 phase stepper motor, manufacturer direct sale.

Features:

  • Low motor vibration, low noise, no loss of step.
  • Optical isolation, difference signal input.
  • Automatic motor parameter identification.
  • Vector control, ultra-low heating.
  • Offer 12-24v control signal interface.
  • Step and direction control.
  • Fast response, no delay and zero setting time.
  • Much lower cost than traditional servo systems.
  • No torque reservation.

Specifications

Basics Information
Model ATODSP57
Size 118 x 75.5 x 34 mm
Phase 2
Material Stainless Steel
Mounting Hole Distance 112 mm
Max Input Frequency 200 KHz
Input Voltage Range 20-50V DC
Output Current 1-4.2 A
Control Mode Step & Direction
Function Description
Functions Operation Instructions
Signal Interface PUL PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
DIR DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
ENA ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface A A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
B B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light 1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

Switch of Options

Peak Output Current REF Output Current SW1 SW2 SW3
1A 0.71A ON ON ON
1.46A 2.86A OFF ON ON
1.91A 3.43A ON OFF ON
2.37A 4A OFF OFF ON
3.84A 4.57A ON ON OFF
3.31A 5.14A OFF ON OFF
3.76A 5.71A ON OFF OFF
4.2A 3A OFF OFF OFF

Micro Step Selection

PUL/REV SW5 SW6 SW7 SW8
400 OFF ON ON ON
800 ON OFF ON ON
1600 OFF OFF ON ON
3200 ON ON OFF ON
6400 OFF ON OFF ON
12800 ON OFF OFF ON
25600 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OFF ON OFF ON
20000 ON OFF OFF OFF
25000 OFF OFF OFF OFF

Driver Wiring Diagram
DSP57 driver wiring diagram
Driver Wiring Diagram
driver circuit
Installation Size (Unit: mm)
dsp57 dimension

Details

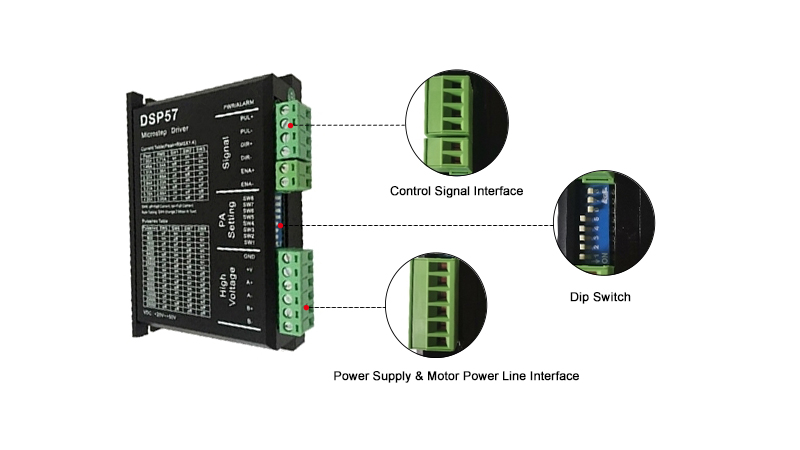

Digital Stepper Driver 1-4.2A 20 50V DC for Nema 17 Details

Tips: The role of stepper driver’s subdivision
Major advantages of subdivided driver: Low frequency oscillation of motor is completely eliminated. Low frequency oscillation is the intrinsic characteristic of the stepper motor (especially VR motor). However, subdivision is the only way to eliminate it. If your stepper motor has to work at resonance region (e.g.: run arc) sometimes, it is the only choice to choose subdivided driver to increase the output torque of the motor. Especially for 3-phse VR motor, its torque is increased by about 30-40% when not subdivided. Thus, the resolution of the motor is increased. With the stepping angle reduced and uniformity of the step pitch increased, the resolution of the motor is self-evident. The main role of stepper motor driver’s subdivision is to enhance the accuracy of the stepper motor.

Existing reviews of Digital Stepper Driver 1-4.2A 20-50V DC for Nema 17, 23 Stepper Motor
Wonderful digital stepper driver
I'm very happy with this digital stepper driver. I bought three nema23 digital stepper drivers, two to drive the X axis and one to drive the Y axis. It is very easy to use. So I want to recommend it to everyone.
From: Celery | Date: 01/09/2021
Was this review helpful? Yes No (0/0)
