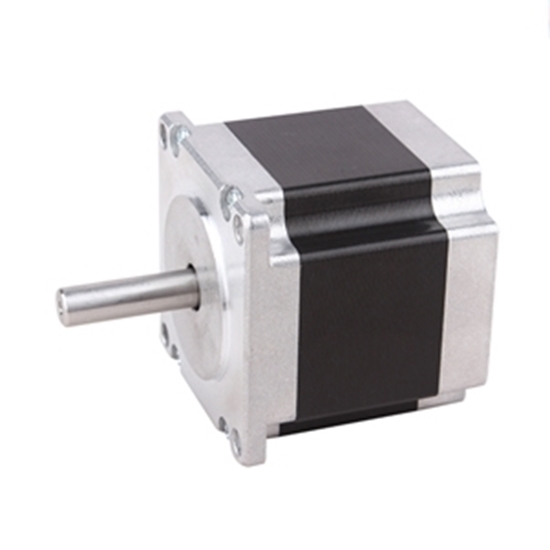

    6-wire Nema 23 Stepper Motor, 2 phase, 2A, 1.8 degree

    5 out of 5 based on 1 reviews | Write a review
    This is high quality Nema 23 stepper motor with 1.8 deg. step angle(200 steps/rev). Each phase draws current 2A, allowing for a holding torque of 0.72Nm. Motor type is Hybrid Stepper Motor. Direct sales by manufacturer.
    SKU: ATO-STEP-512302
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 23 hybrid Stepper motor, 0.72Nm in 51mm, 1.8 degree, manufacturer direct sale.


    Electrical Specification Model ATO-57STH51-2006
    Matched Driver Model ATODSP57(Click it to see more info)
    Step Angle 1.8°
    Holding Torque 0.72Nm
    Rated Current/phase 2A
    Phase Resistance 1.65Ω
    Inductance 2.2mH
    Rotor Inertia 230g-cm2
    Physical Specification Frame Size 57 x 57mm
    Length 51mm
    Shaft Diameter Φ6.35mm
    Shaft Length 19mm
    Motor Leads 6
    Weight 0.59kg
    Technical Parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max. (rated current, 2 phase on)
    Ambient Temperature -20℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.02Max. 450g
    Shaft Axial Play 0.08Max. 450g
    Quality Assurance Warranty Period 12 months
    Certificate CE, ROHs, ISO/SGS9001

    Nema 23 Stepper Motor Dimensions: (Unit=mm)

    NEMA 23 hybrid stepper motor dimensionsL Max=51mm

    Nema 23 Stepper Motor Wiring Diagram

    NEMA 23 hybrid stepper motor wiring diagram

    Tips: Stepper motor for numerical control machine

    The stepper motor is widely applied into all fields, specially in each field of production practice. Meanwhile, it is maximally applied into manufacturing of CNC machine tools. Without converting A/D for the stepper motor, the digital pulse signal can be directly transformed into angular displacement. Therefore, it is considered to the ideal actuator of numerically-controlled machine tool. Due to the small output torque of the stepper motor at earlier stage, the requirement cannot be satisfied. It constitutes hydraulic pulse motor with hydraulic torque amplifier during the usage.
    Along with the technological development of stepper motor, it has been able to be applied into the system alone, becoming the irreplaceable actuator. For example, the stepper motor is used as CNC milling machine to drive the motor of servo mechanism. In this application, stepper motor can complete two jobs at the same time, namely conveying torque and information. It also can be used as the drive motor of CNC worm grinding wheel edge grinding machine. Besides, applied into numerically-controlled machine tool, the stepper motor also can be applied into other machines, like the motor of automatic feeder, general soft disc driver, printer and mapper.
